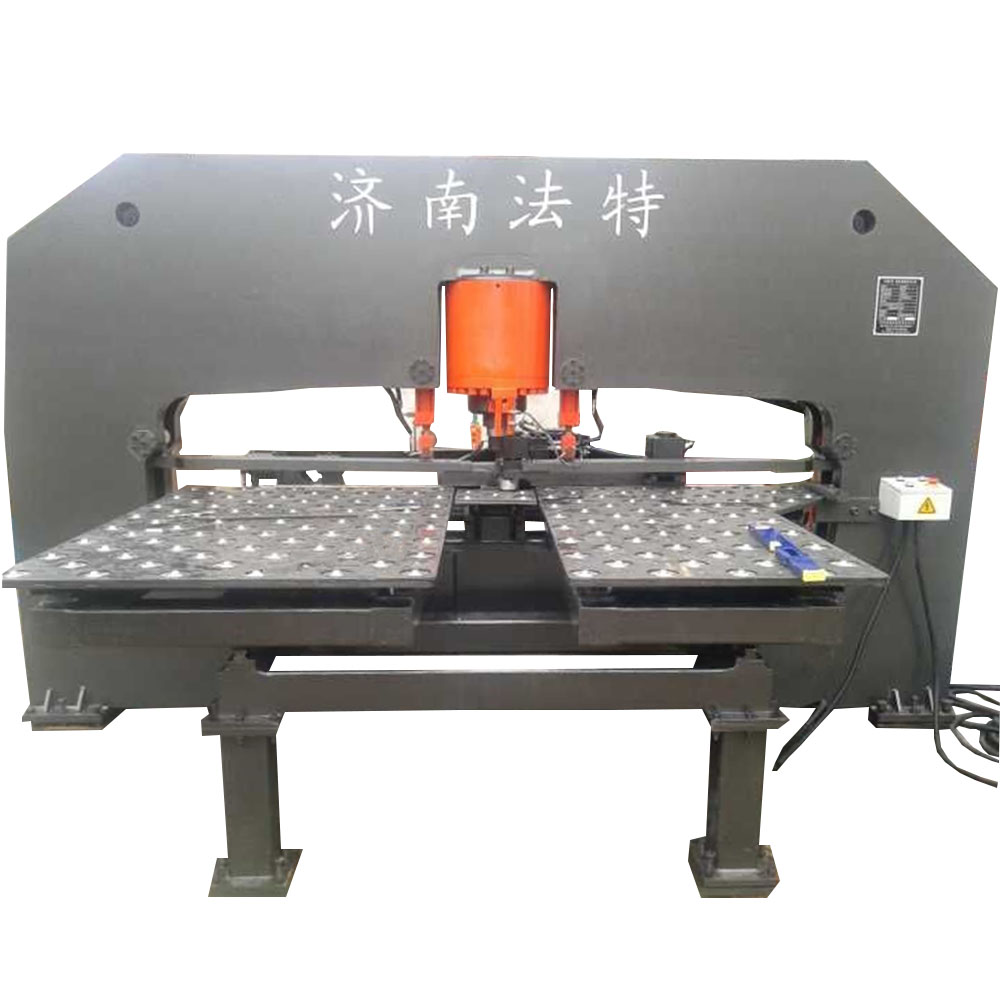

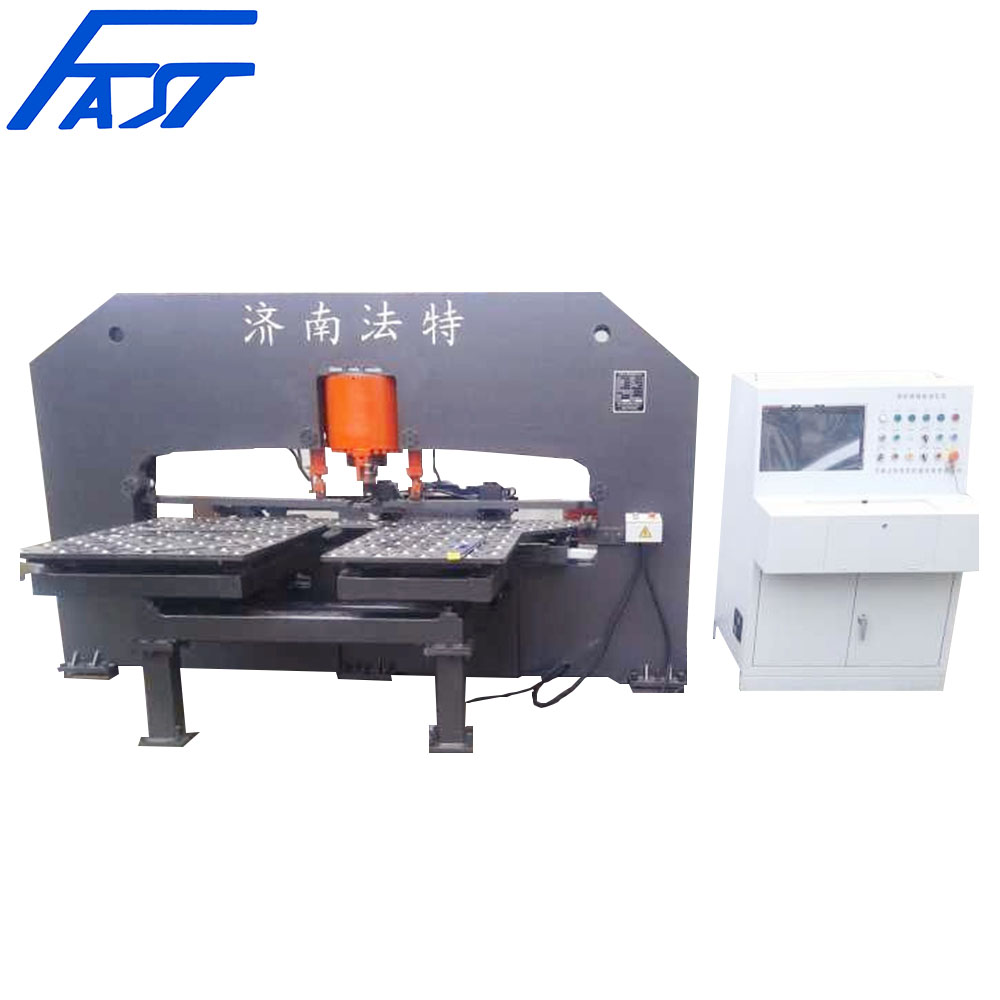

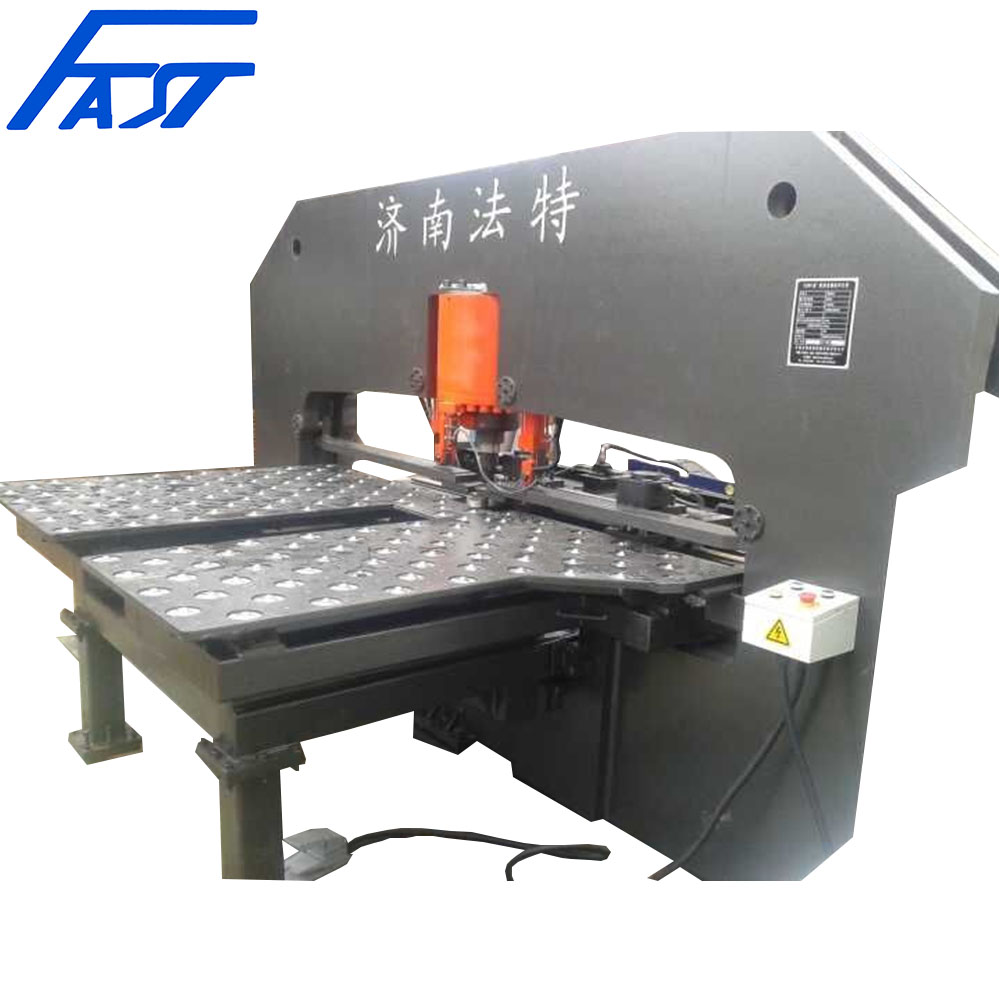

CJ SERIES CNC CONNECING PLATE PUNCHING AND MARKING UNIT
  • CJ SERIES CNC CONNECING PLATE PUNCHING AND MARKING UNIT
CJ SERIES CNC CONNECING PLATE PUNCHING AND MARKING UNIT

Category:PLATE PROCESSING

Product specifications:

  • Model

    CJ80

    CJ103

    CJ123

    CJ201/203

    CJ301

    Punching force(KN)

    800

    1000

    1200

    2000

    3000

    Marking force (KN)

    800

    1000

    1200

    none

    Thickness of workpiece(mm )

    16mm

    20mm

    20-40mm

    20-50mm

    Max size of workpiece (mm)

    4000*1800

    1500*800

    1500*800

    1500*1500

    1850*1850

    Quantity of die(piece)

    1-7)(customer decide)

    3

    3

    one or three

    1

    Max punching diameter (mm )

    according to the thickness of plate

    32

    40

    50

    60

    Min distance between holes (mm)

    20

    25

    30

    25-35,hole diameter≤37mm

    35-50,37>hole diameter≥60mm

    Marking characters(piece)

    14

    14 or 18

    14 or 18

    None

    Size of character L*W*H(mm)

    14*10*12

    None

    According with GB2694-2003

    Processing precision

    Technical Characteristics:

    Integrated machine with mechanical,electrical and hydraulic systems;  PLC control and two axes servo motor drive;

    Diagrammatic display of workpiece;

    Self-diagnostic function;

    Easy programming and connectable with data generated directly from copying the specimen.

    Advantages:

    Modular assembling for main functional parts, easy maintenance;

    Punching, printing and drilling operations on the same plates;

    Efficient drilling operation by fast approach ,sloe working and fast return program;

    On programming, either input punching diameter, location and quantity of workpiece, or network locally with design department to interchange data base;

    Low labor working strength and high precision of workpieces.

    Main technical specification
