CNC Band-Cutting processing Line
  • CNC Band-Cutting processing Line
CNC Band-Cutting processing Line

Category:STEEL STRUCTURE/STEREO GARAGE

Product specifications:

  • RC1730 Steel manipulator cutting line

    Usage of Machine:

    This machine is used for flexible cutting for three-dimensional space of all kinds of steel (U steel, T steel, angel steel, circular tube, rectangular tube). Raw material library contain GB workpiece, non-GB workpiece, cutting expand according to needs. Cutting groove various (constant angle, fixed point, fixed),suitable for steel structure, shipbuilding, oceaneering, pressure vessel, bridge, tower and cutting of construction machinery and other comprehensiveness structural engineering. Combined with workpiece graphic teaching and programming. Steel cutting robot, can finish process of plasma cutting off, groove, wedge holes.

    Composition of Machine:

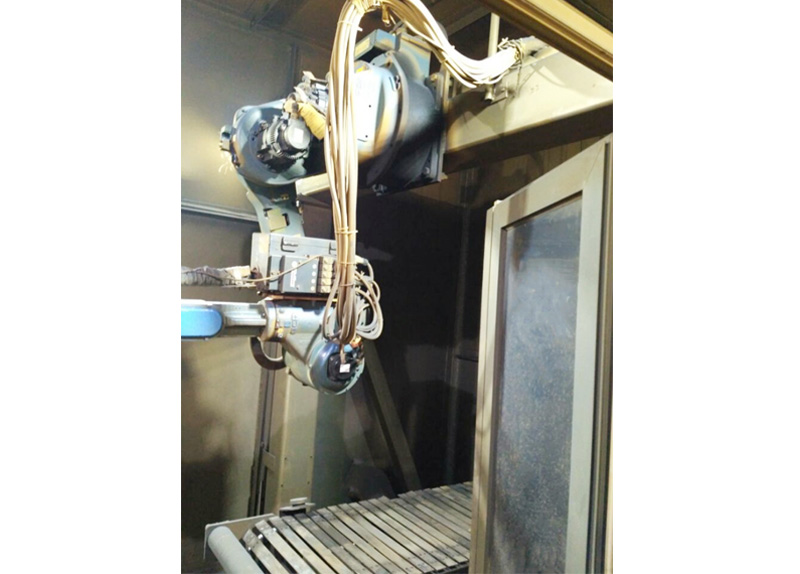

    The machine is composed of loading roller, CNC trolley, trolley roller, press positioning, manipulator (include fixed support) movable overturns laying-off roller, plasma cutting system, control system, cutting smoke purification system.

    Using USA hyperthermia HPR260XDplasma source, max current 260A,thickness 32mm,max cutting thickness 65mm.High flexible cable, with cable protection.CNC system using robot control system. off-line programming and change CAD files to cutting program directly.

    Specification

    RC1730

    Sectional range of steel cutting

    square tube

    60*80-400*400

    T steel

    200*100-320*132

    U steel

    65*40-320*90

    Angle steel

    63*63-200*125

    H beam

    100*100-580*300

    Length of steel cutting

    12 meters

    Plasma power

    Max current

    260A

    Thickness

    32mm

    Max cutting thickness

    65mm
