 Gantry Movable CNC 3D Machine
  •  Gantry Movable CNC 3D Machine
Gantry Movable CNC 3D Machine

Category:STEEL STRUCTURE/STEREO GARAGE

Product specifications:

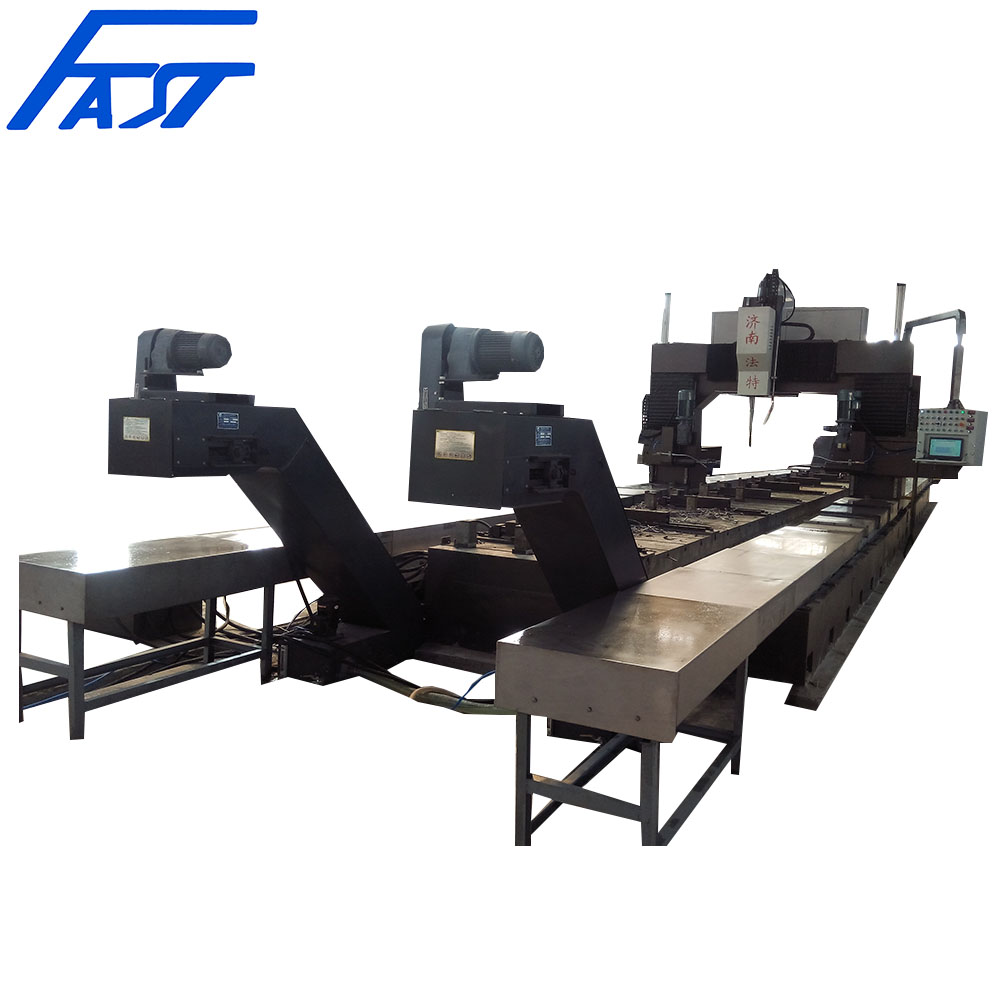

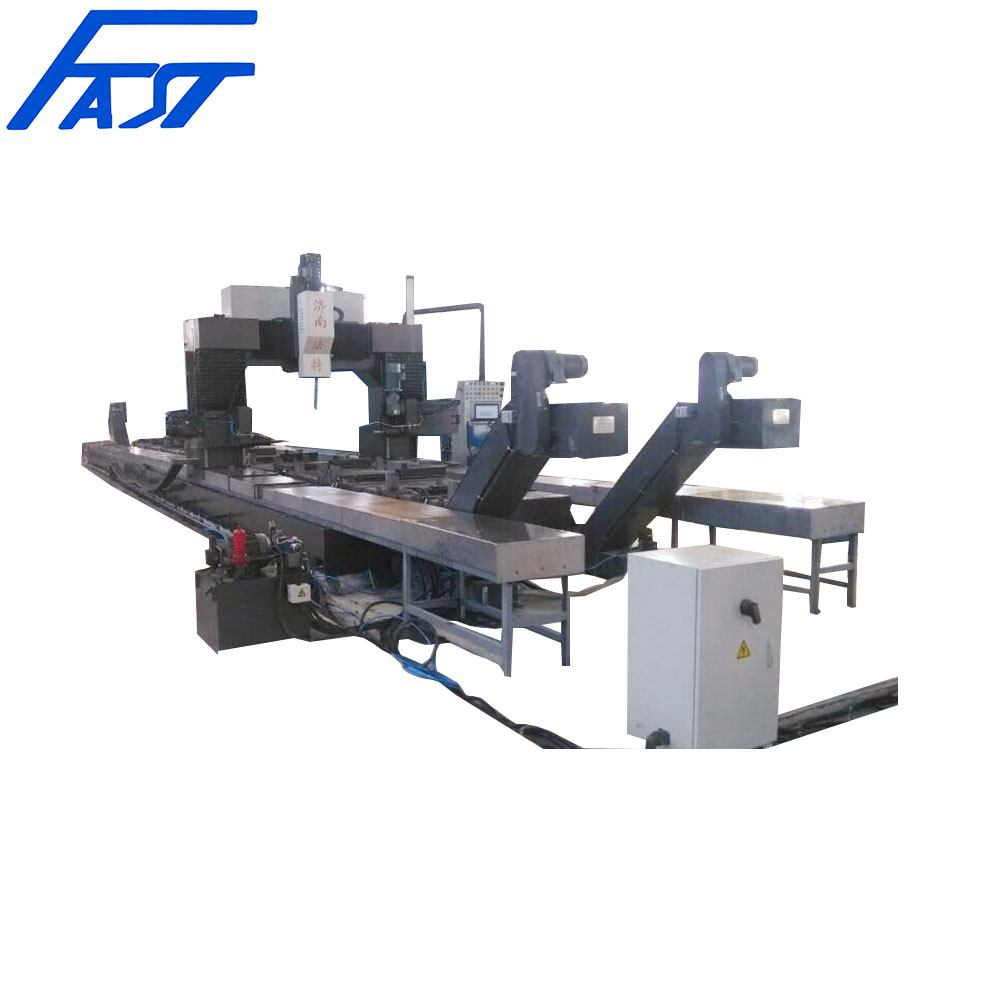

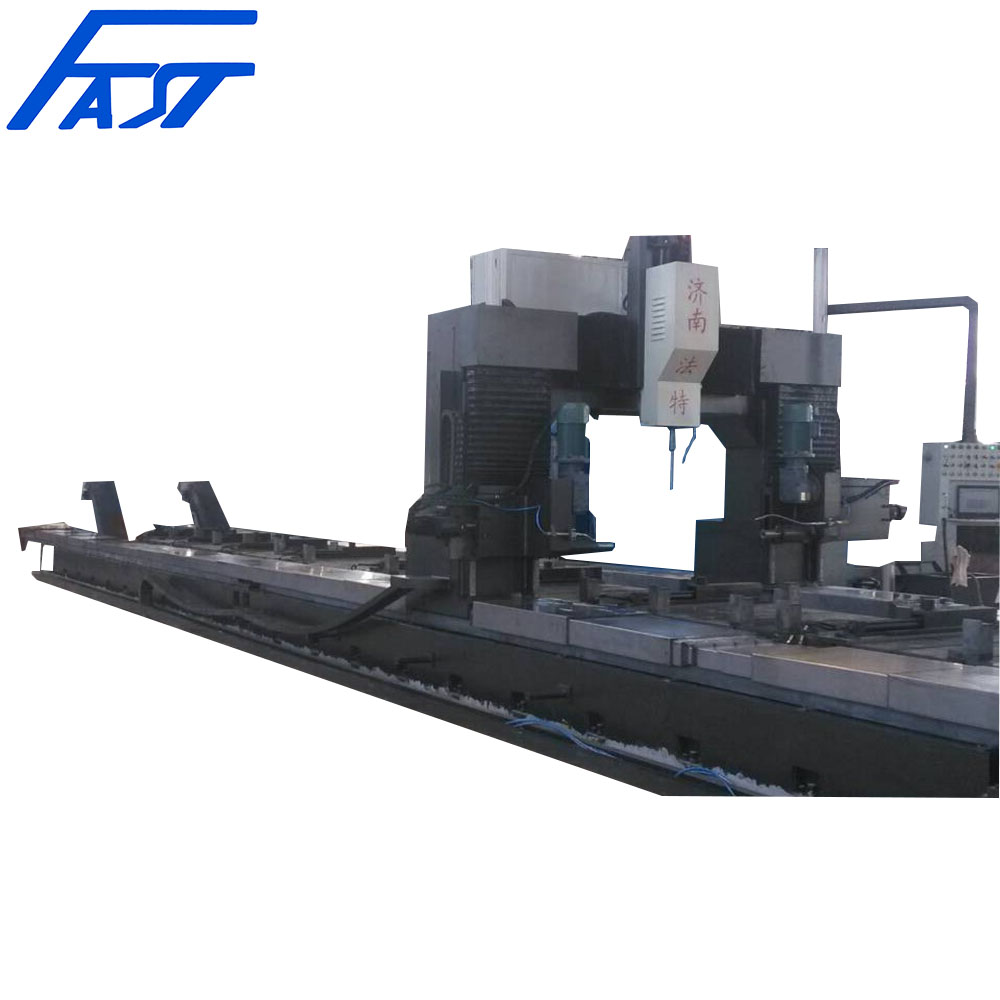

  • SWA Series Movable Gantry type CNC Beam Drilling Machine

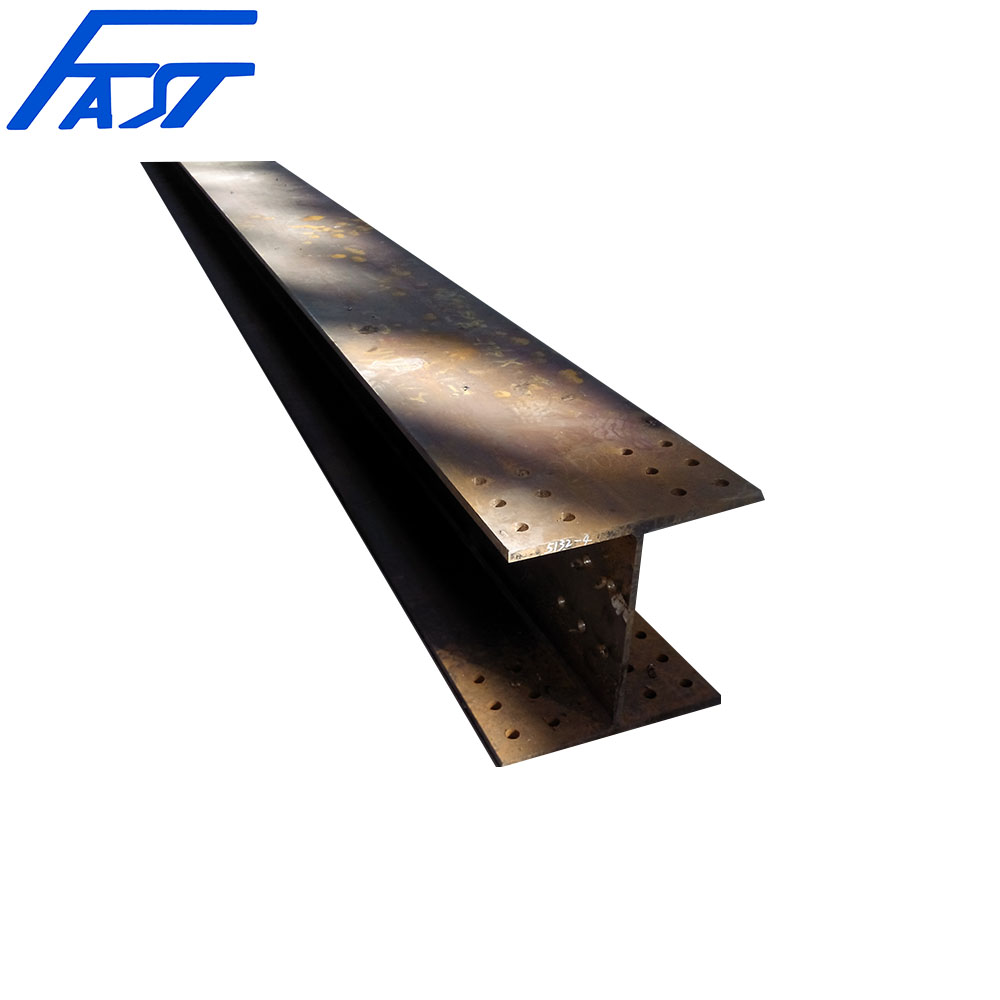

    Usage of the machine: This machine is mainly used for drilling of large size welding H-beam, also can be used for drilling of rectangle, U type, L type. It can finish drilling of holes on three sides of H-beam at once, with high working efficiency& high precision. It is of necessary quality guarantee equipment of related manufacturing industry.

    Main specifications

    Parameters

    Unit

    Parameter values

    Parameter of work piece

    Section(W×H)mm

    mm

    300×300—1000×1000

    Max length mm

    mm

    16000

    Max drilling thickness mm

    mm

    100

    Max weight of work piece t

    t

    30

    Spindle

    Quantity of spindle

    Piece

    3

    Motor power of spindle

    KW

    4×3

    Max drilling diameter mm

    mm

    φ40

    Drilling power head

    Morse taper

    Morse taper

    4#

    Power of servo motor

    Kw

    2KW×6

    Max movement speed m/min

    m/min

    6

    Work table

    Dimension(L×W×H)mm

    mm

    16500*1240*600

    Size of T slot

    mm

    28

    Material of work table

    High strength welding parts

    Longitudinal traverse

    Max stroke mm

    mm

    16000

    Servo motor power Kw

    Kw

    2×2

    Max traverse speed m/min

    m/min

    8

    Control system

    Control method

    Computer+PLC

    CNC axis

    PCS

    8

    Cooling system

    Cooling method

    Water cooling

    Motor power of cooling pump and quantity KW

    KW

    0.37X2

    Clip removal system

    Power of clip removal equipment

    Kw

    3X44 sets

    Total power

    KW

    About 35

    Total weight

    kg

    Approx. 46000

    Outline dimension

    L×W×H(without electrical cabinet)

    mm

    17000×4160×3000
