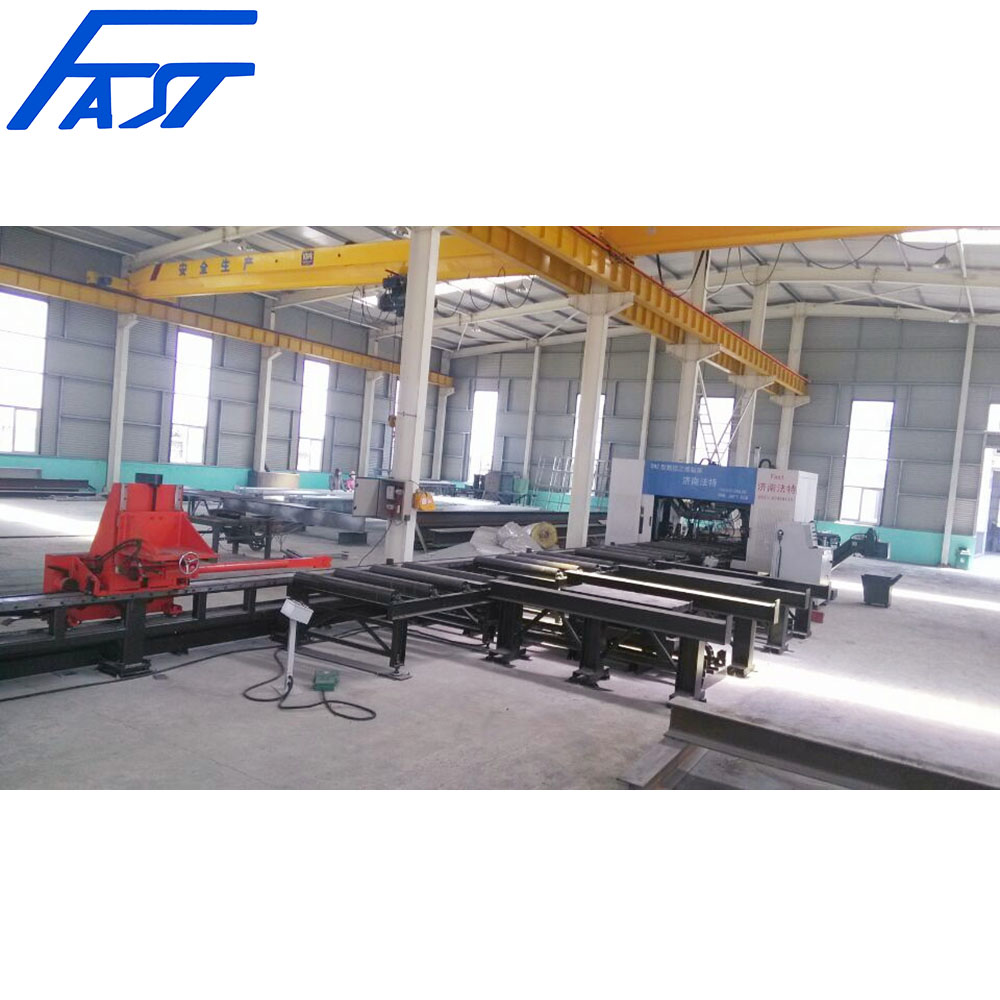

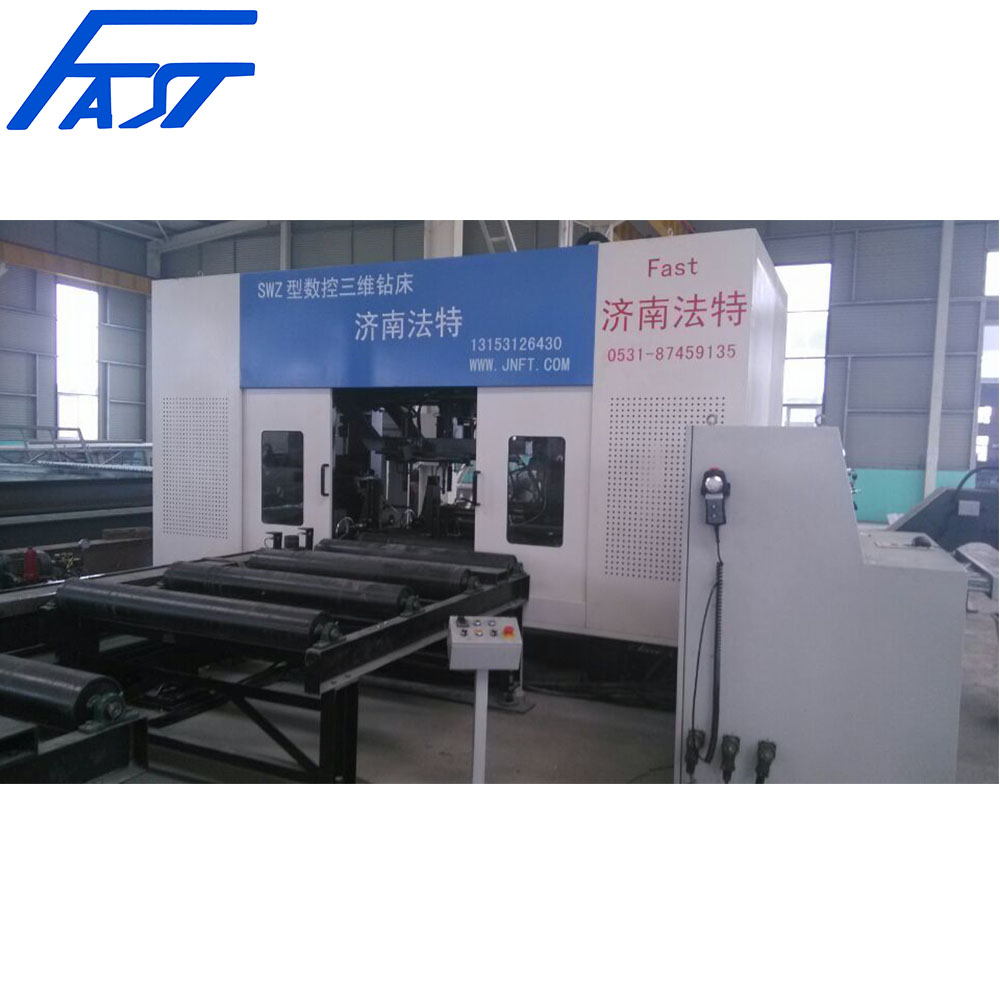

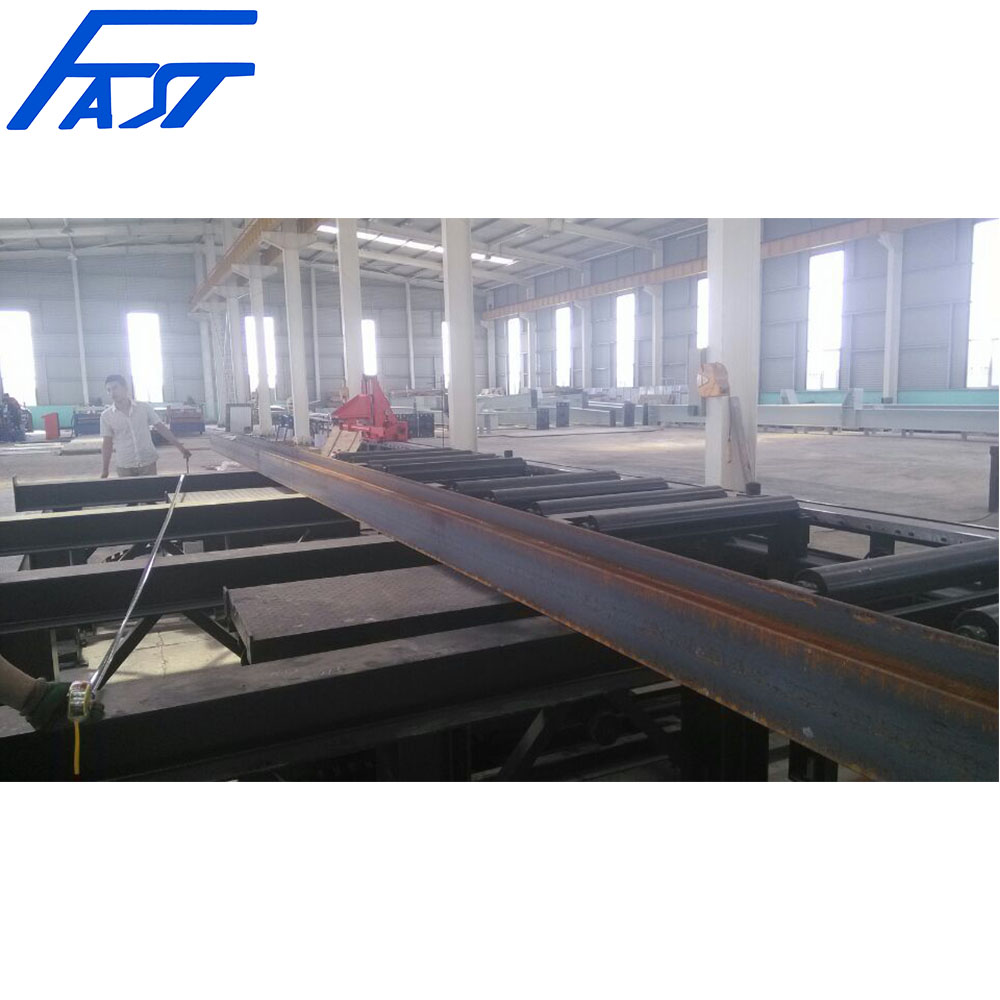

SWZ1000X500 CNC Teihedral Beam Drilling Machine Main Technical Data(Trolley feeding)
  • SWZ1000X500 CNC Teihedral Beam Drilling Machine Main Technical Data(Trolley feeding)
SWZ1000X500 CNC Teihedral Beam Drilling Machine Main Technical Data(Trolley feeding)

Category:STEEL STRUCTURE/STEREO GARAGE

Product specifications:

  • ITEMS

    UNIT

    SPECIFICATIONS

    H Beam: Max width * Max Height

    mm

    1000×500

    H Beam: Min width * Min Height

    mm

    150×100

    Automatic Feeding Length

    mm

    100012000

    Max Web Thickness

    mm

    40

    Max Weight

    kg

    15000

    Quantity of Drilling Spindle

    PCS

    3

    Power of Drilling Spindle

    r/min

    180750

    Rotation Range of Each Spindle

    mm/min

    20200

    Feeding Speed

    mm

    220

    Feeding Stroke of Upper Spindle

    mm

    220

    Feeding Stroke of Lfet Spindle(Reference)

    mm

    φ40

    Feeding Stroke of Lfet Spindle

    Center Line Moving Range

    Upper Spindle Transverse(left and right) movement range

    mm

    401000

    Left and Right Spindle Vertical (up and down) movement range

    mm

    30500

    Non-reference Side Level Range of Movement

    mm

    0-600

    Clamp Type

    Morse

    4

    Hole Tolerance Within the Hole Group

    mm

    ±0.5

    Hole Tolerance Between the Hole Group

    mm

    ±0.75

    Pressure of Compressed Air

    Mpa

    0.4-0.6

    Cooling

    Air Cooling

    Clamp Up & Down (Vertical direction) Stroke

    mm

    220

     Clamp Left & Right (Horizontal direction) Stroke

    mm

    350

    Clamp Movement ( Forward direction) Stroke

    mm

    13500

    Servo Motor Power of Power Rack & Pinion Drive

    KW

    Appro. 4

    Outline Dimension of feeding Channel(L*W*H)

    mm

    15000×1250×1630

    Length of Discharging Channel

    mm

    12000

    Total Power

    KW

    Appro. 30

    L×W×H Outline Dimension of the line

    mm

    30000×6100×3050

    CAD Automatically change to controlling system
