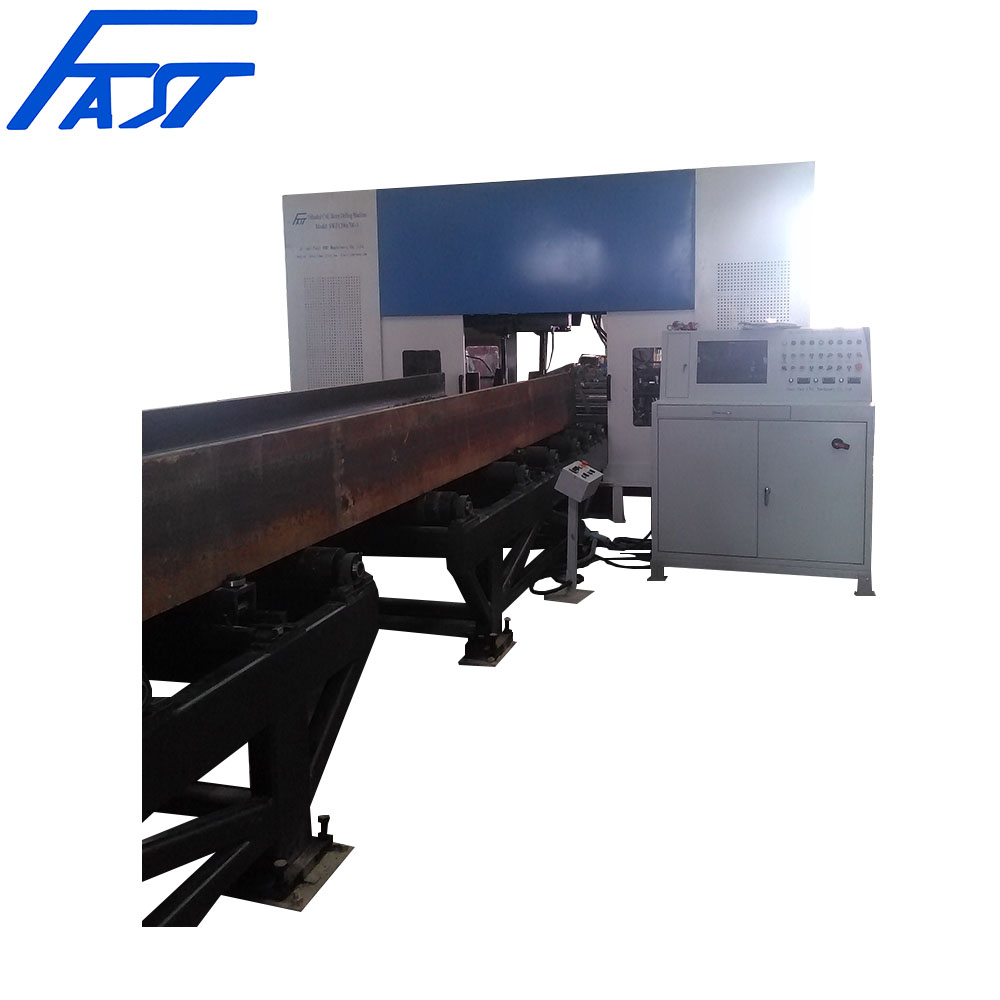

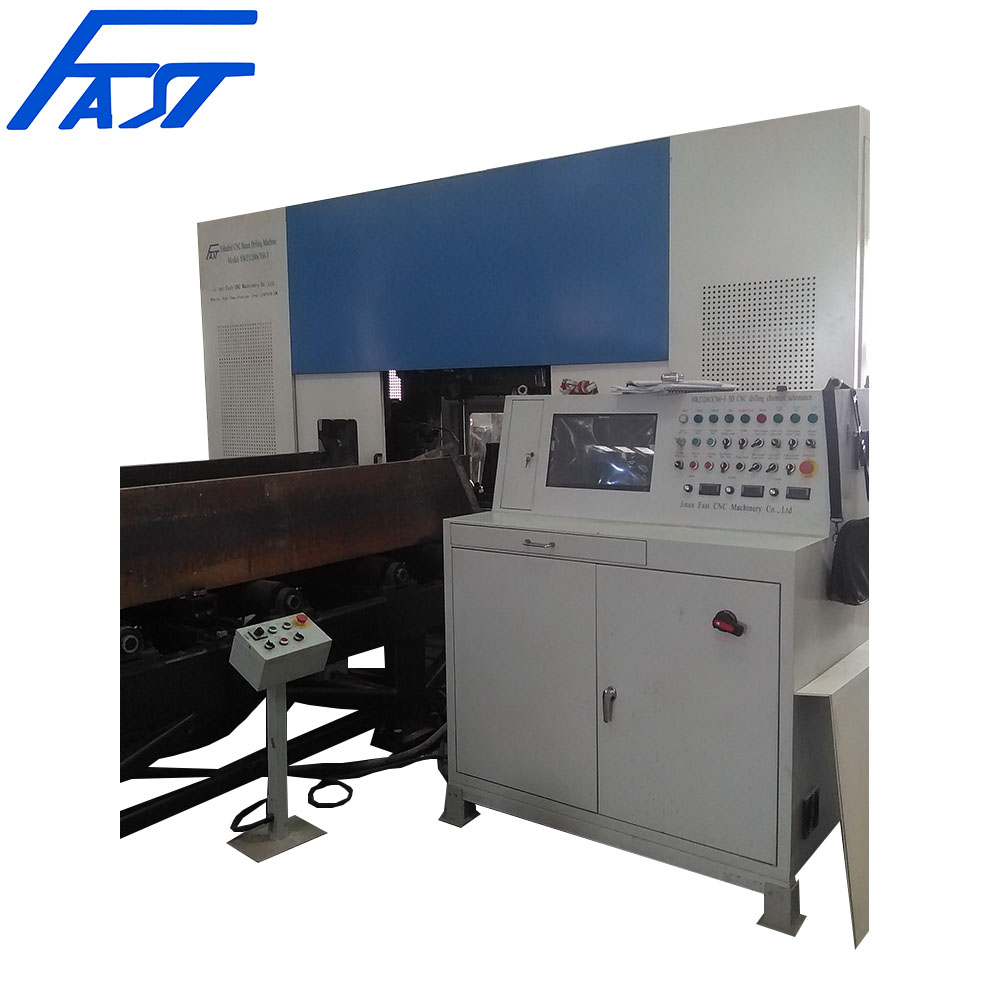

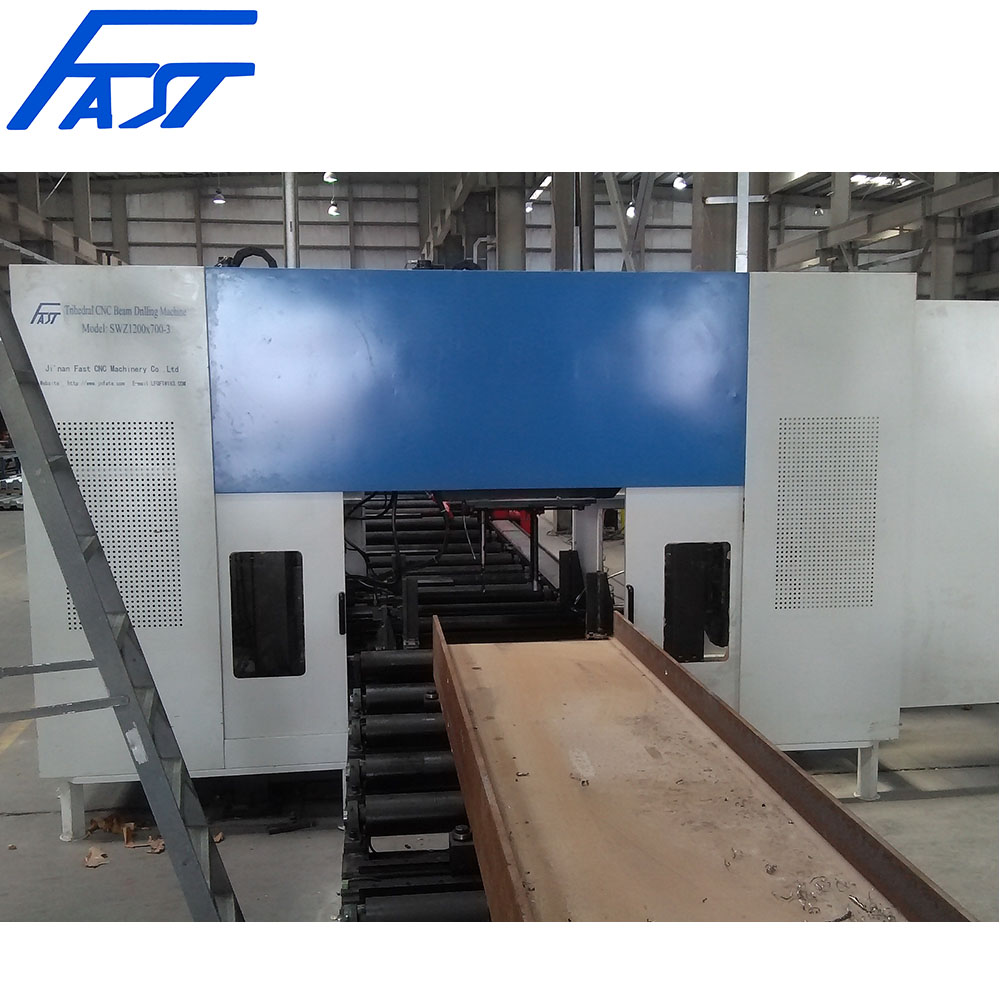

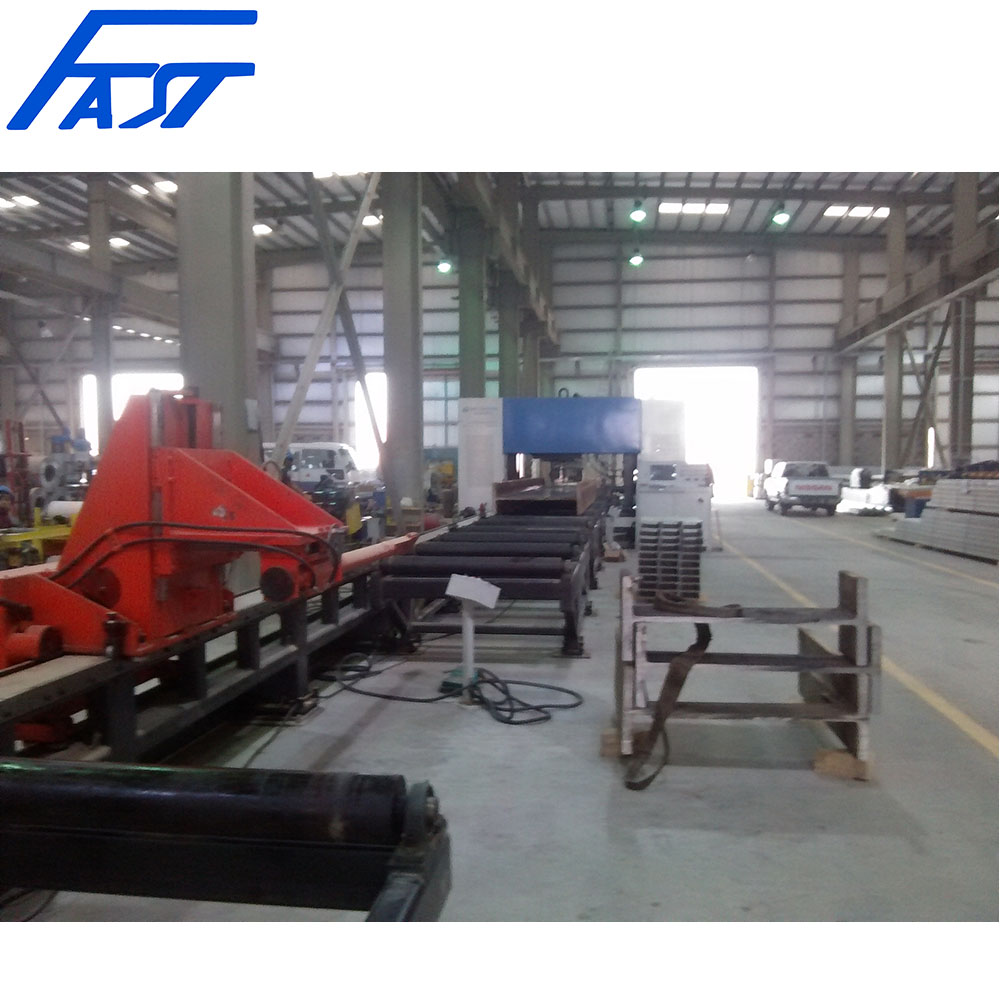

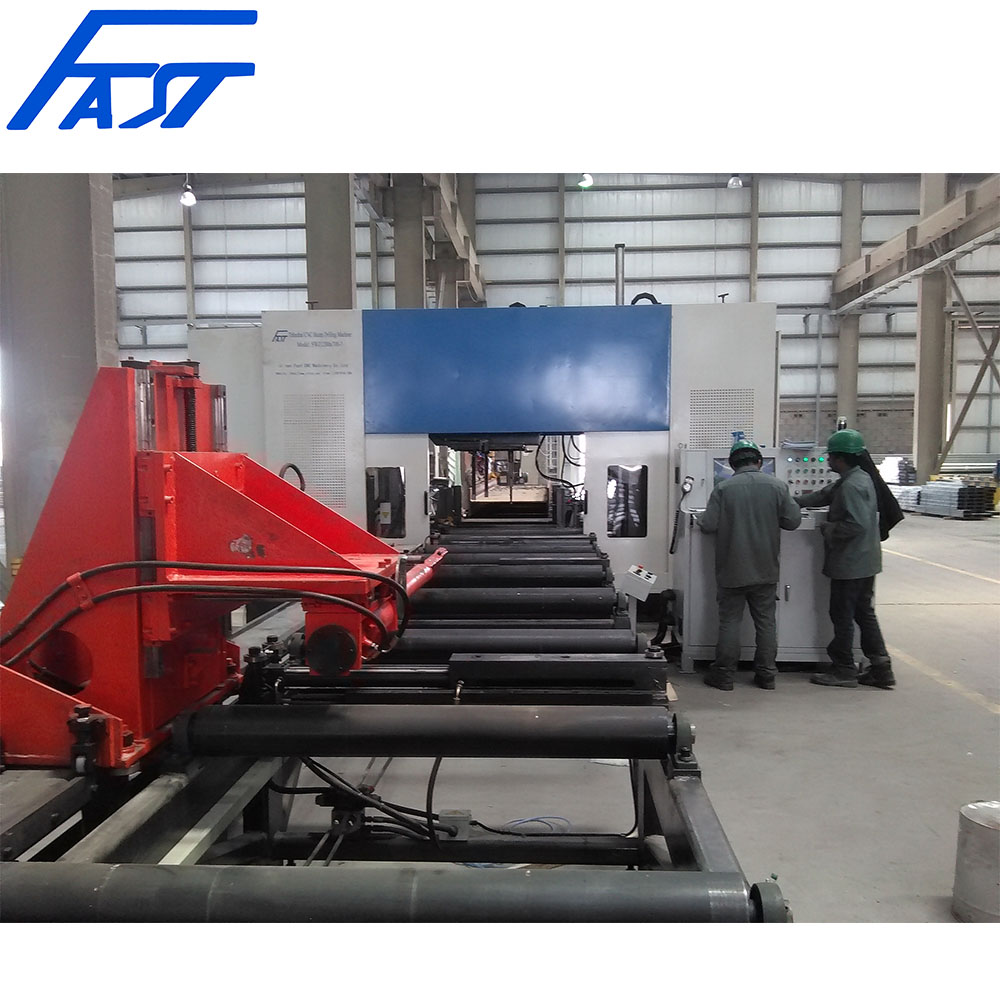

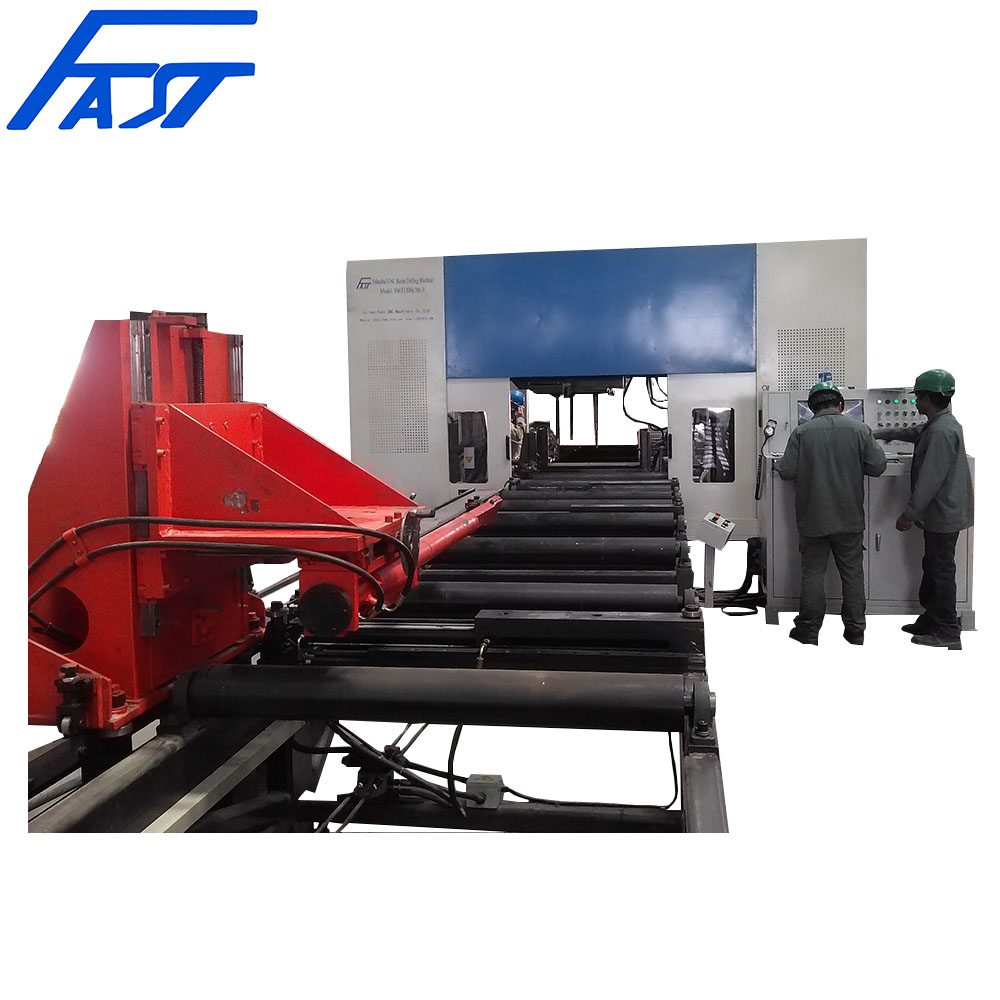

SWZ1250X600-3 CNC Teihedral Beam Drilling Machine Main Technical Data(Trolley feeding)
  • SWZ1250X600-3 CNC Teihedral Beam Drilling Machine Main Technical Data(Trolley feeding)
SWZ1250X600-3 CNC Teihedral Beam Drilling Machine Main Technical Data(Trolley feeding)

Category:STEEL STRUCTURE/STEREO GARAGE

Product specifications:

  • ITEMs

    UNIT

    SPECIFICATIONS

    H Beam: Max width * Max Height

    mm

    1250×600

    H Beam: Min width * Min Height

    mm

    200×100

    Automatic Feeding Length

    mm

    12000

    Max Web Thickness

    mm

    60

    Max Weight

    kg

    15000

    Quantity of Drilling Spindle

    PCS

    3

    Power of Drilling Spindle

    KW

    4

    Rotation Range of Each Spindle

    r/min

    30700

    Feeding Speed

    mm/min

    20200

    Feeding Stroke of Upper Spindle

    mm

    400

    Feeding Stroke of Lfet SpindleReference

    mm

    250

    Feeding Stroke of Lfet Spindle

    mm

    1100

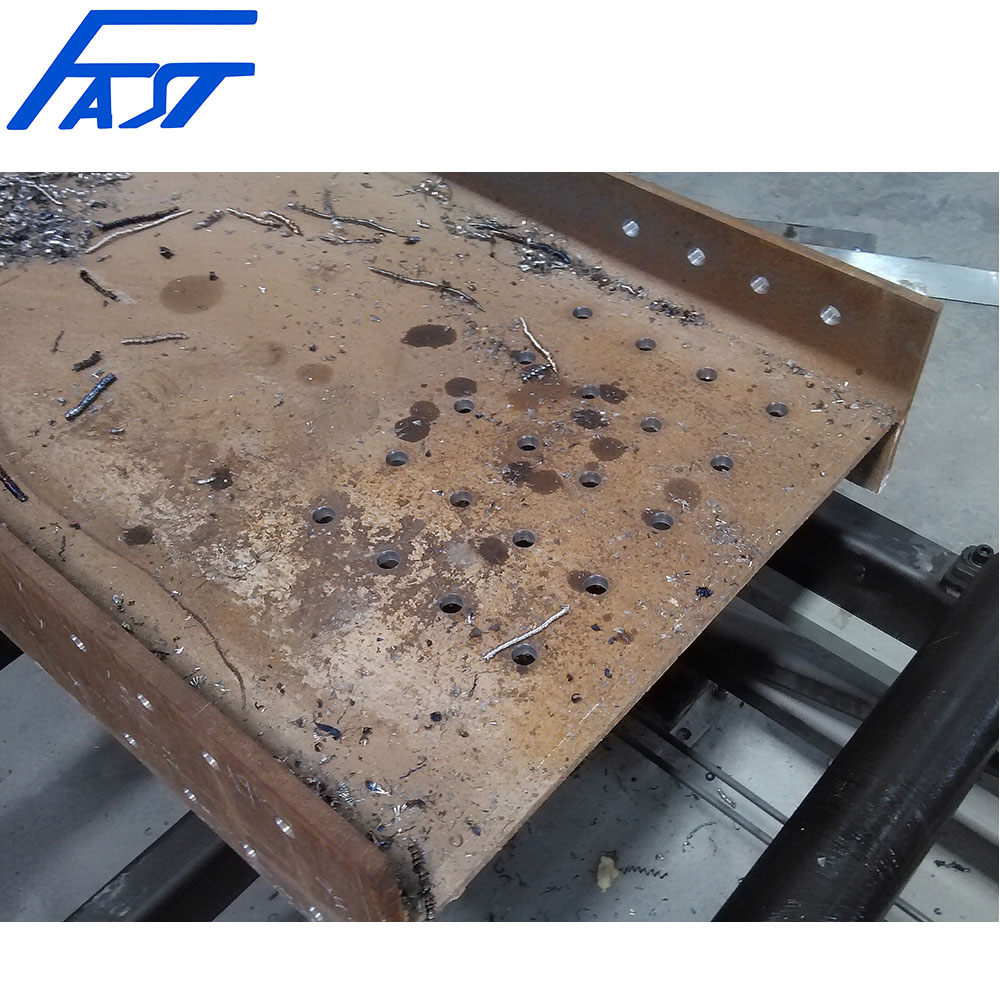

    Web Drilling Diameter Range

    mm

    Ф6-Ф40Material Q235),

    Ф6-Ф32(Material D36

    Flange Drilling Diamter Range

    Mm

    Center Line Moving Range

    Upper Spindle Transverse(left and right) movement range

    mm

    301200

    Left and Right Spindle Vertical (up and down) movement range

    mm

    30560

    Non-reference Side Level Range of Movement

    mm

    1100

    Clamp Type

    Morse

    4

    Hole Tolerance Within the Hole Group

    mm

    ±0.5

    Hole Tolerance Between the Hole Group

    mm

    ±0.75

    Pressure of Compressed Air

    MPa

    0.4-0.6

    Cooling

    Air Cooling

    Clamp Up & Down (Vertical direction) Stroke

    mm

    30050-310

    Clamp Left & Right (Horizontal direction) Stroke

    mm

    50050-550

    Clamp Movement ( Forward direction) Stroke

    mm

    12000

    Servo Motor Power of Power Rack & Pinion Drive

    KW

    Appro.5

    Outline Dimension of feeding Channel(L*W*H)

    mm

    15000×1750×1830

    Length of Discharging Channel

    mm

    12000

    Total Power

    KW

    Appro. 30

    L×W×H Outline Dimension of the line

    mm

    29000×4520×3120

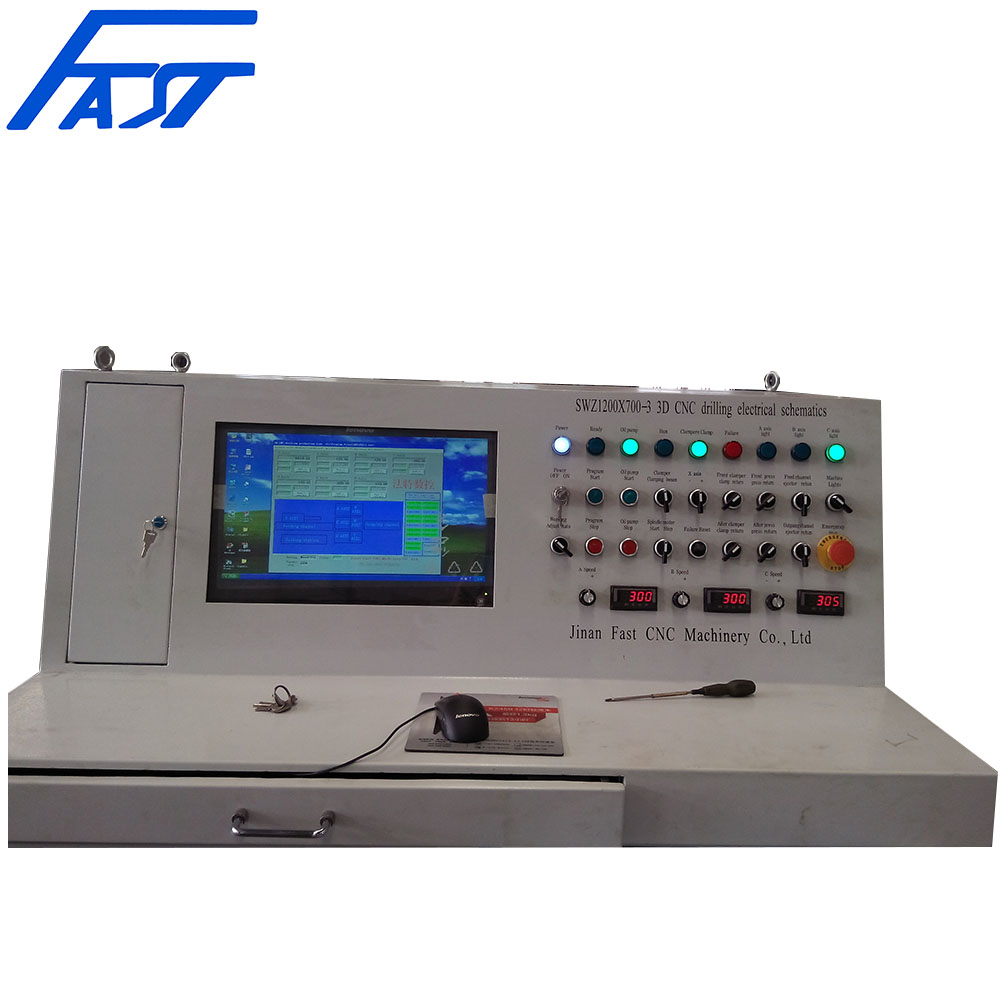

    CAD Automatically change to controlling system
