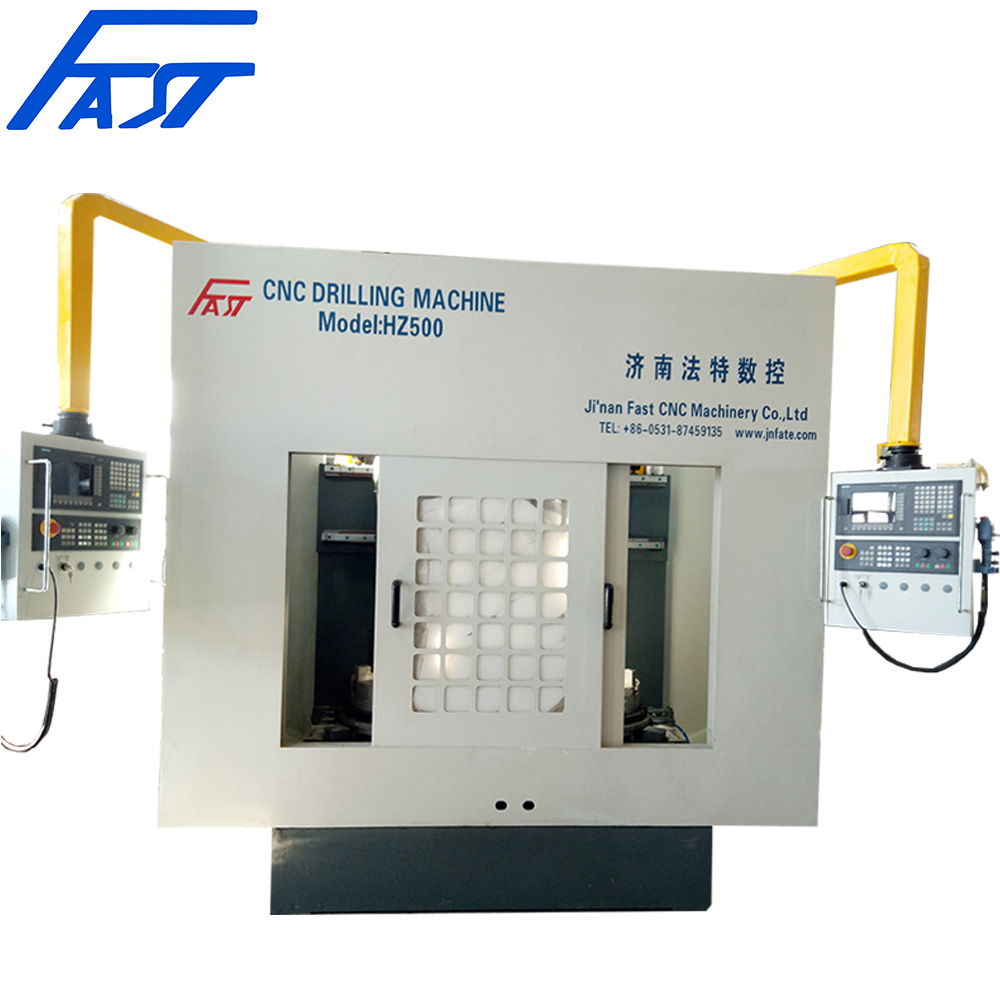

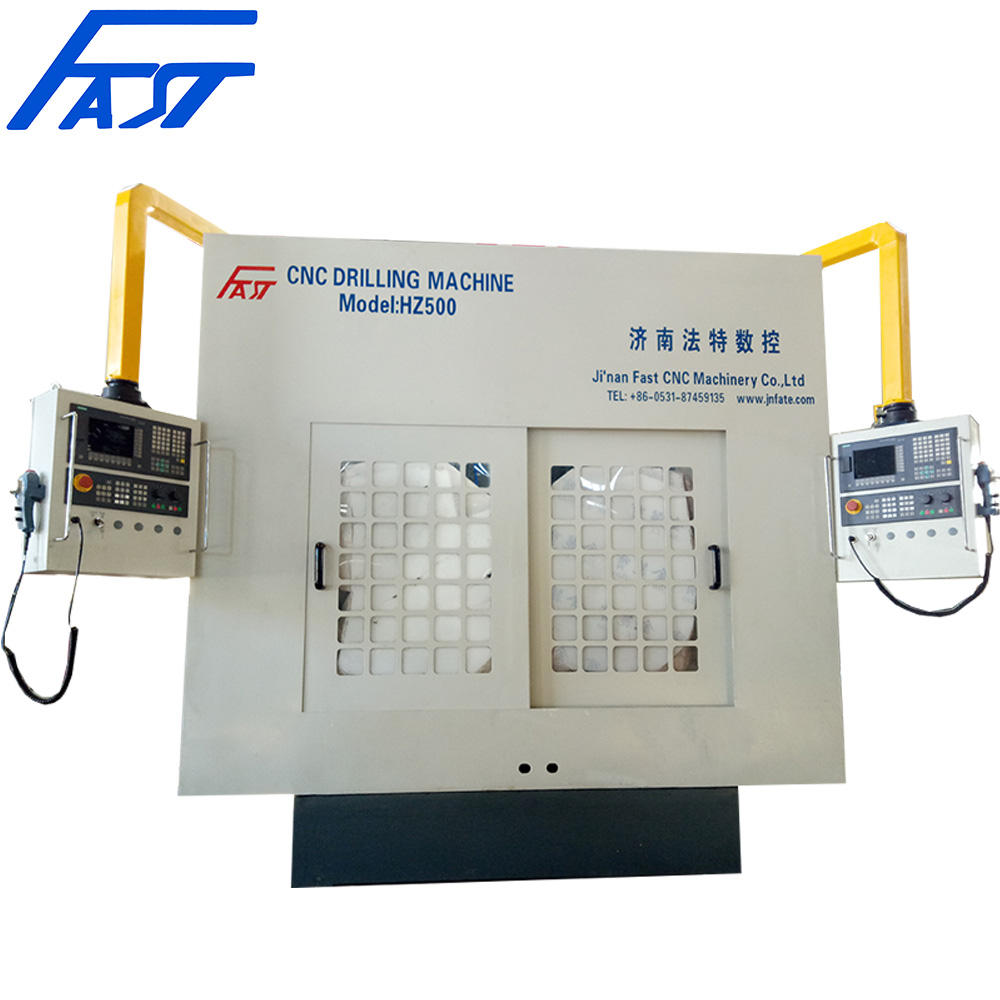

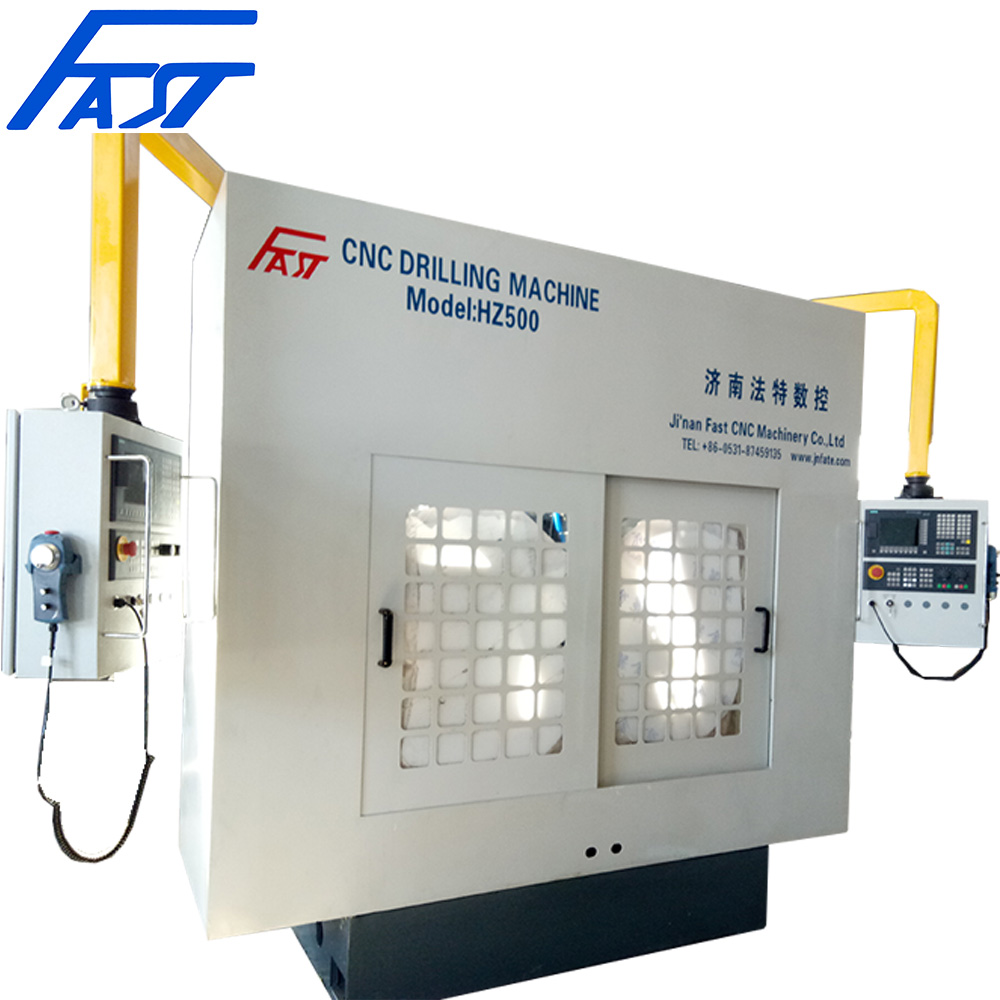

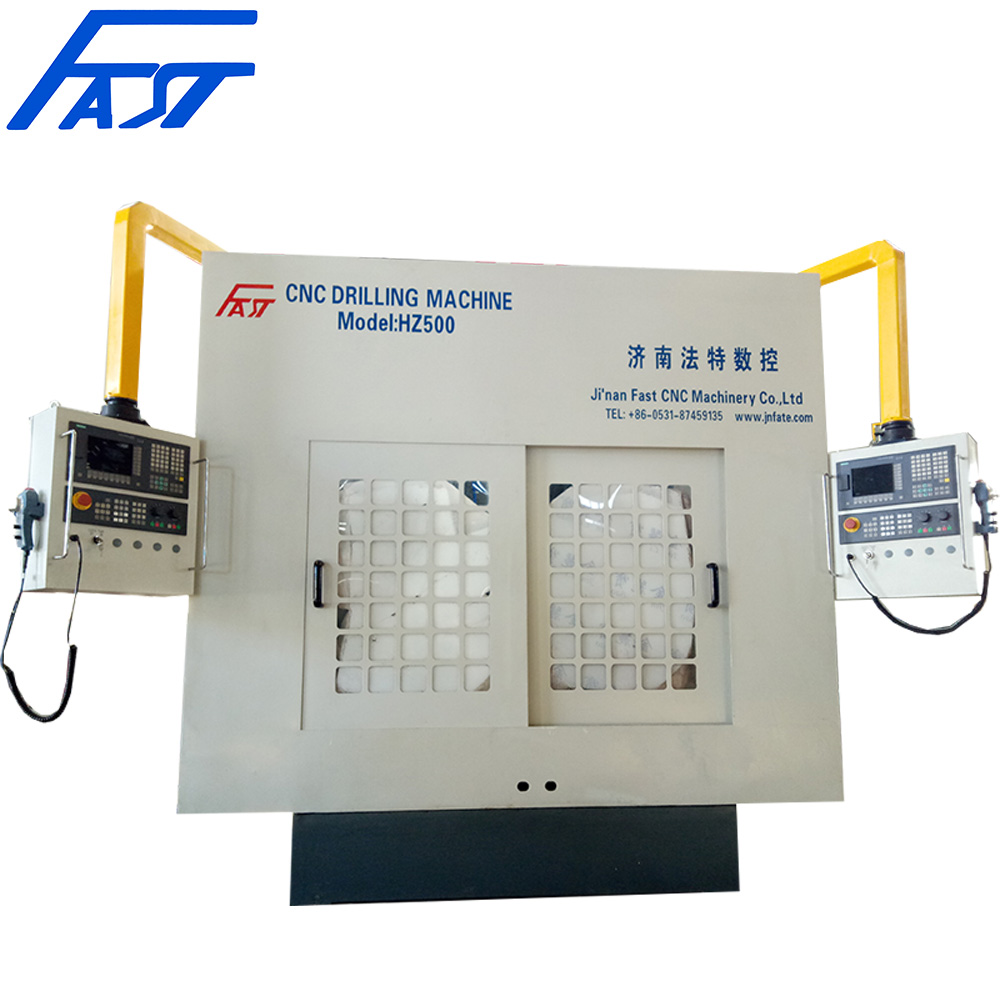

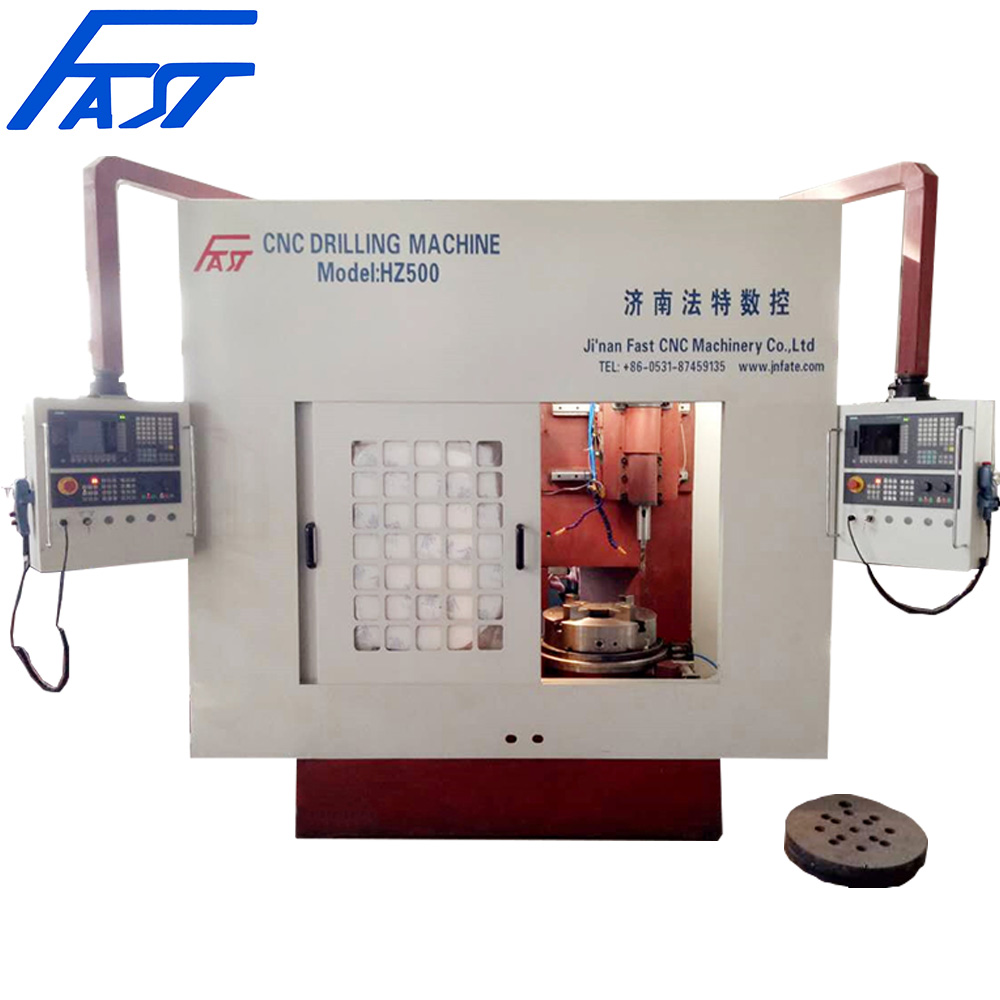

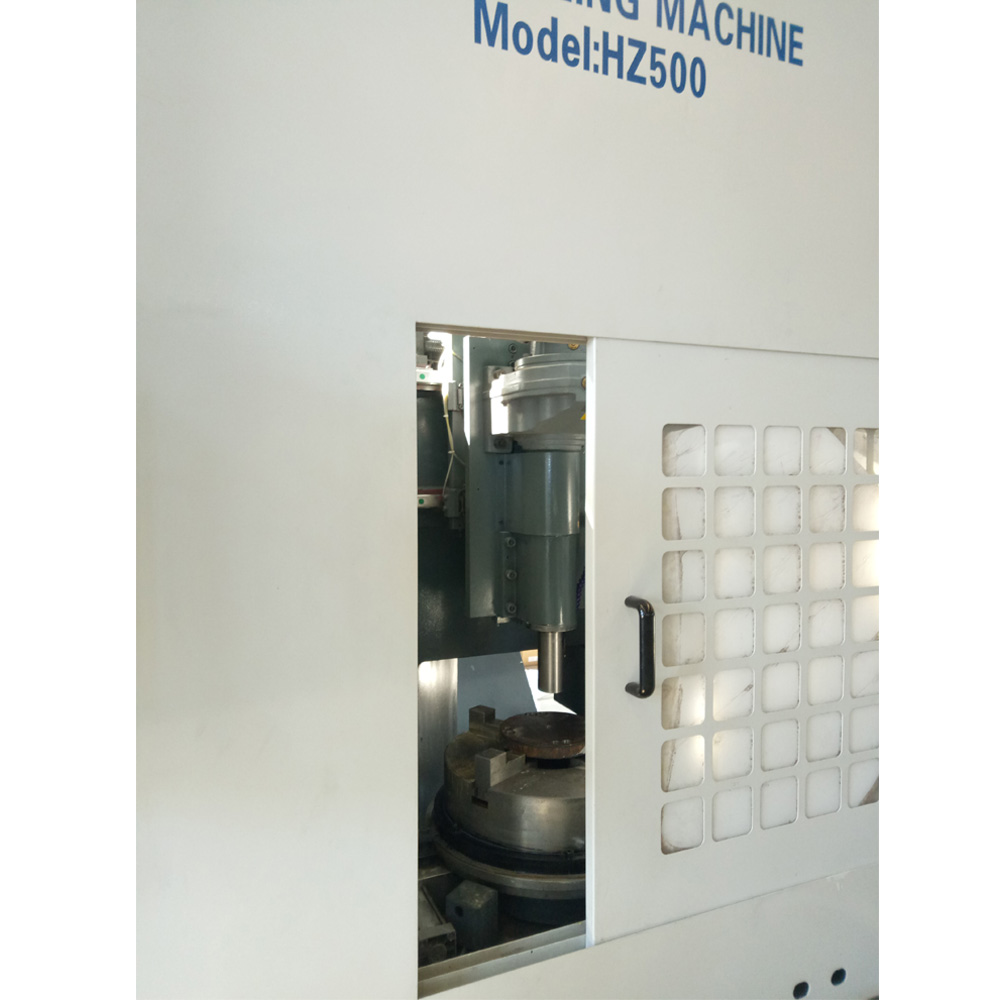

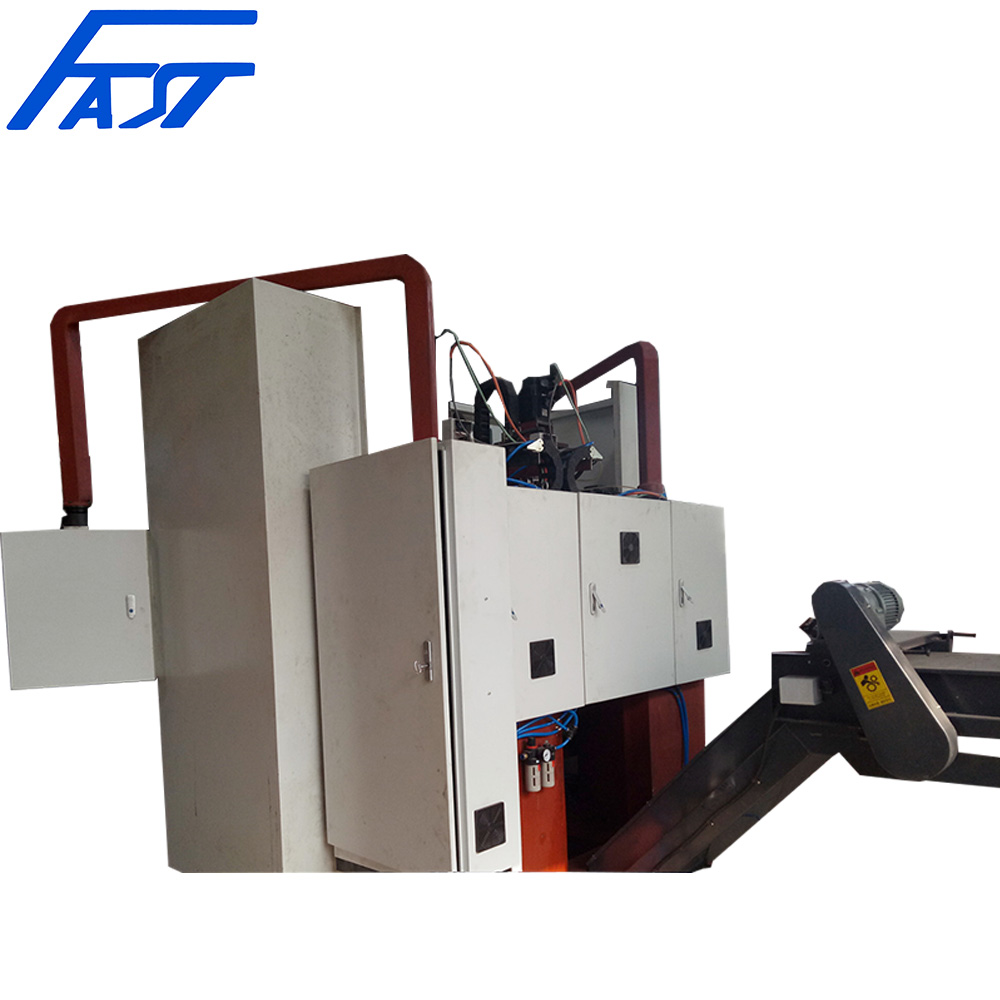

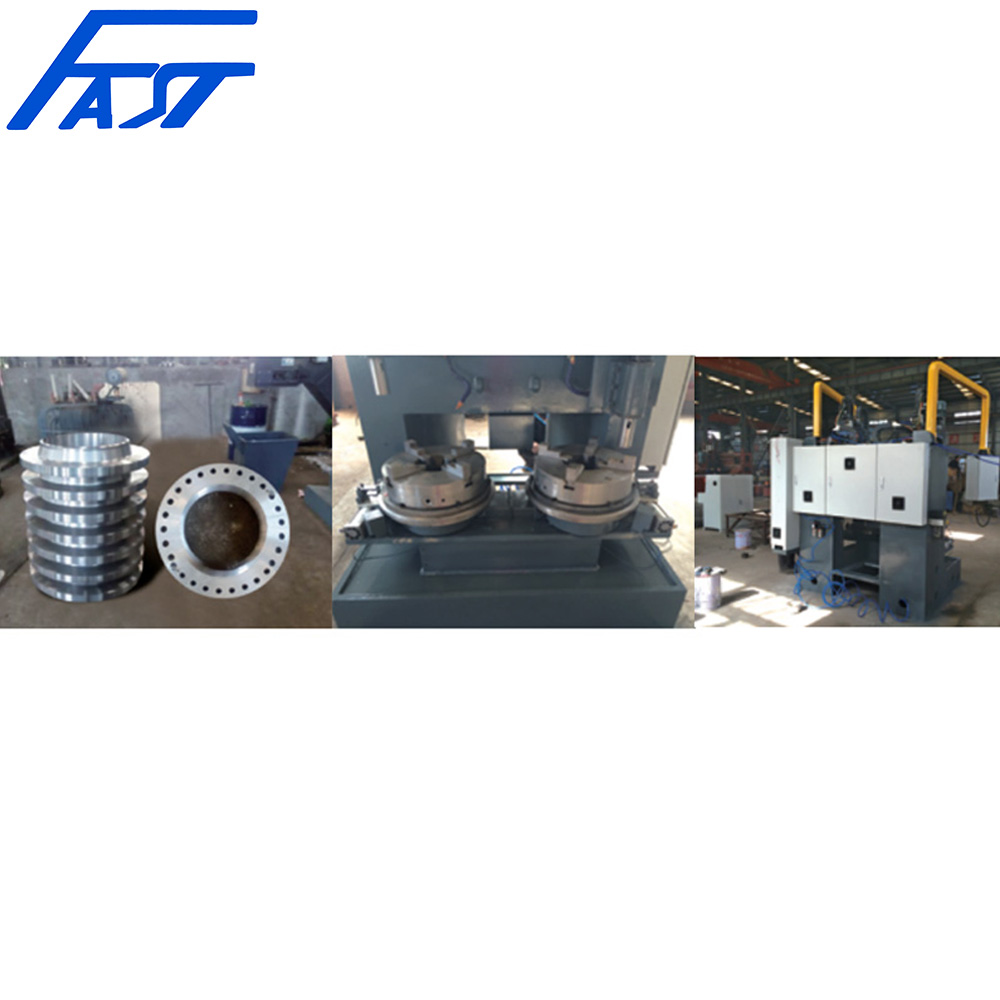

FLZ500-30-2 double spindle CNC flange drilling machine
  • FLZ500-30-2 double spindle CNC flange drilling machine
FLZ500-30-2 double spindle CNC flange drilling machine

Category:TUBE SHEET/FLANGE PROCESSING

Product specifications:

  • Model

    FLZ500-30-2

    Type of the machine

    Double spindles, double work tables flange drilling machine

    Out diameter of the flange need to be processed

    500mm

    Workpiece clamp type

    Manual clamp self-centering, four clamper chunk

    Max drilling diameter

    Ф30mm

    type of drilling power head

    Servo feeding drilling power head

    Quantity of drilling power head

    2PCS

    Specification of spindle

    Type of connection hole of spindle

    Morse type 3

    Rotating speed of spindle

    0—1200r/min

    Quantity of CNC axis

    4  Axes

    Accuracy of the machine

    Position accuracy

    ≤0.1mmall stroke≤0.1mm whole length

    Repositioning accuracy

    ≤0.06mmall stroke≤0.06mm whole length

    Run out of surface and side of spindle

    ≤0.03 mm

    Pressure of pneumatic system

    0.6Mpa

    Pressure of lubrication system

    1.0MPa

    Pressure of cooling system

    0.2MPa(water and mist cooling)

    Total power

    About 16KW

    Total weight of the machine

    About 4.8t

    Outline dimension(×LW×H)

    1650mm×1400mm×2400mm

    NOTE: Usage of pneumatic system: when drilling provide power, it is cylinder fixed work table, this ensure rotation work table chuck to be in static status.

    l  Usage of the machine

    This machine mainly used for high efficiency drilling of flange, round material and circle parts. It is double spindles, double rotation work table flame drilling machine, the high efficiency flange drilling machine. Two spindles can drill at the same time, or drill separately. Can drill through hole or blind hole. Processing of working is controlled by CNC, easy operation. Can realize automation, high precision, several varieties, mass production. Inputting numbers of holes n, setting diameter r of the holes need to be drilled in the pitch circle, can operate automaticlly. Very easy to operate, high efficiency, cost worthy machine.

    l  Features of the machine

    The machine is made up of two work table, two drilling power heads, automatic clip removal device, pneumatic system, electrical system. Linear guide up port and guide, precision ball screw driving, machine has high positioning accuracy and repositioning accuracy.

    l  Technical data
