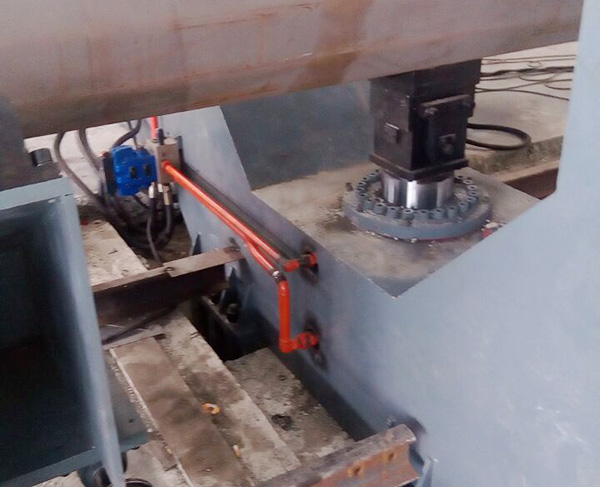

Steel tube joint round machine
  • Steel tube joint round machine
Steel tube joint round machine

Category:TUBE TOWER

Product specifications:

  • I. USAGE

        This machine is gantry hydraulic joint straightening machine, mainly used for steel pipe rolling or bending formed steel tube with pressing, jointing & straightening. It is easy for the steel pipe welding. It can be also used in cylinders and cones rib tube joint alignment welding. In a wide range of application, such as  petroleum, electricity, shipbuilding & chemical industries, ect has been widely used.

    II. TECHINICAL CHARACTERISTICS

    ■ This machine has a lower main oil cylinder installed on the top. Both side installs a clamping cylinder. The clamping oil cylinder can move up and down under the oil cylinder to drive, cooperating with extended compressive bar for Φ200mm-Φ1500mm steel pipe joint operations.

    ■ In the lower part of the main engine, there is a V-shape table.

    ■It reduces the labor of the workers by driving the roller with electric drive.

    ■ This machine can also be matched with back and forth bracket for the straightening of the steel tube, and a dual-purpose machine.

    III. MAIN TECHNICAL DATA

    HX1500 Gantry  Hydraulic steel pipe joint composition & technical data& specifications.

    1、Composition:

        This machine is composed of gantry hydraulic press, hydraulic station, cabinet box, electric bracket and bracket guide rail, ect.

    2、 Technical data

    2.1 Workpiece diameter range: φ200-φ1500mm(Thickness of pipe: 20mm,Q345);

    2.2  Ton:   Main Oil Cylinder:250 ton;

                  Both sides oil cylinder:40Ton;

    2.3Working cylinder stroke:  Main cylinder: 1000mm;

                     Both side oil cylinder:600mm;

                     lifting cylinder:700mm

    2.4  Working stroke speed:  Main oil cylinder 16mm/sec;

                        Both sides oil cylinder 10-80mm/sec, adjustable speed.

    2.5  Returning speed:       Main oil cylinder 80mm/sec;

                         Both sides oil Cylinder 100mm/sec, adjustable speed.

    2.6  Power:      22KW

    2.7  Overall Dimension:3000×1070×4800 mm

    2.8  Whole Weight:  18 Ton;
