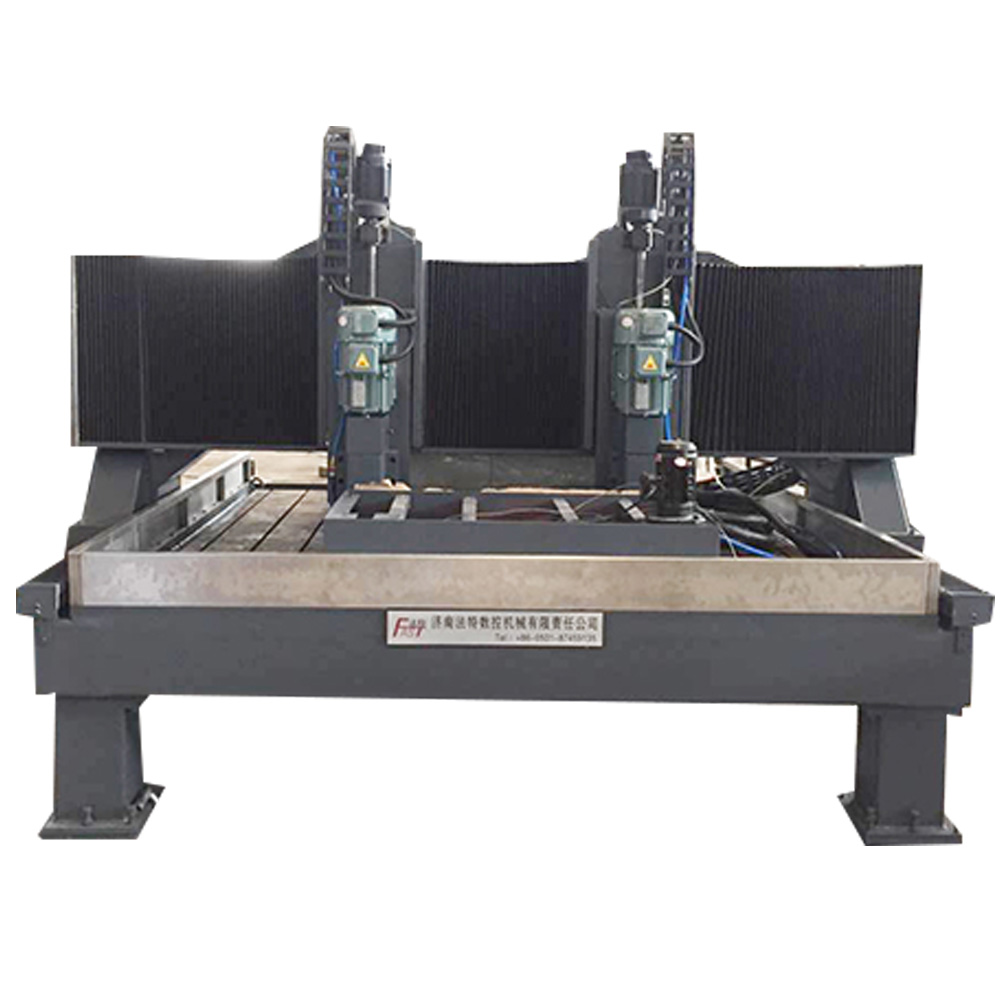

CNC Multi-spindle Sieve Plate Drilling Machine
  • CNC Multi-spindle Sieve Plate Drilling Machine
CNC Multi-spindle Sieve Plate Drilling Machine

Category:SIEVE PLATE PEOCESSING

Product specifications:

  • Model

    PZS2020

    PZS1616

    Max workpiece dimension(mm)

    2000*2000

    1600*1600

    Distance between the bottom of the spindle to work table (mm)

    10-240

    10-320

    Range of drilling diameter(mm)

    Φ1.5-5

    Φ3-Φ10

    Type of drilling power head

    Servo feed drilling head

    Drilling speed(feeding speed) (mm/min)

    50-220(Common steel)

    30-120Stainless steel

    Quantity of drilling power head

    2

    1

    Drilling axis

    6

    1or2

    Type of spindle

    ER20

    ER20/3# Morse

    Distance between the bottom of the spindle to work table (mm)

    100-320

    100-320

    Motor power head (Kw)

    2.2  4 level

    4

    Rotating speed of spindle(r/min)

    300-9800

    300-3000

    Vertical stroke of power head(Z axis) (mm)

    220

    220

    Z axis servo motor power

    1

    1.2

    Servo motor power of Zaxis

    Longitudinal movement srtoke of work table(X axis) (mm)

    2000

    1600

    Servo motor power of X axis(Kw)

    1.5

    1.5

    Transverse movement stroke of work table(X axis)(mm)

    2000

    1600

    Servo motor power of X axis(Kw)

    1

    1

    Quantity of CNC axis

    5

    3

    Weight of the machine(Kg)

    About 5500

    About 3000
