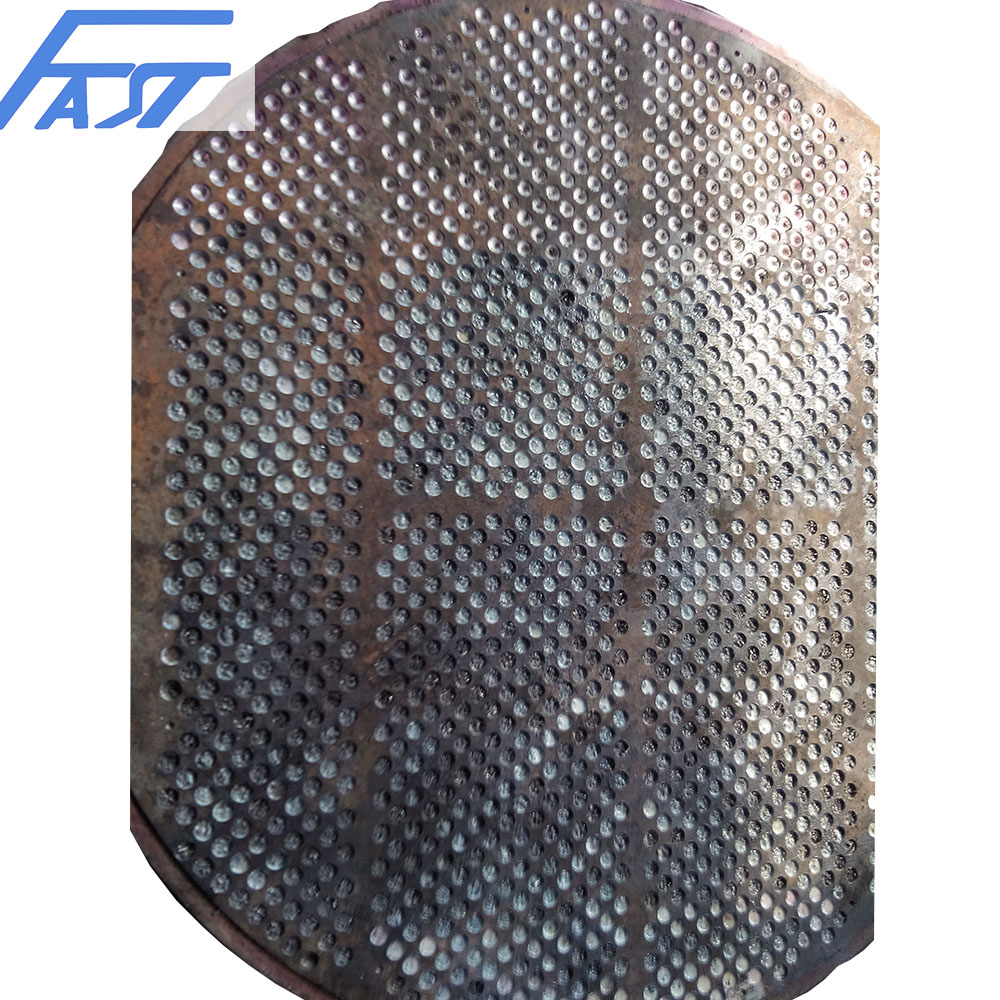

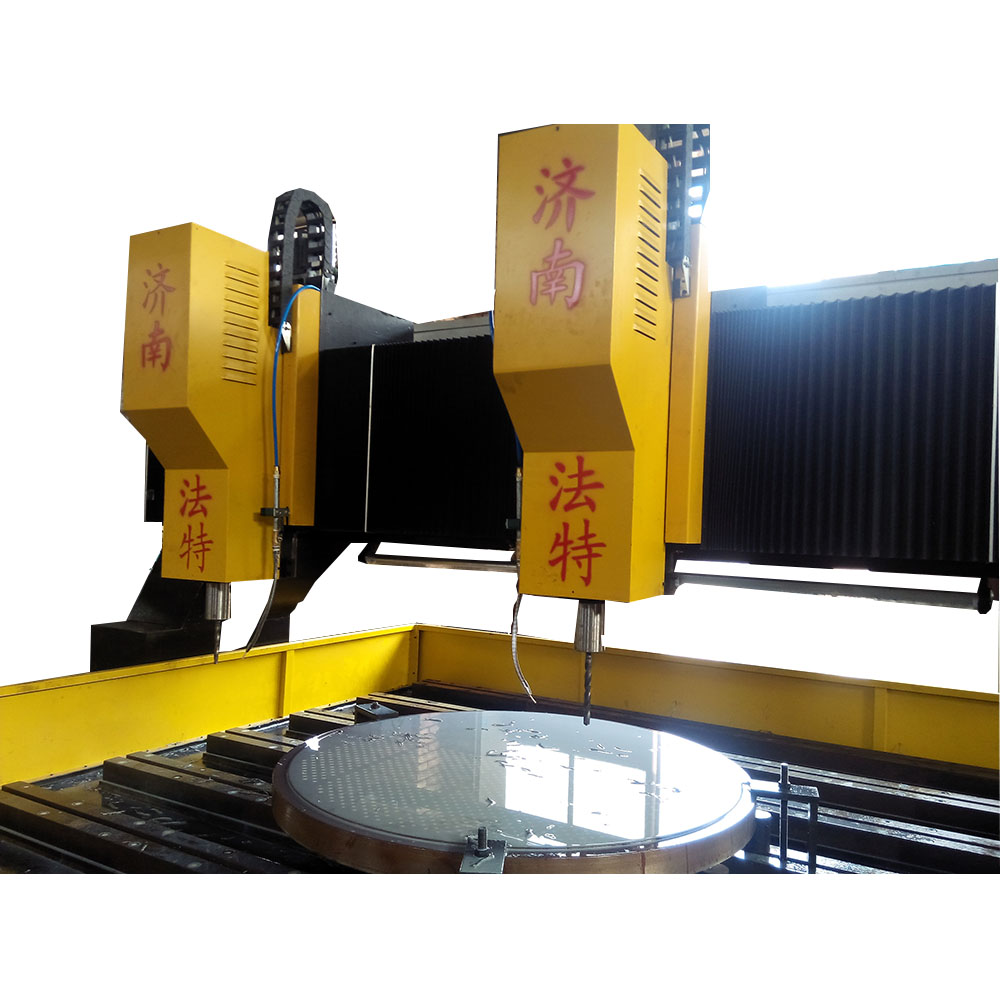

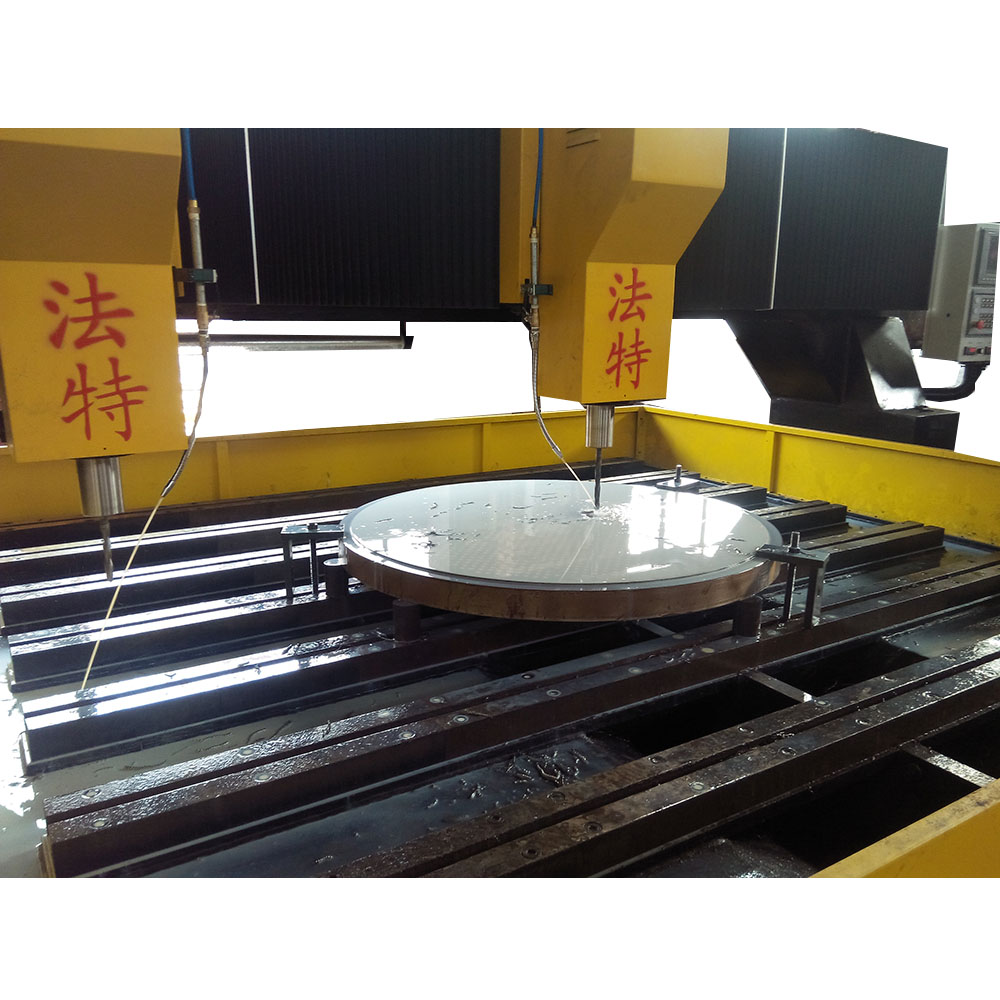

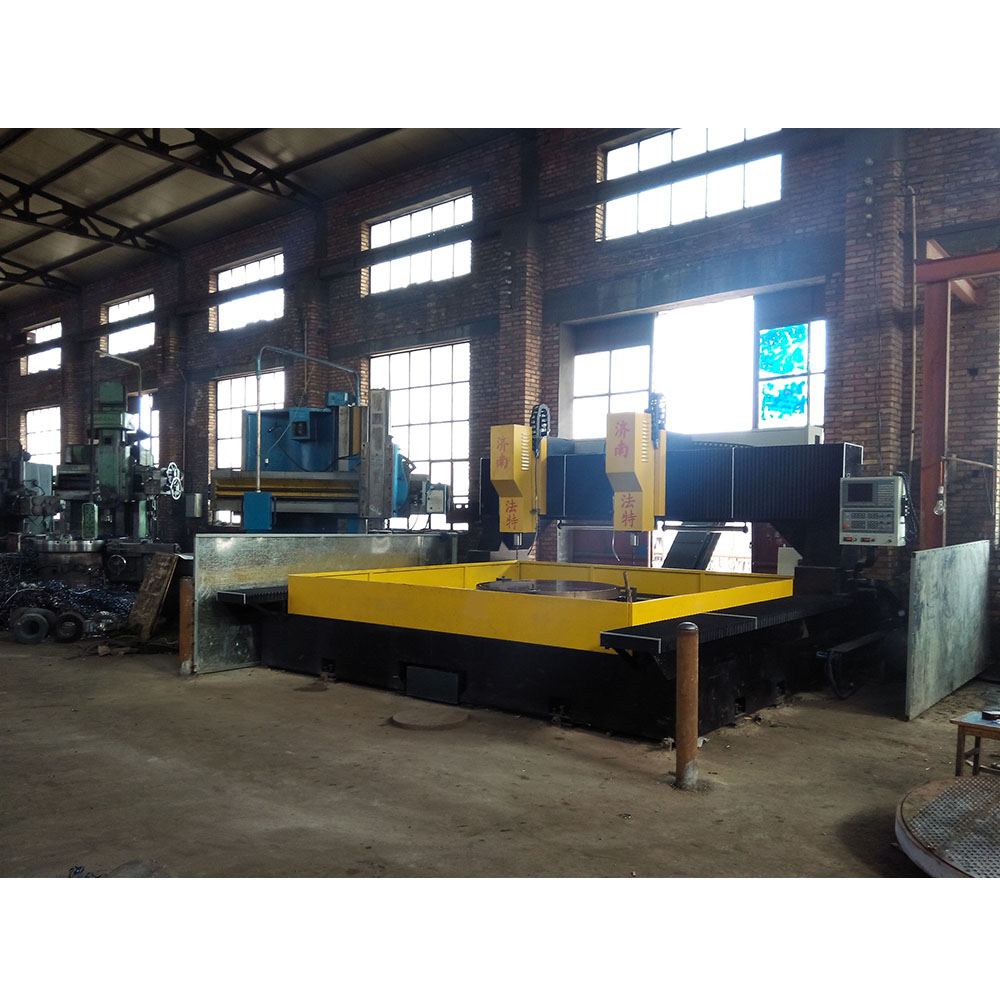

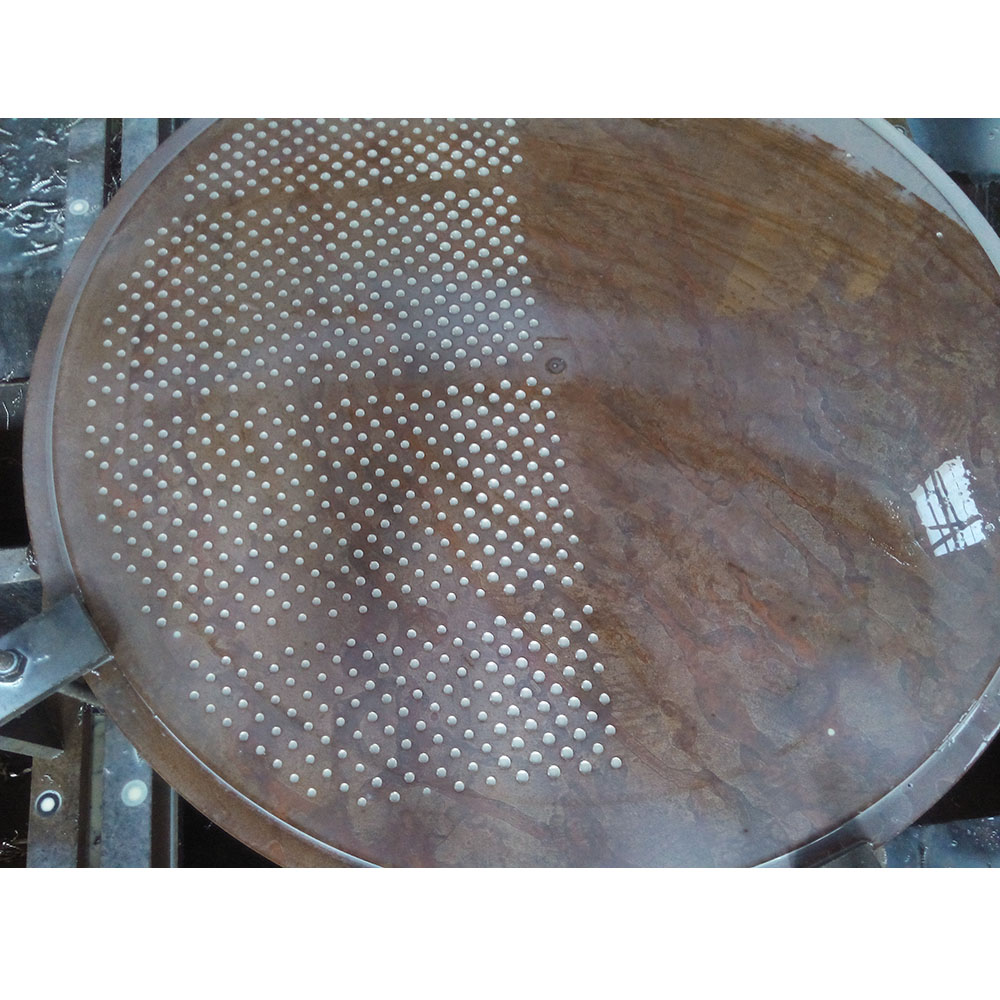

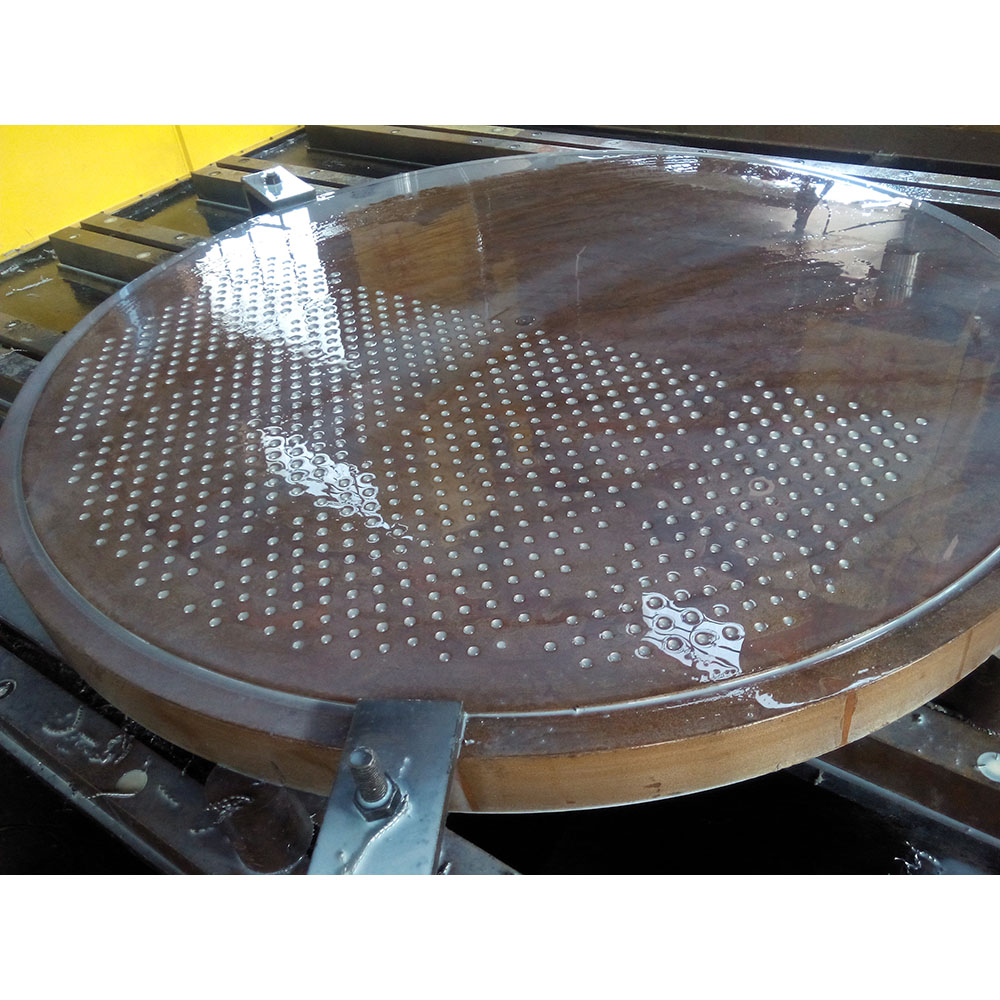

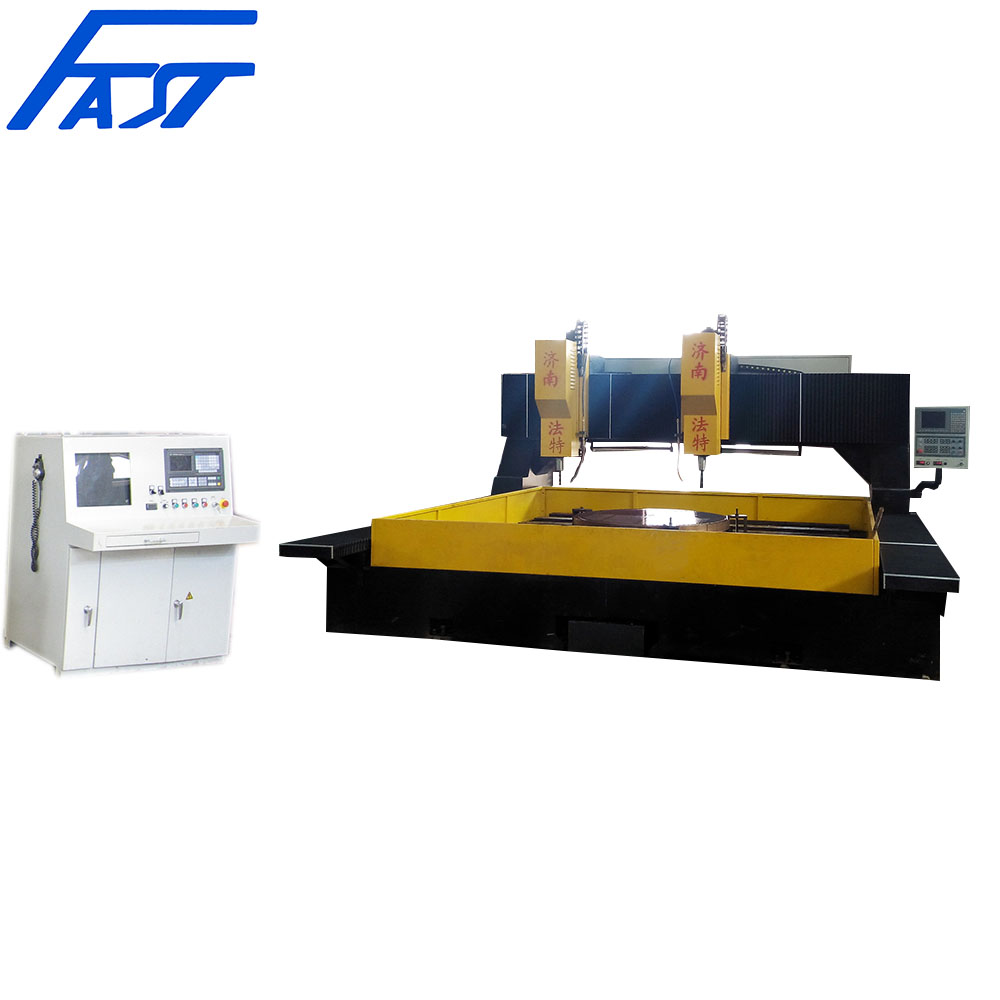

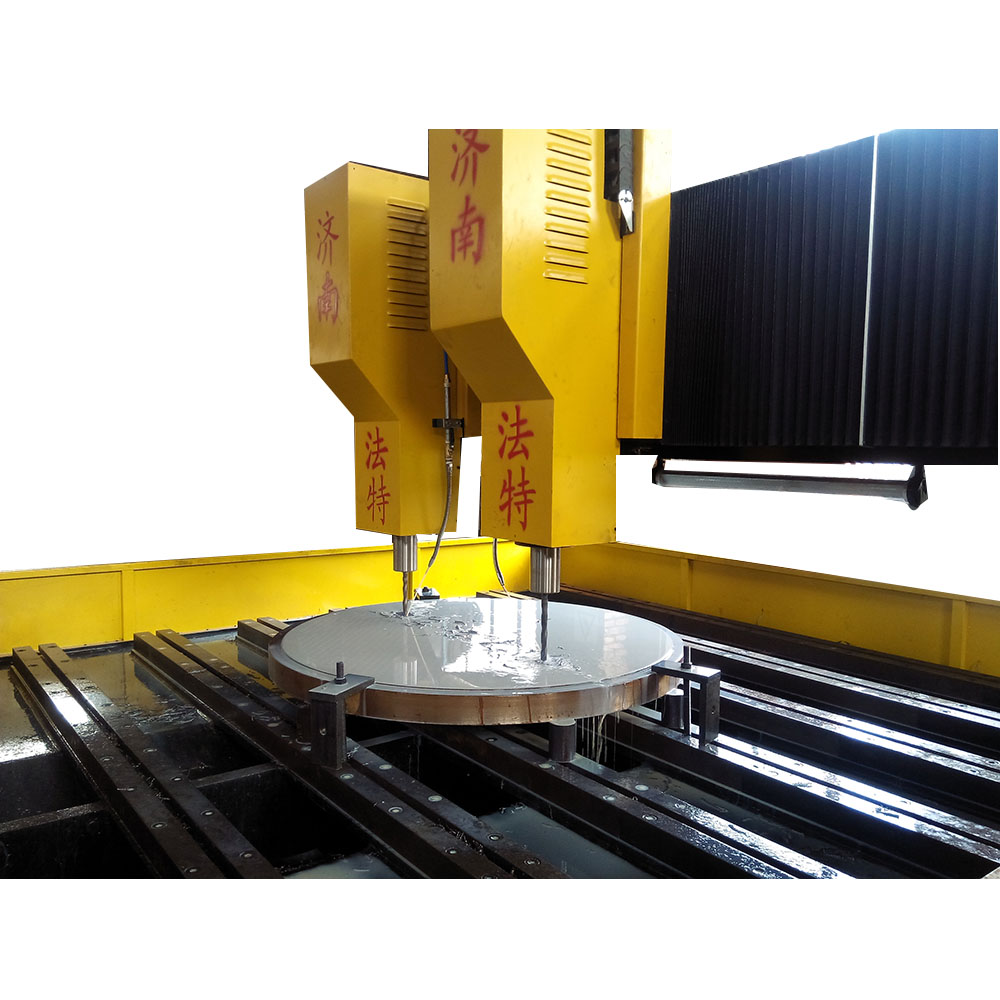

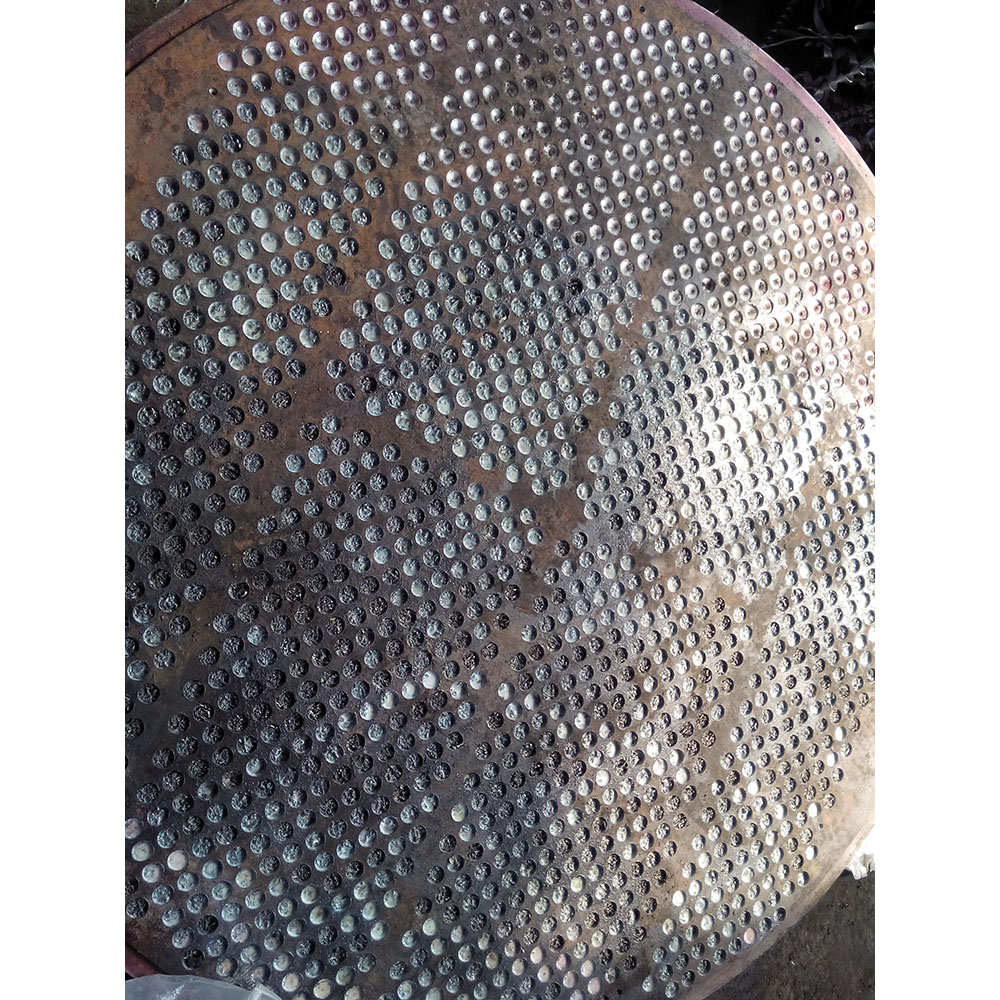

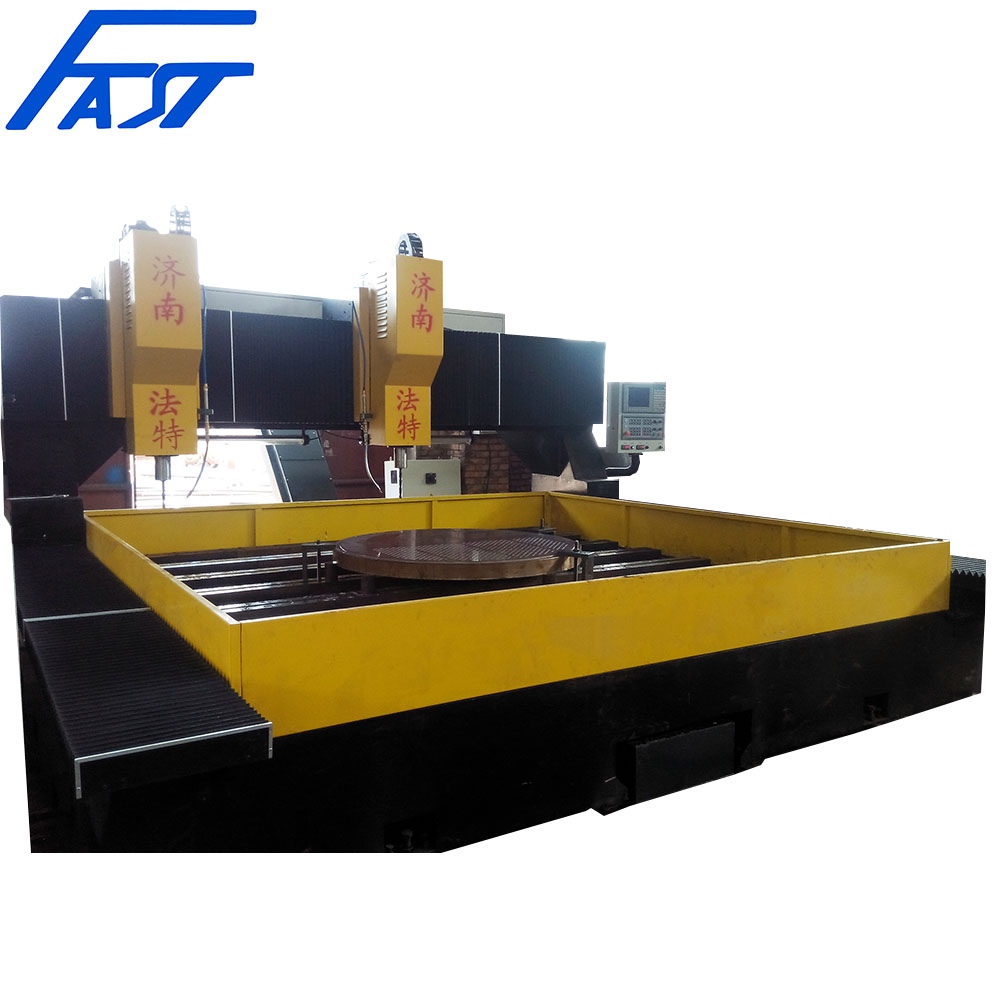

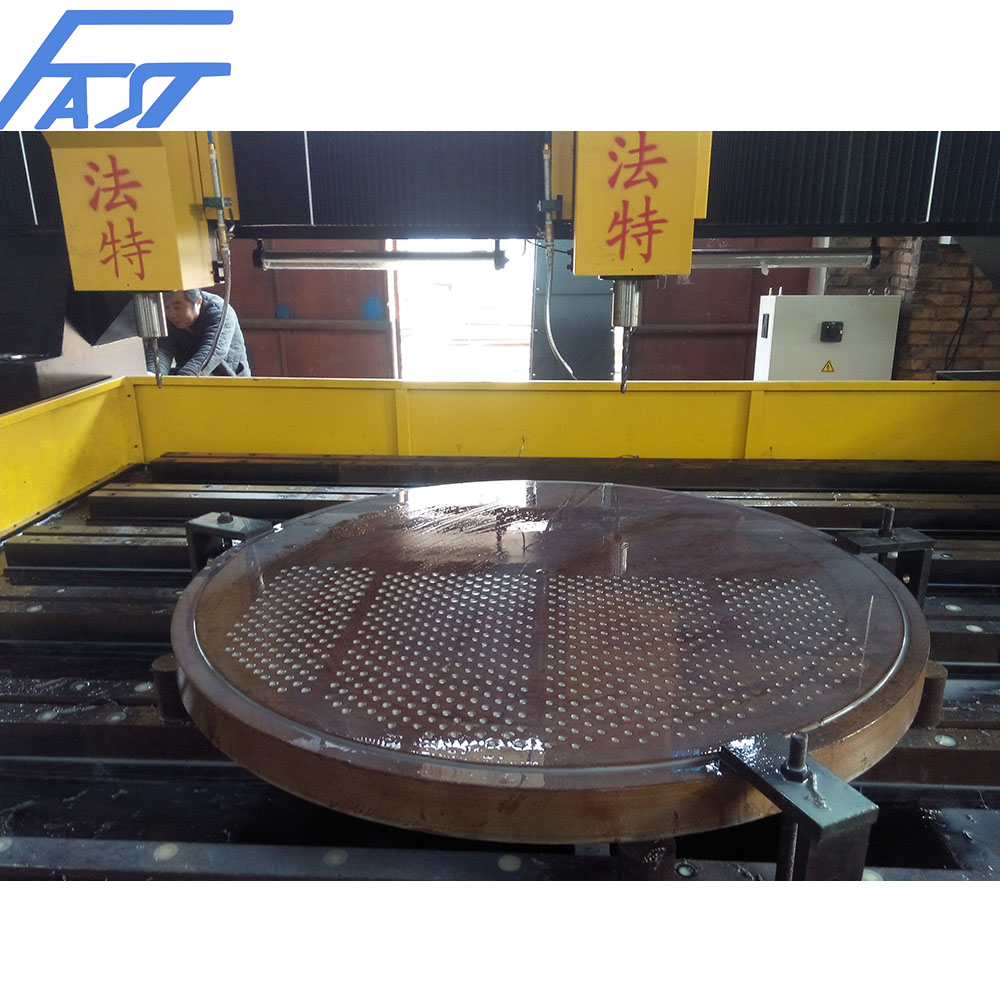

CNC DRILLILNG MACHINE FOR TUBE SHEET/ FLANGE
  • CNC DRILLILNG MACHINE FOR TUBE SHEET/ FLANGE
CNC DRILLILNG MACHINE FOR TUBE SHEET/ FLANGE

Category: CNC DRILLING& MILLING

Product specifications:

  • Model

    PZ1616

    PZ2020

    PZ3030

    PZ4040

    PZ5050

    Type of the machine

    Movable    gantry type(the guide screw of axis on top side)

    Processing

    Processing range(L*X)

    1600*1600

    2000*2000

    3000*3000

    4000*4000

    5000*5000

    Capacity(MM)

    distance between the bottom of the spindle to work table

    160-510

    160-560

    Max drilling depth

    Φ50

    Max drilling depth

    150

    Type of power head

    servo control power head

    Drilling power head

    Quantity

    1

    1 OR 2

    2

    type of connection mold of spindle

    Morse4

    Rotating speed of spindle (r/min)

    30-700

    Motor power of spindle(kw)

    7.5 OR7.5*2

    Positioning accuracy(mm)

    X、Y、Z(mm)

    ≤0.04

    Re-positioning accuracy(mm)

    axis

    ≤0.03

    Total weight of the machine (t)

    4.6

    7

    15

    28

    Outline dimension (L*W*H) (mm)

    2850*1640*2500

    3450*3120*2550

    4800*4400*2650

    5900*5400*2850
