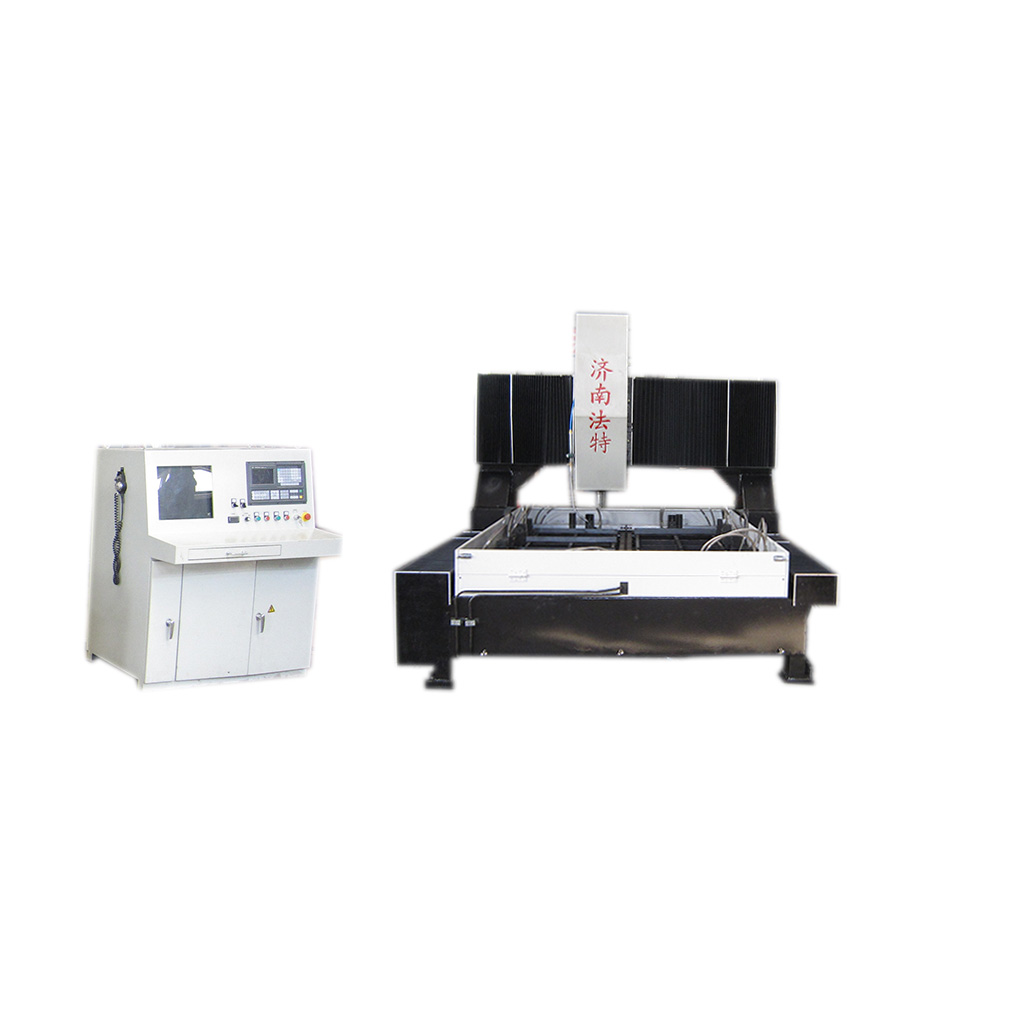

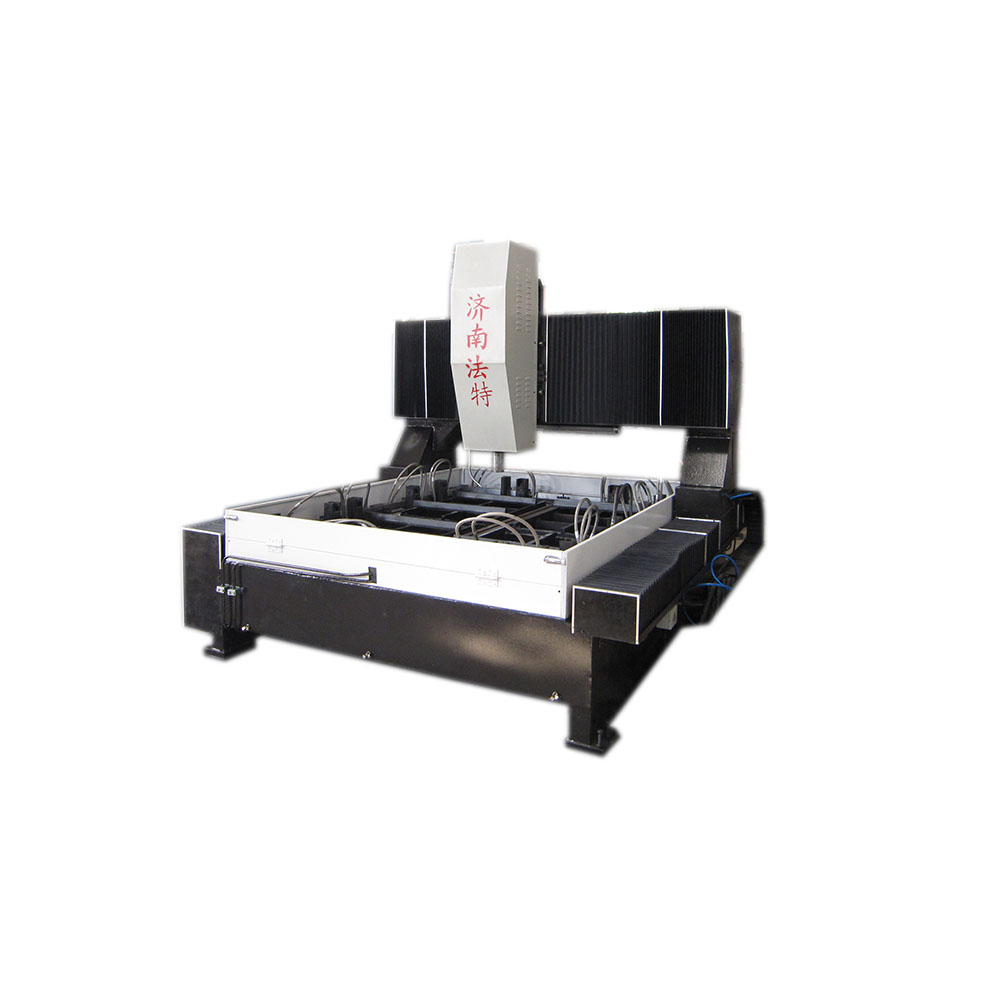

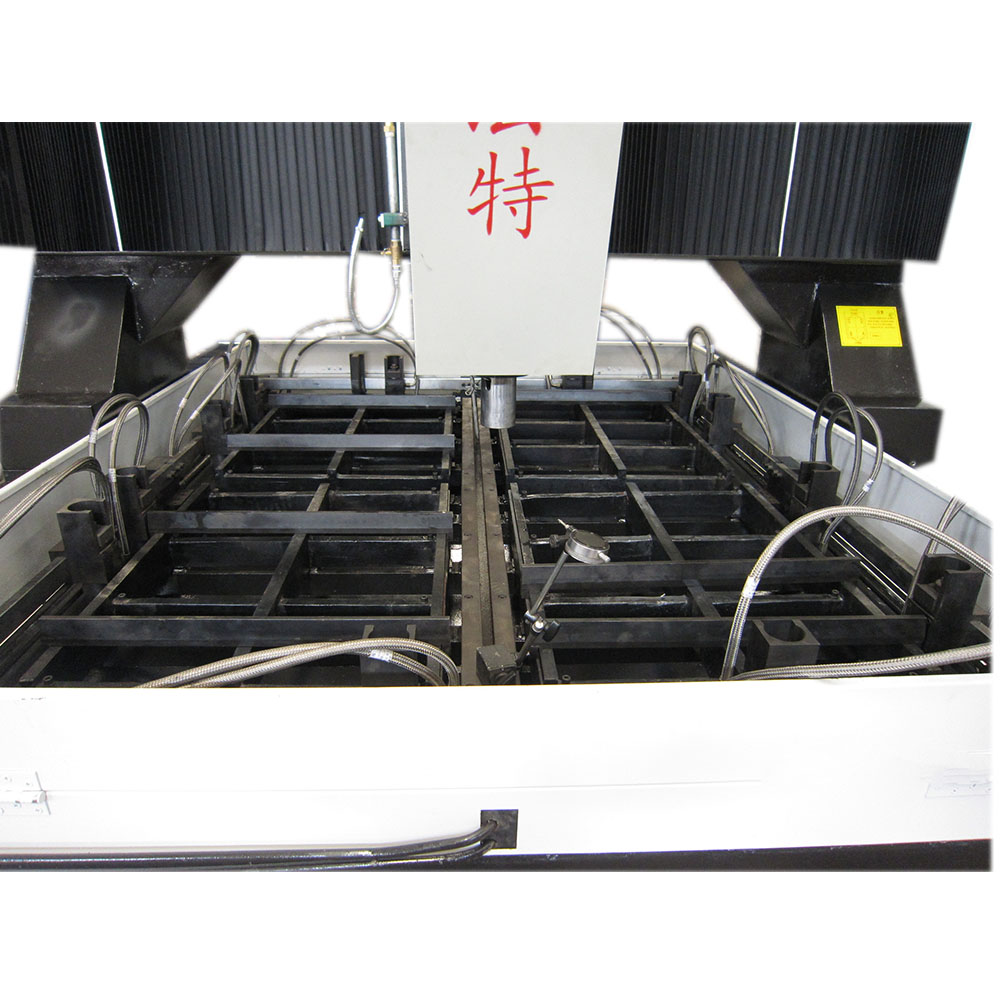

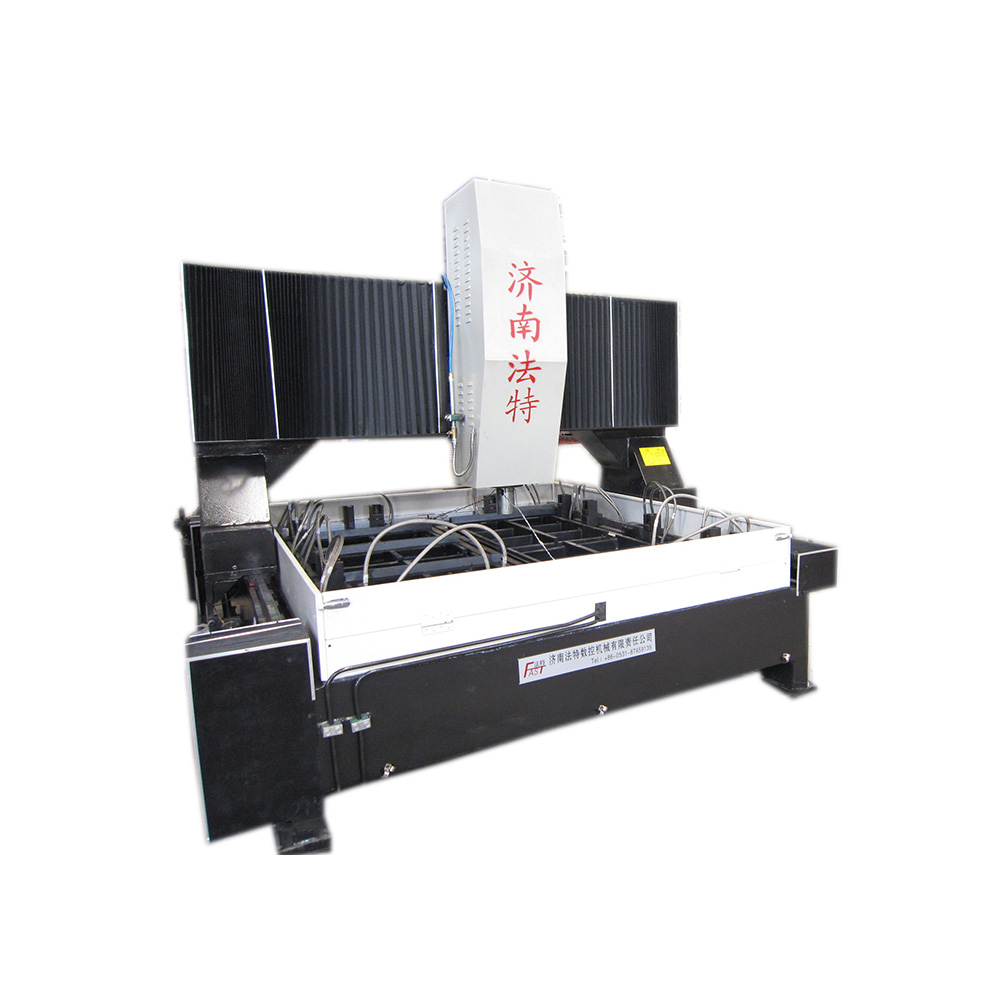

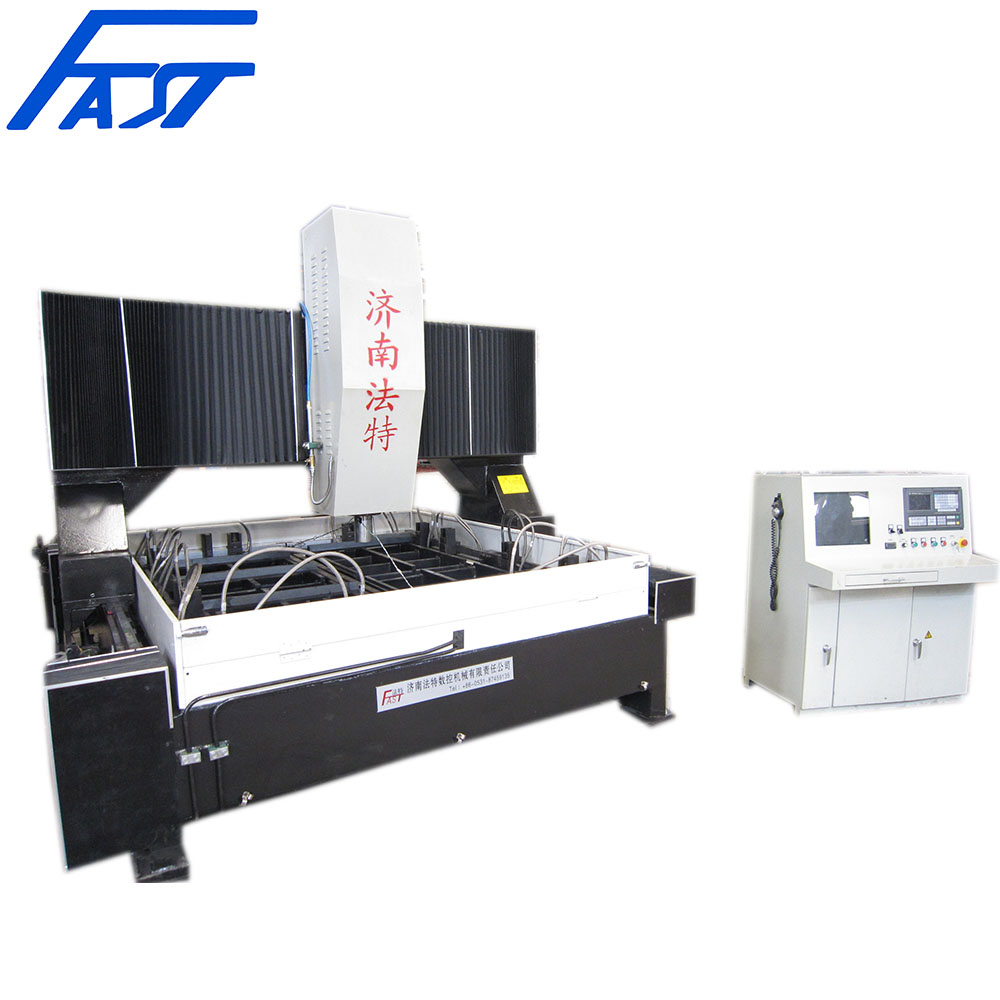

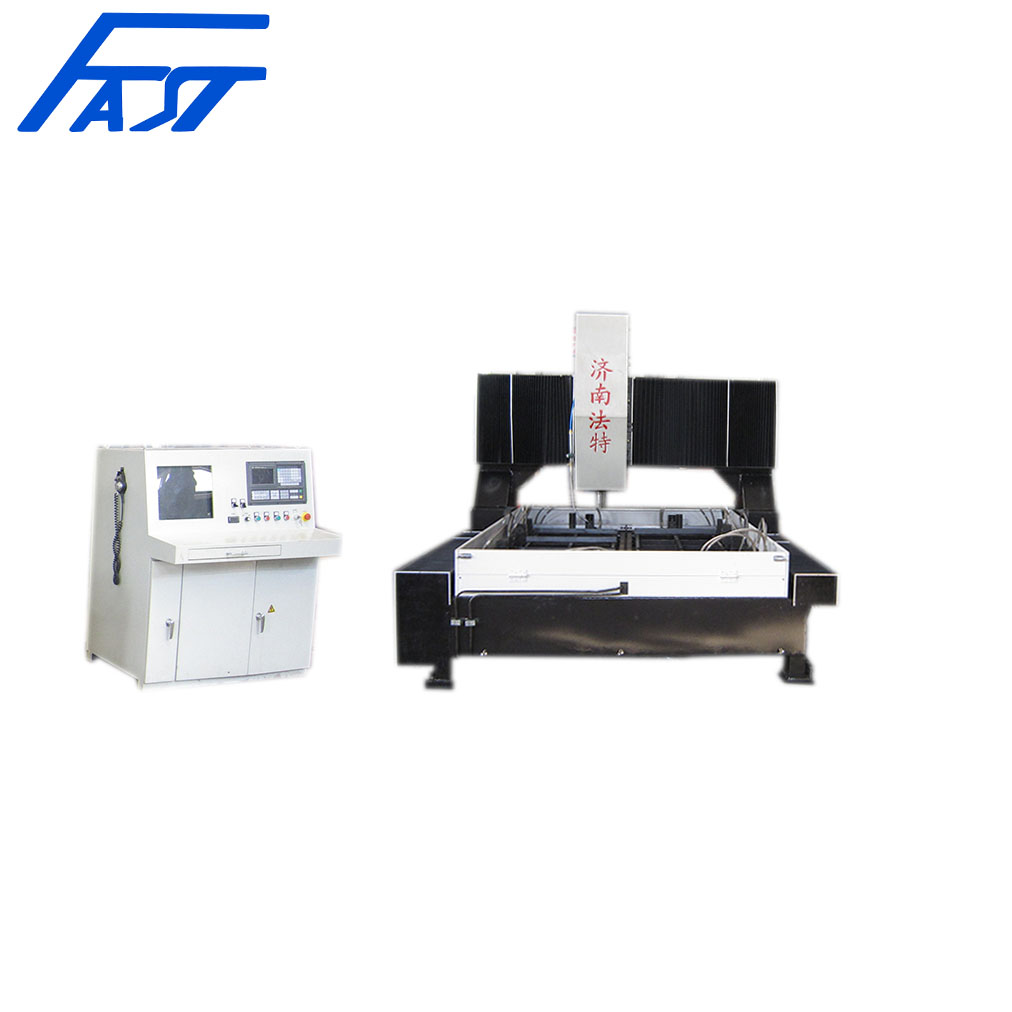

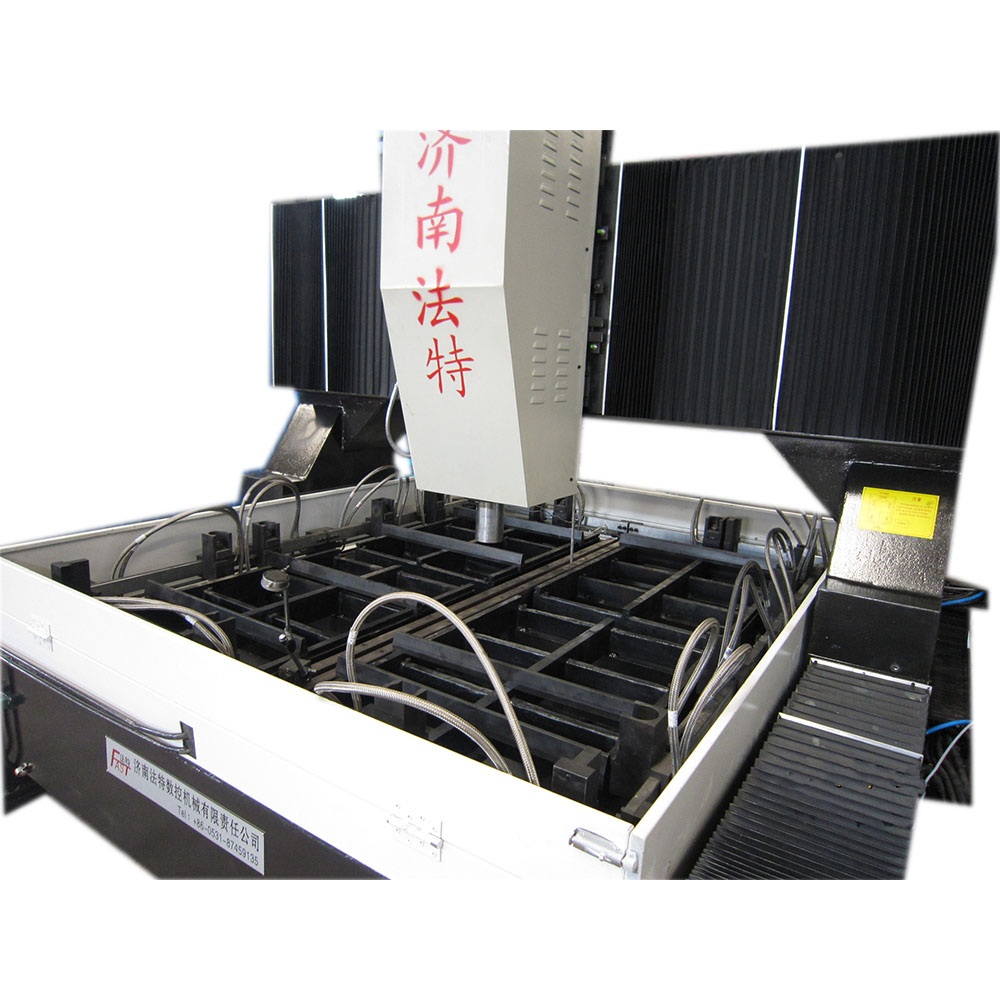

PZ Series CNC Movable Four-Tables Gantry Type Drilling Machine
  • PZ Series CNC Movable Four-Tables Gantry Type Drilling Machine
PZ Series CNC Movable Four-Tables Gantry Type Drilling Machine

Category: CNC DRILLING& MILLING

Product specifications:

  • Machine Model

    PZ1610

    PZ2016

    PA3016

    Maximum Workpiece Dimension (mm)

    One Piece 1600×1000

    One Piece 2000×1600

    One Piece 3000×1600

    Two Pieces 1000×800

    Two Pieces 1600×1000

    Two Pieces 1600×1500

    Four Pieces 800×500

    Four Pieces 1000×800

    Four Pieces 1500×800

    Maximum Workpiece Thickness(mm)

    80

    Maximum Drilling Diameter(mm)

    50

    Drilling Power Head

    Rotating Speed (r/min )

    130-560(Nonpolar Adjustable)

    Feed-in Length(mm)

    240

    Feed-in Quantity(mm/min)

    20-280

    Motor Power (Kw)

    5.5

    Hydraulic Tightenning

    Clamped Workpiece Thickness(mm)

    15-80

    Clamper Quantity

    12

    Clamp Force(KN/PC)

    7.5

    aper Hole of Spindle

    Morse 4#

    Servo Motor Power of X、Y、Z Axes (KW)

    1.5×3

    Power of Chip Removal Device (Kw)

    0.37

    0.5

    Positioning Speed of Axes(mm/min)

    8000

    Outline Dimension(L×W×H))(mm)

    2200*1400*3000

    3200*2200*3000

    4200*2200*3000

    Net Weight of the Machine(Kg)

    4000

    6500

    8000
