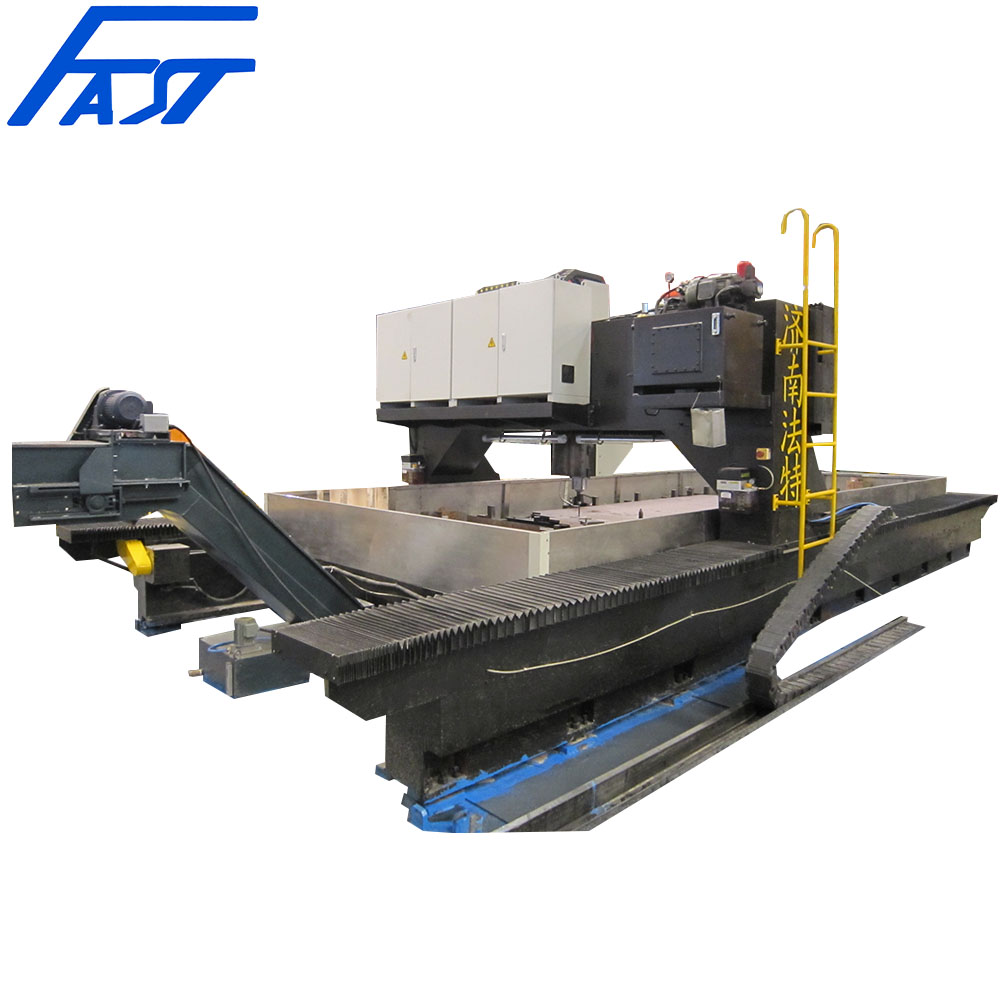

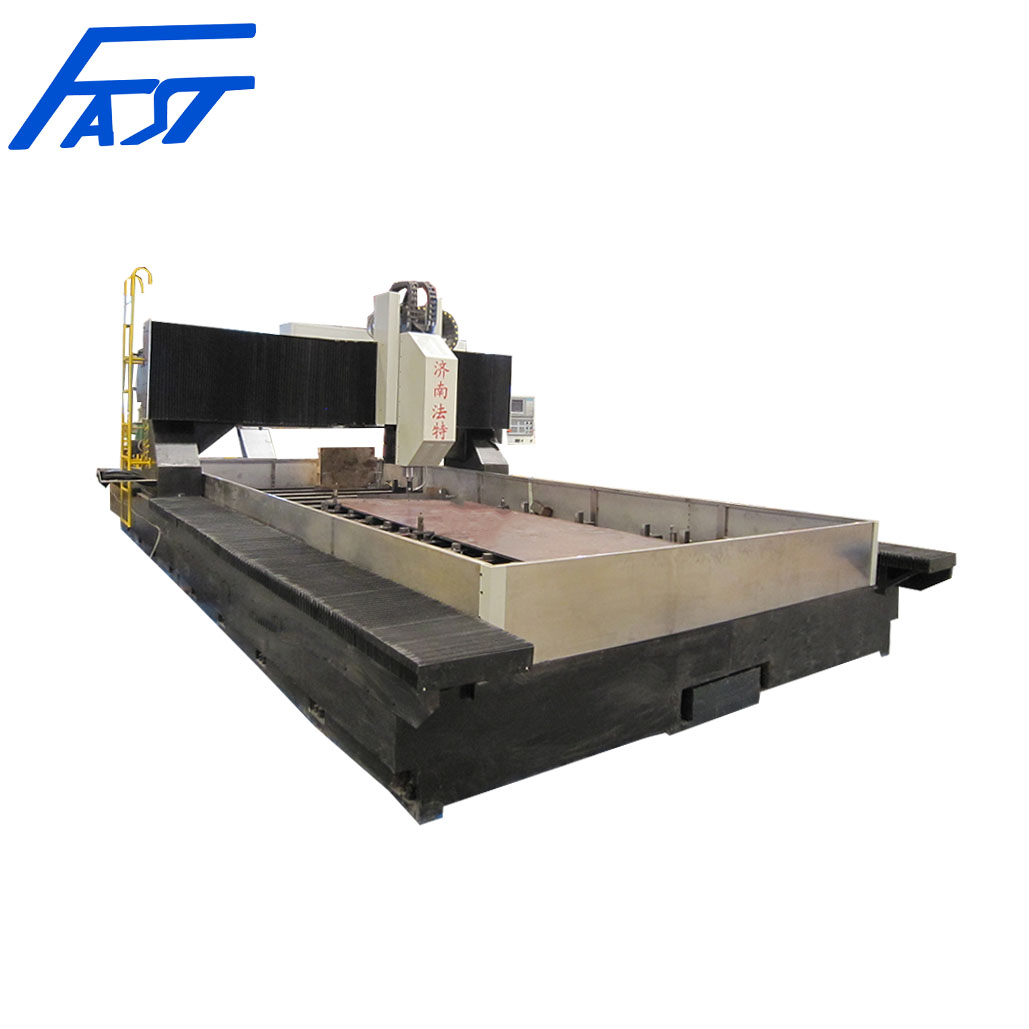

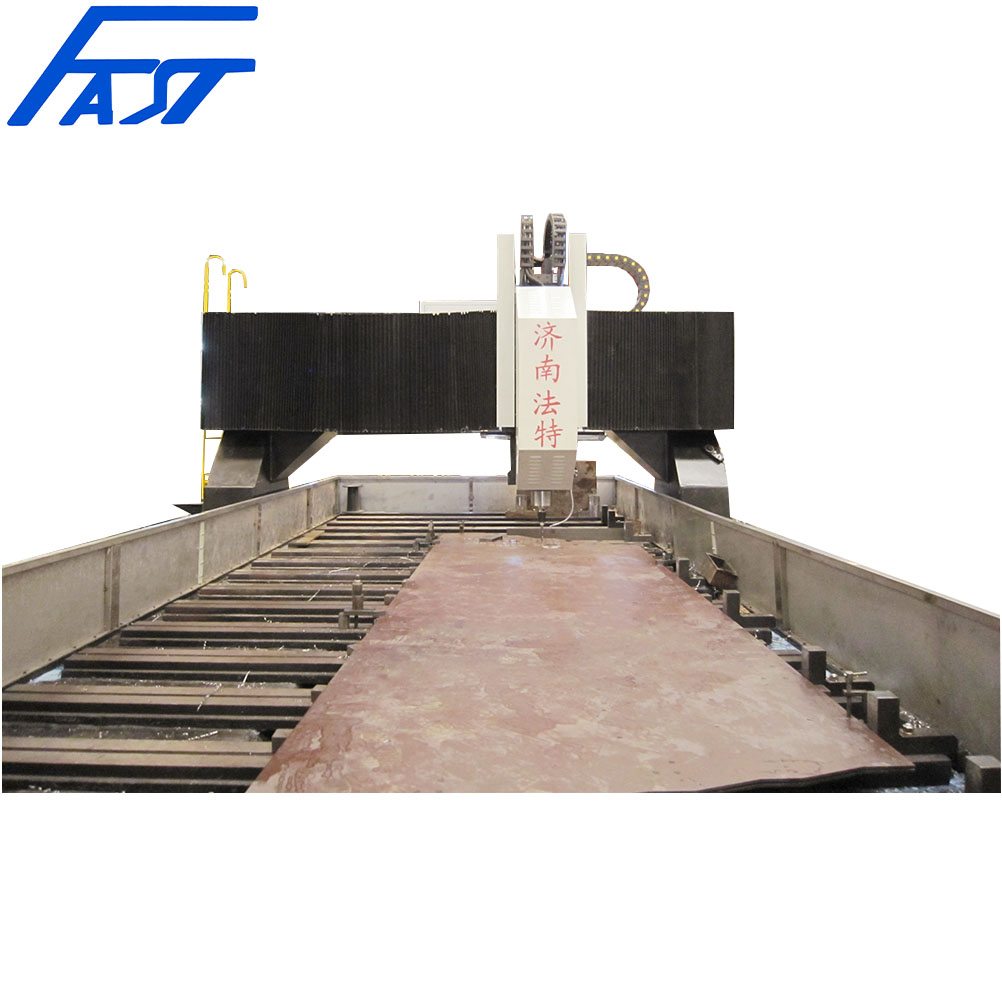

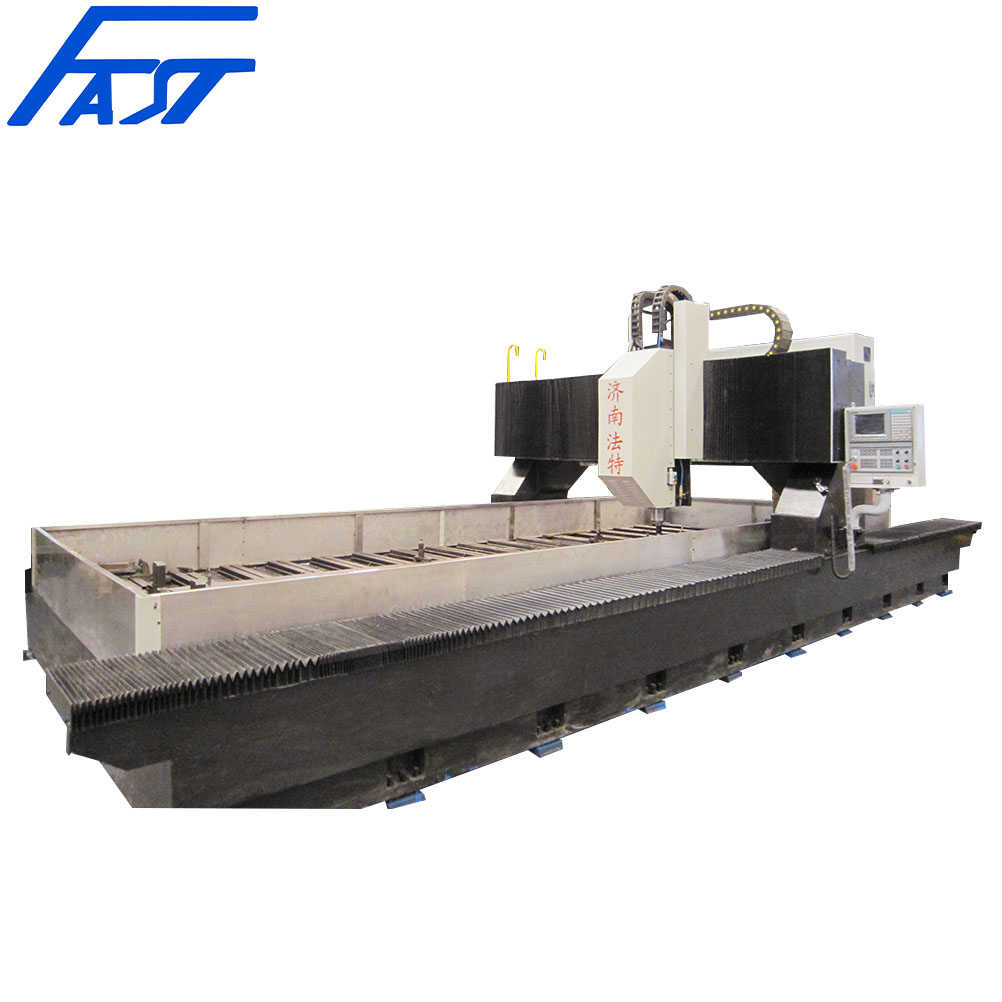

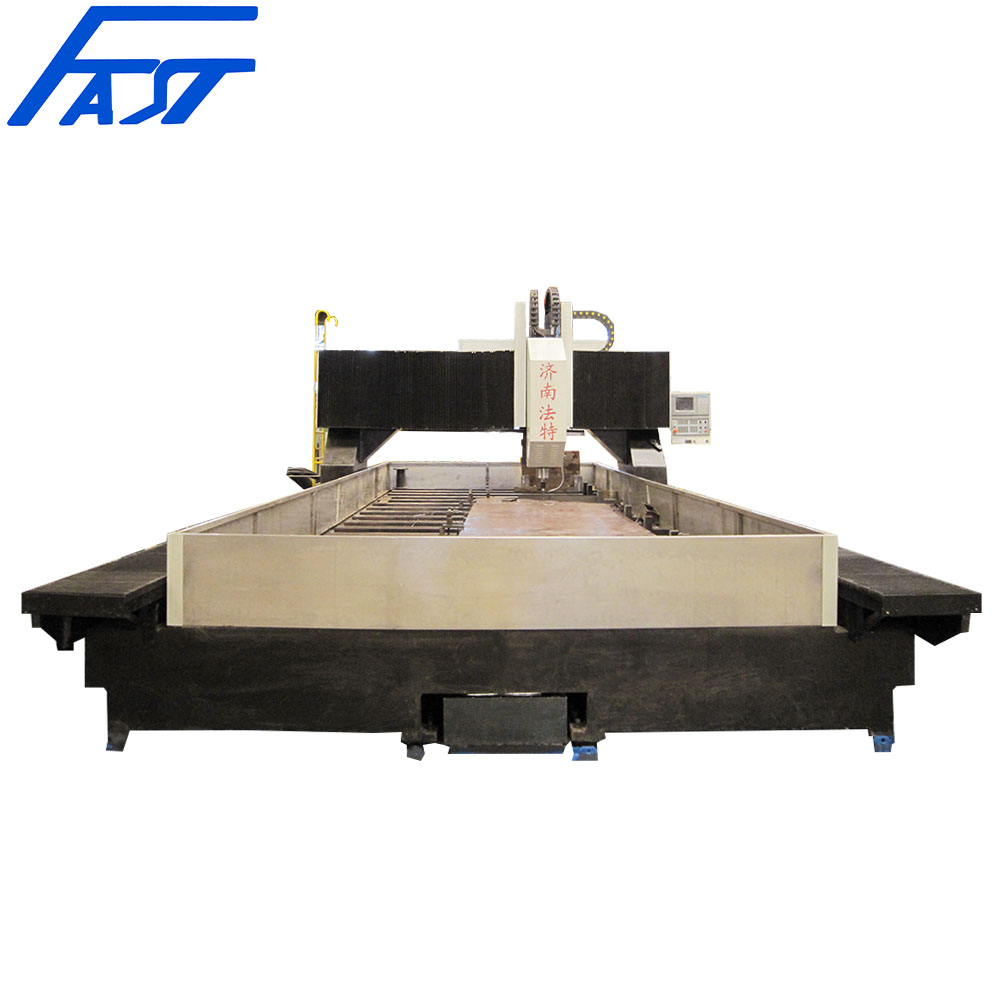

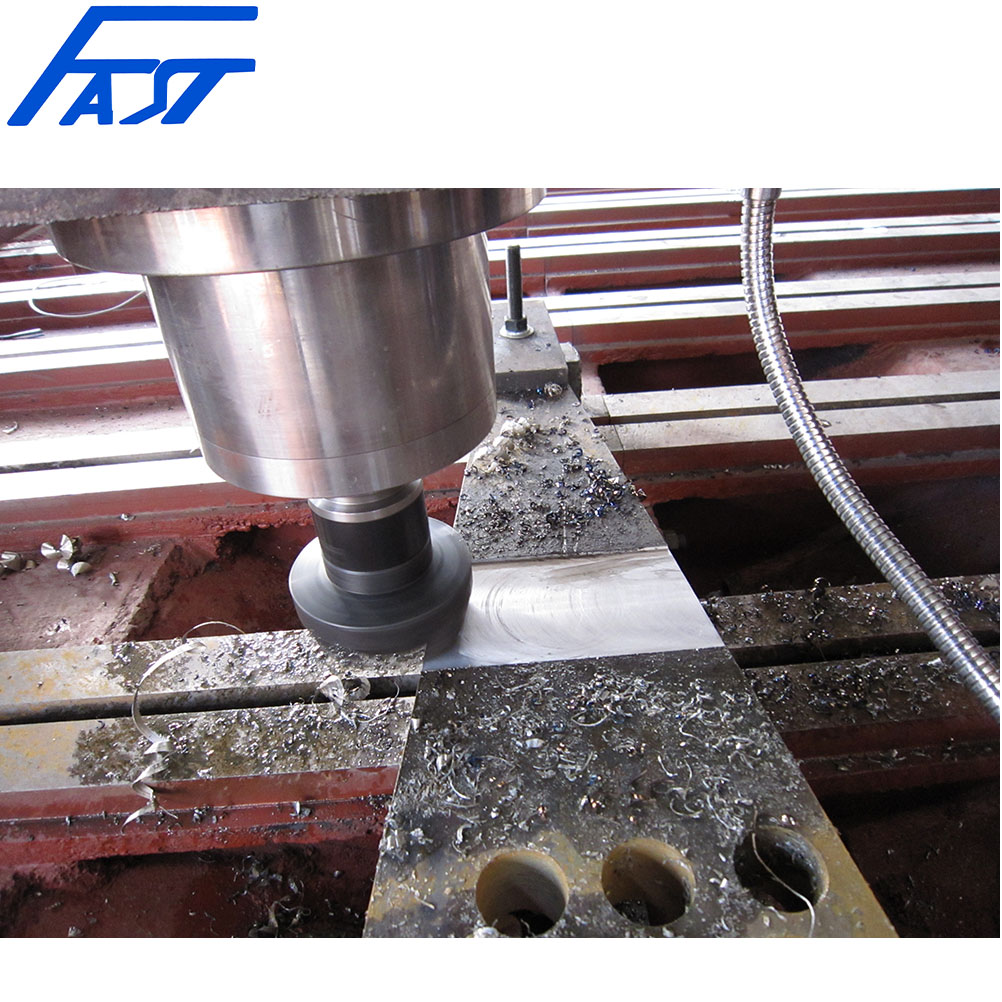

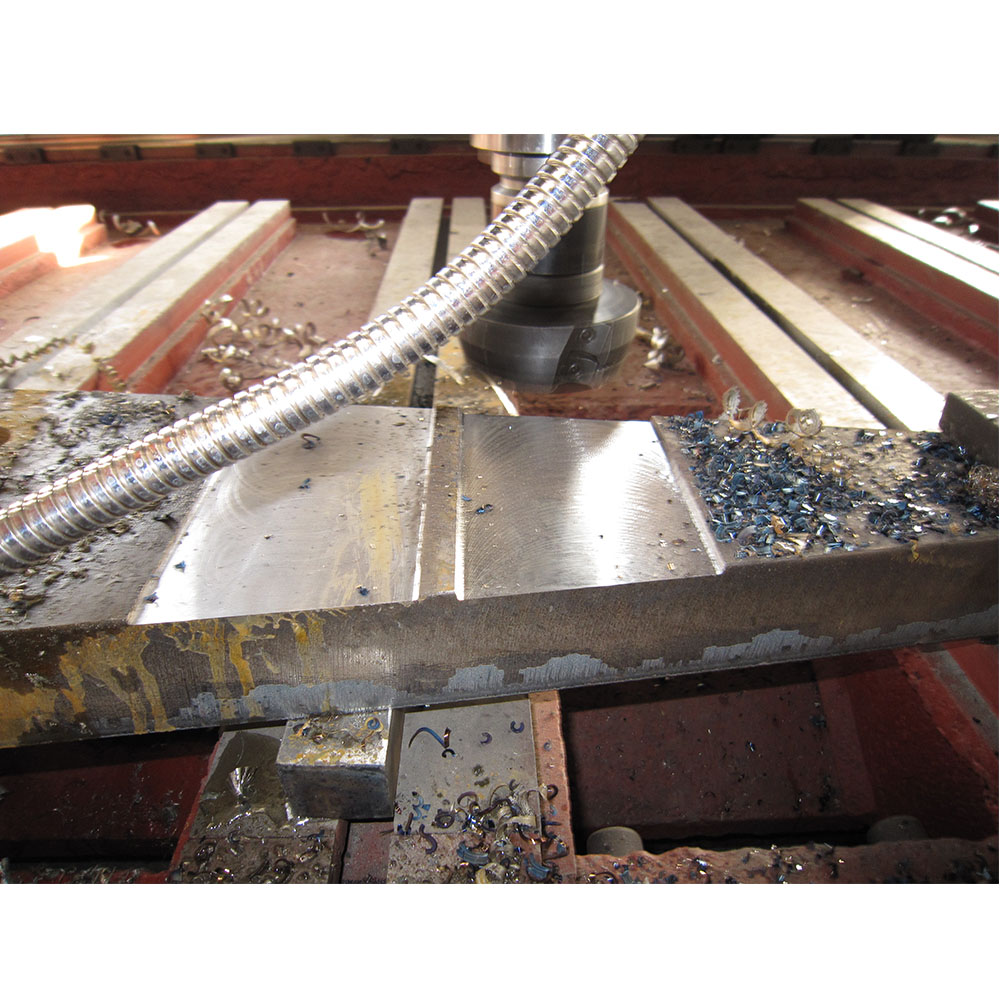

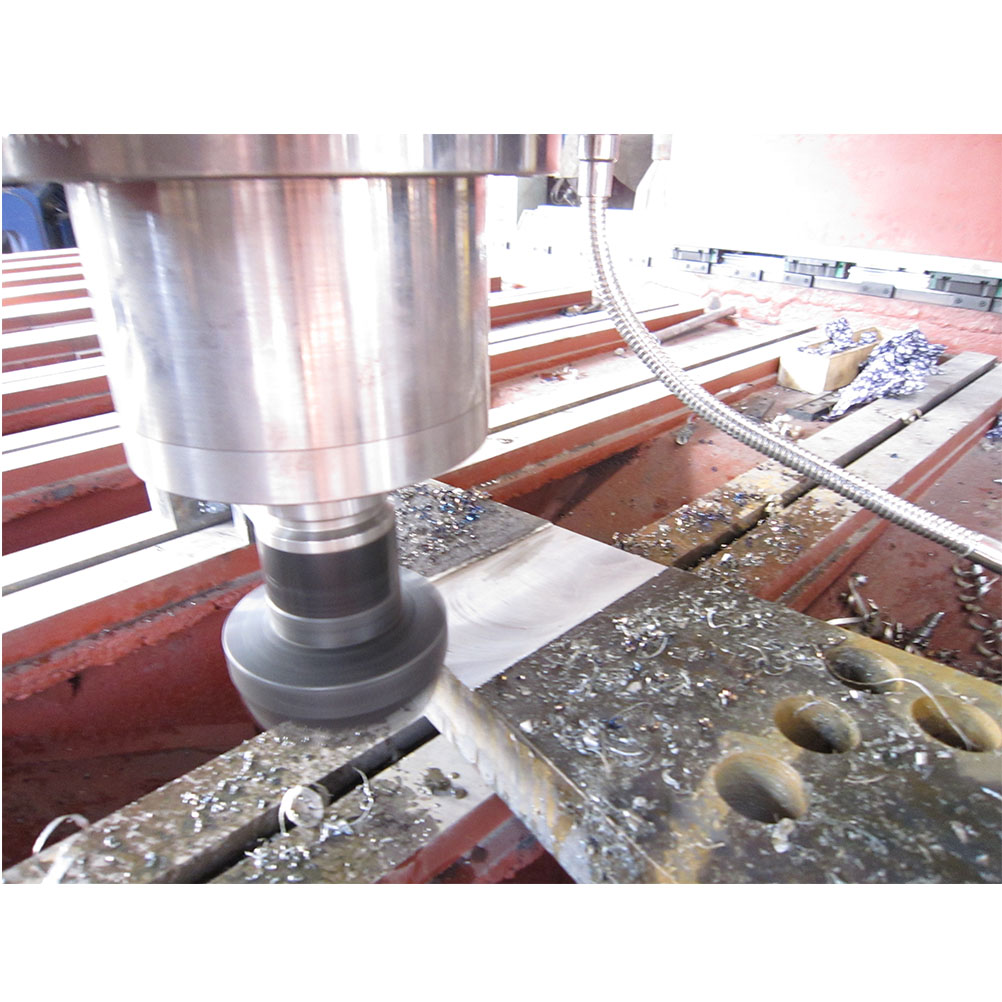

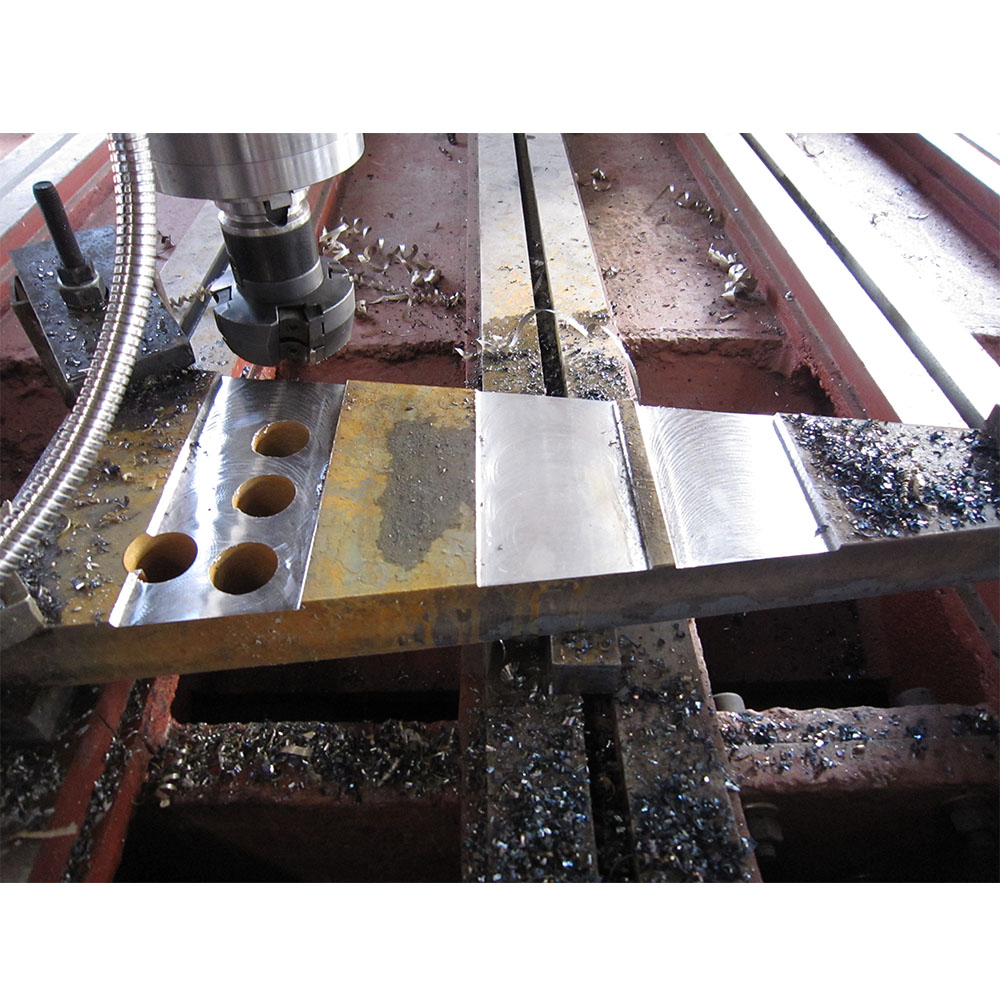

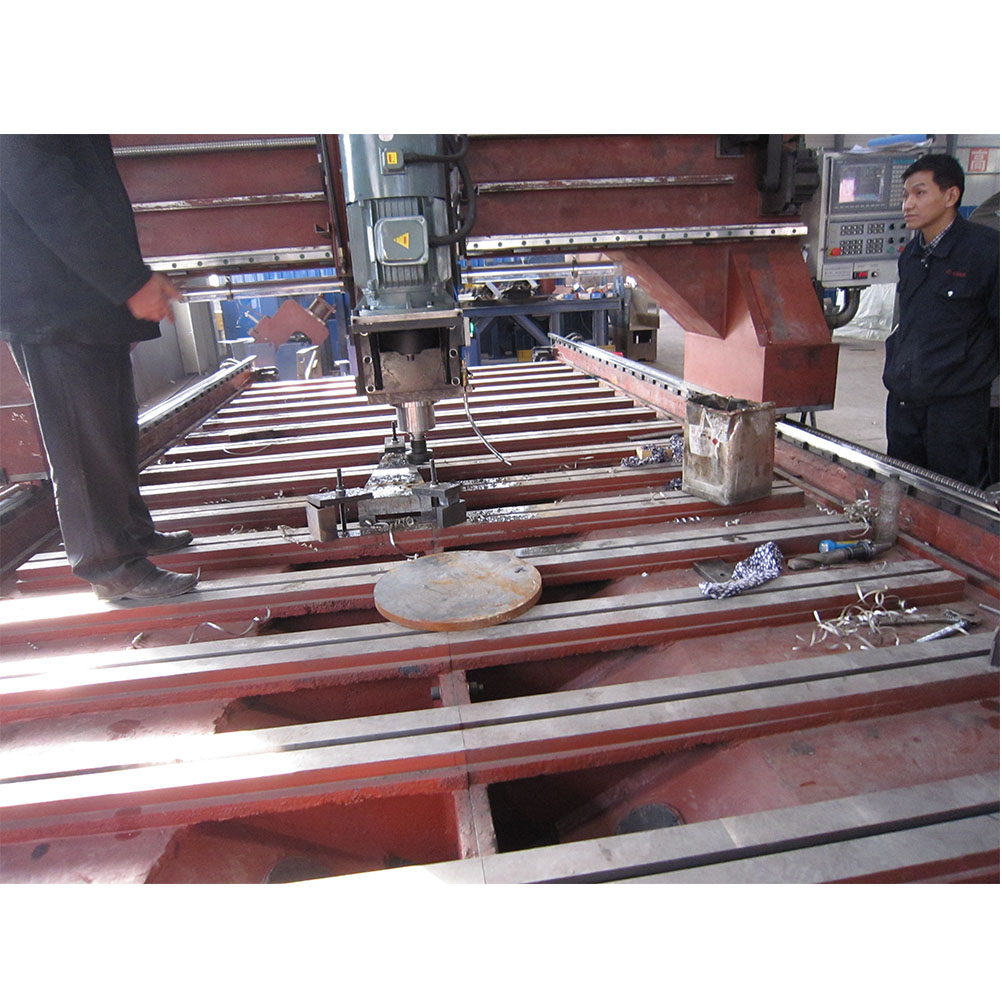

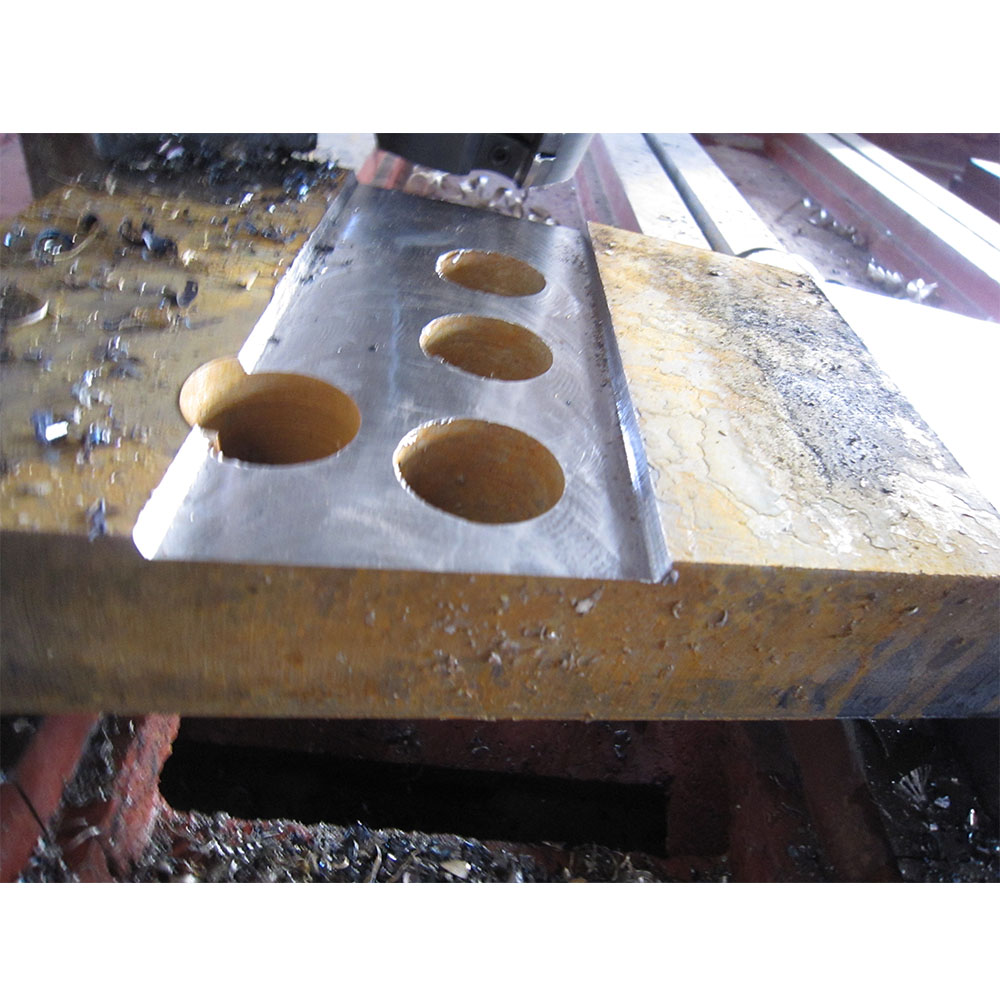

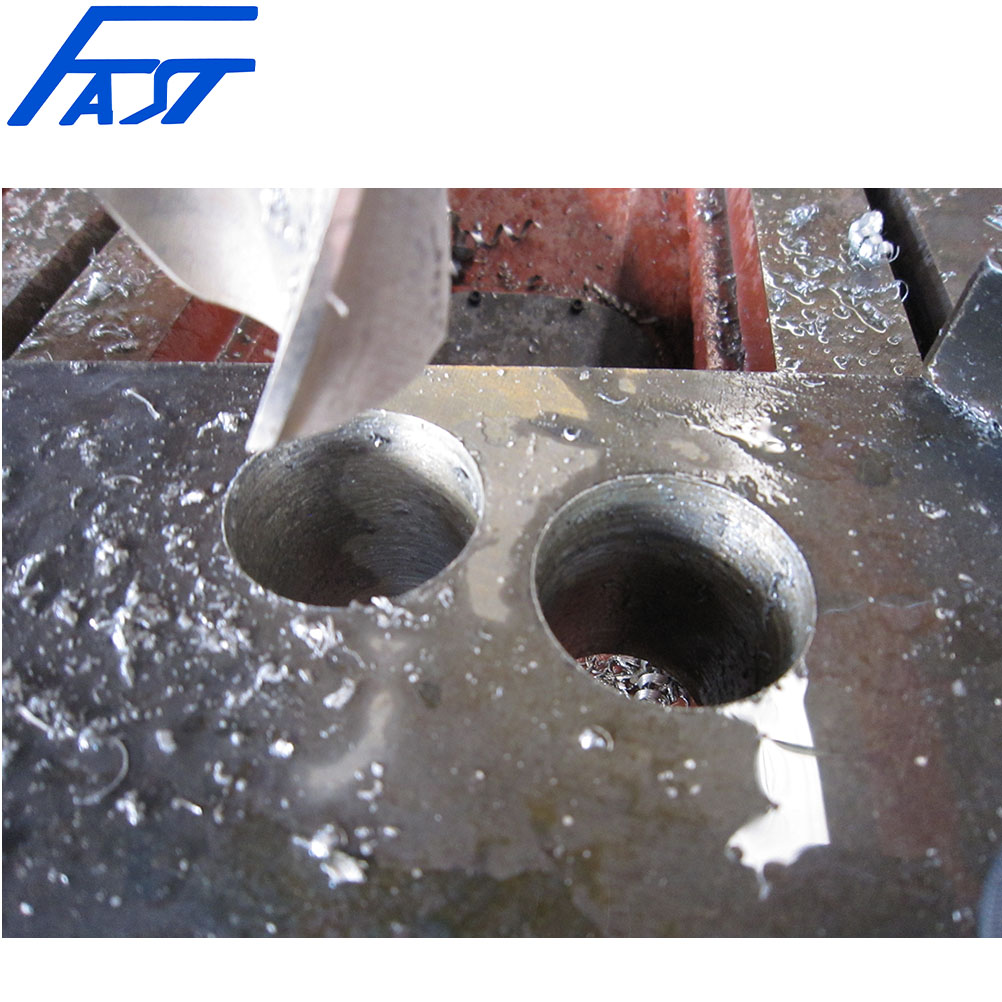

CNC Gantry Type Drilling & Milling Machine
  • CNC Gantry Type Drilling & Milling Machine
CNC Gantry Type Drilling & Milling Machine

Category: CNC DRILLING& MILLING

Product specifications:

  •              Model

    PZX1220

    PZX1630

    PZX1640

    PZX2020

    PZ2040

    PZX3030

    Processing capacity

    Work range

    1200×2000

    1600×3000

    1600×4000

    2000×2000

    2000×4000

    3000×3000

    Length×Width(mm)

    Distance between the bottom of the spindle to work table ( mm)

    150-550

    150-550

    150-550

    150-650

    150-650

    150-650

    Max drilling diameter (mm)

    Φ40

    Φ40

    Φ40

    Φ40 orΦ50

    Φ40 or Φ50

    Φ40 or Φ50

    Milling capacity (mm)

    Φ100×3

    Φ100×3

    Φ100×3

    Φ100×3 or

    Φ100× or

    Φ100×3 or

    Φ200×5

    Φ200×5

    Φ200×5

    Φ100×3 or

    Φ100×3 or

    Φ100×3 or

    Φ200×5

    Φ200×5

    Φ200×5

    Work table

    Width of T-slot (mm)

    22

    28

    28

    28

    28

    28

    Drilling and milling power head

    CNC axis

    4

    4

    4

    4

    4

    4

    Quantity

    1

    1

    1

    2

    2

    2

    Spindle taper hole

    BT40

    BT40

    BT40

    BT40 or BT50

    BT40 or BT50

    BT40 or BT50

    BT40 or BT50

    BT40 or BT50

    BT40 or BT50

    Rotating speed of spindle (r/min)

    30-1000

    30-1000

    30-1000

    30-1000

    30-1000

    30-1000

    Motor power of spindle(kw)

    11

    11

    11

    11 or 22

    11 or 22

    11 or 22

    Max stroke(mm)

    2000

    3000

    4000

    2000

    3000

    3000

    Longitudinal movement X axis

    Movement speed of X axis(mm/min)

    0—6000

    0—8000

    0—8000

    0—8000

    0—8000

    0—8000

    Servo motor power of X axis(kw)

    2×2

    2×2

    2×2

    3×2 or 5×2

    3×2 or 5×2

    3×2 or 5×2

    Transverse movement stroke Y axis mm

    Max stroke(mm)

    1200

    1600

    1600

    2000

    3000

    3000

    Movement speed of  Y axis(mm/min)

    0—8000

    0—8000

    0—8000

    0—8000

    0—8000

    0—8000

    Servo motor power of Y axis(kw)

    3

    3

    3

    3 or 5

    3 or 5

    3 or 5

    Vertical stroke of power head Z axis mm

    Max stroke(mm)

    400

    400

    400

    500

    500

    500

    Feed speed of Z axis(mm/min)

    0—4000

    0—4000

    0—4000

    0—4000

    0—4000

    0—4000

    Servo motor power of Z axis

    3

    3

    3

    3 or 5

    3 or 5

    3 or 5

    Positioning accuracy

    XYZ axis (mm)

    ≤0.05

    ≤0.05

    ≤0.05

    ≤0.05

    ≤0.05

    ≤0.05

    Re-positioning accuracy

    ≤0.03

    ≤0.03

    ≤0.03

    ≤0.03

    ≤0.03

    ≤0.03

    Optional item

    Right angle milling head or universal milling head can realize 5 face machining.
