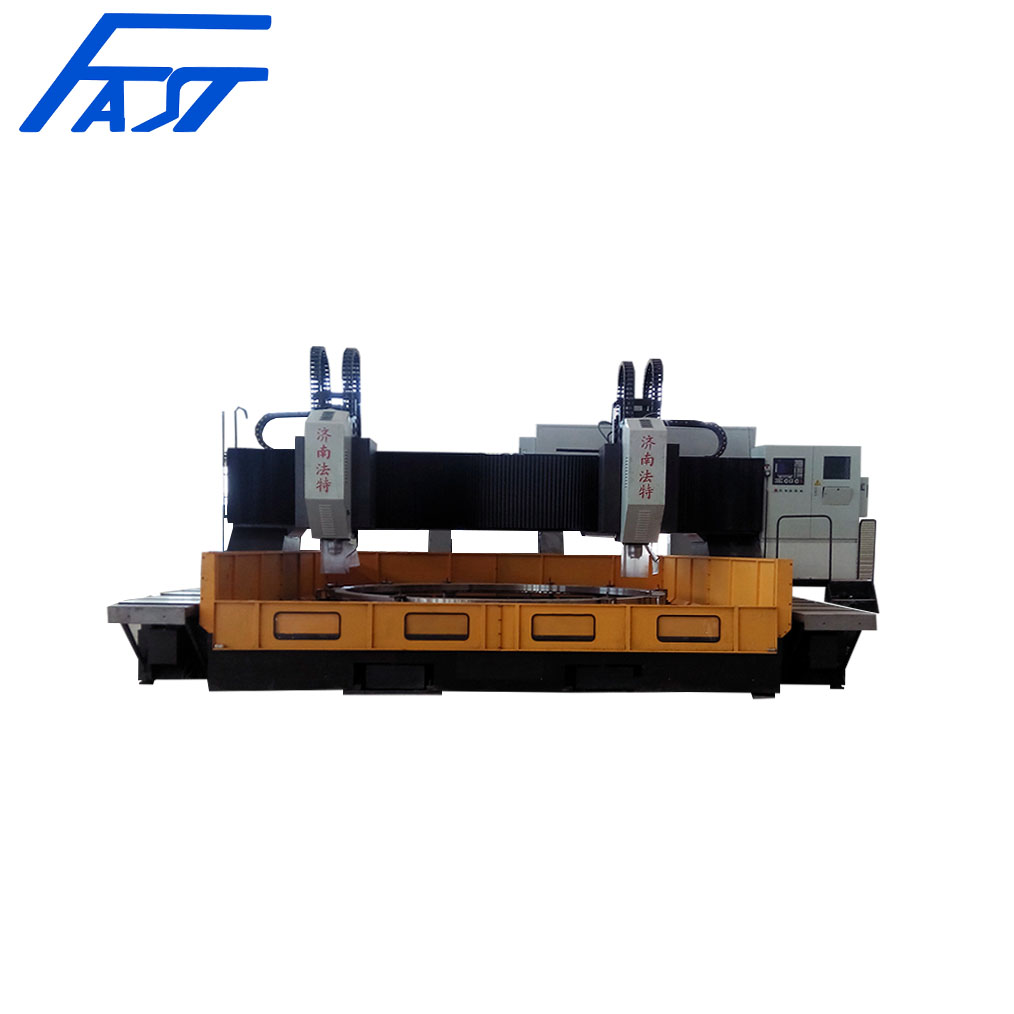

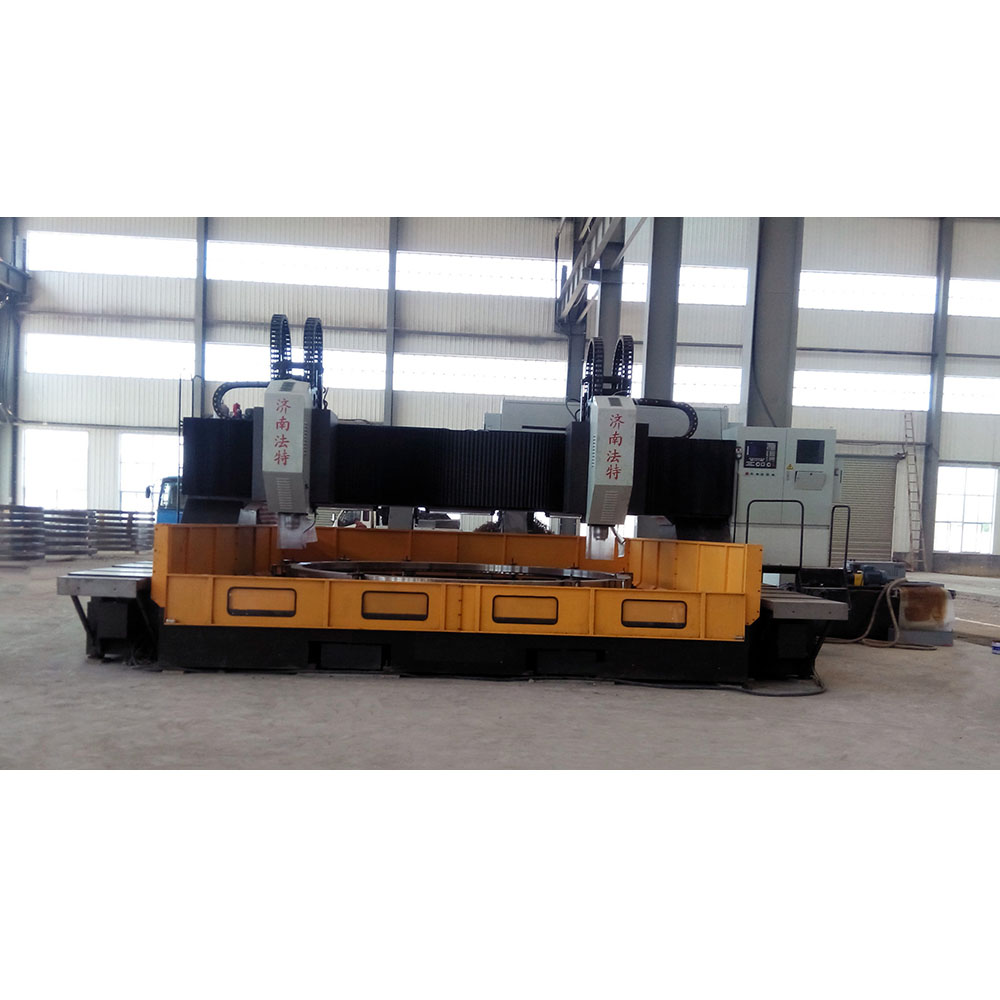

CNC DRILLILNG MACHINE FOR TUBE SHEET/ FLANGE
  • CNC DRILLILNG MACHINE FOR TUBE SHEET/ FLANGE
CNC DRILLILNG MACHINE FOR TUBE SHEET/ FLANGE

Category: CNC DRILLING& MILLING

Product specifications:

  • Model

    PZ2020G

    PZ3030G

    PZ4040G

    PZ5050G

    Type of the machine

    Movable    gantry type(the guide screw of axis on top side)

    Processing

    Processing range(L*X)

    2000*2000

    3000×3000

    4000×4000

    5000×5000

    Capacity(MM)

    distance between the bottom of the spindle to work table

    230-730

    Max drilling depth

    Φ50

    Φ50

    Φ50

    Φ50

    Max drilling depth

    250mm

    Milling

    Φ100mmcutter head, depth 2mm (material Q345)

    Drilling power head

    Type of power head

    Ram type servo control power head

    Quantity

    1

    1or2

    2

    2

    Type of connection mold of spindle

    Bt50 cutter head

    Type of clamp

    Pull rod butterfly spring device (hydraulic marking)

    Rotating speed of spindle(r/min)

    30-2400

    Motor power of spindle(kw)

    22

    22or 22*2

    Positioning accuracy(mm)

    X、Y、Z (mm)

    ≤0.04

    Re-positioning accuracy (mm)

    axis

    ≤0.03

    verticality of spindle to work table (mm)

    ≤0.03/300

    Run out of the bottom of spindle and the side of spindle(mm)

    ≤0.02

    Total weight of the machine(t)

    24

    35

    56

    70

    Outline dimension (L*W*H)(mm)

    4600*4200*3900

    5800*5520*3900

    7600*6540*3900

    9200*8500*4300
