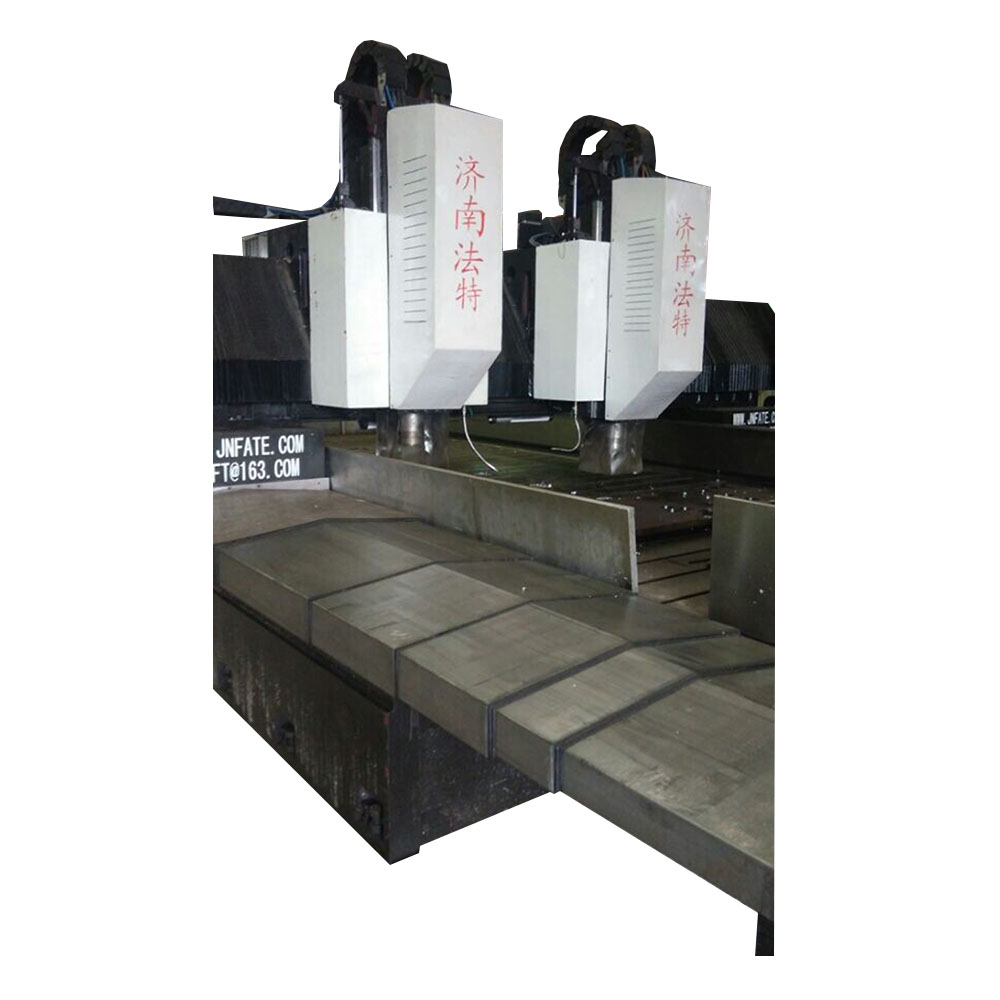

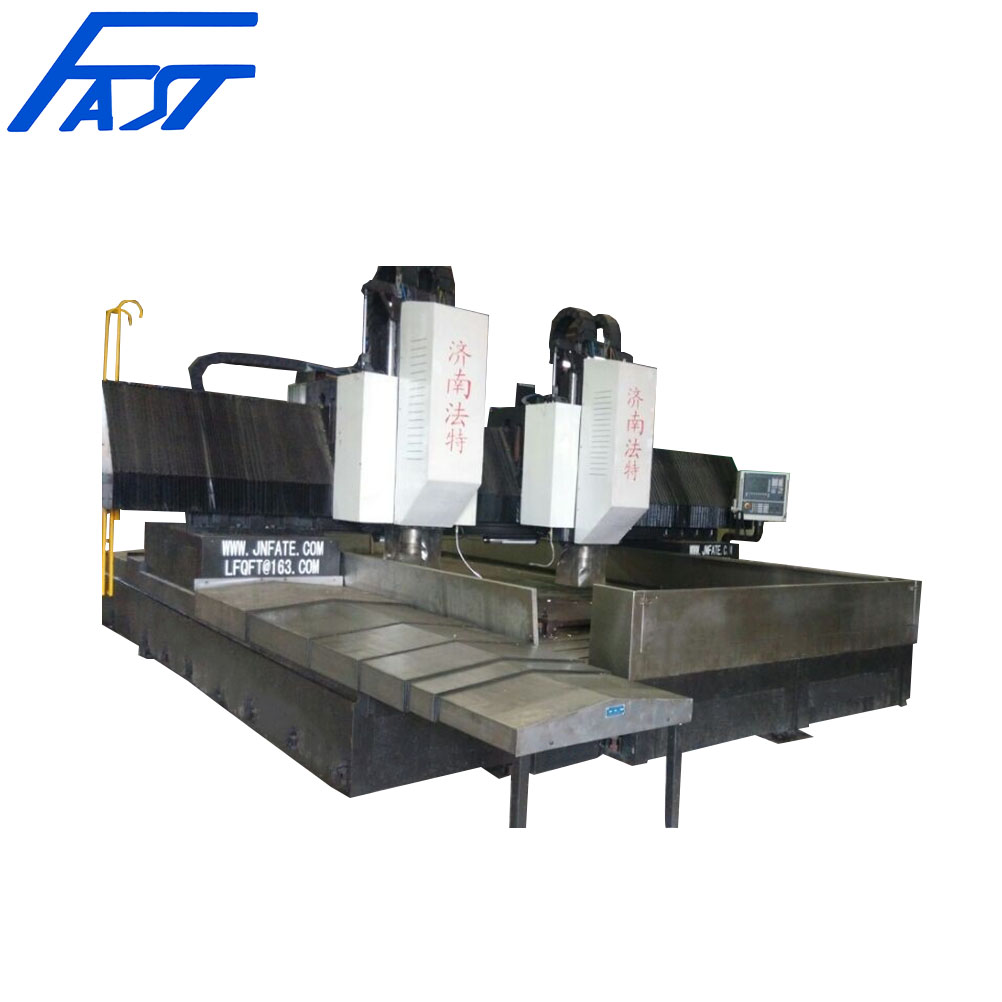

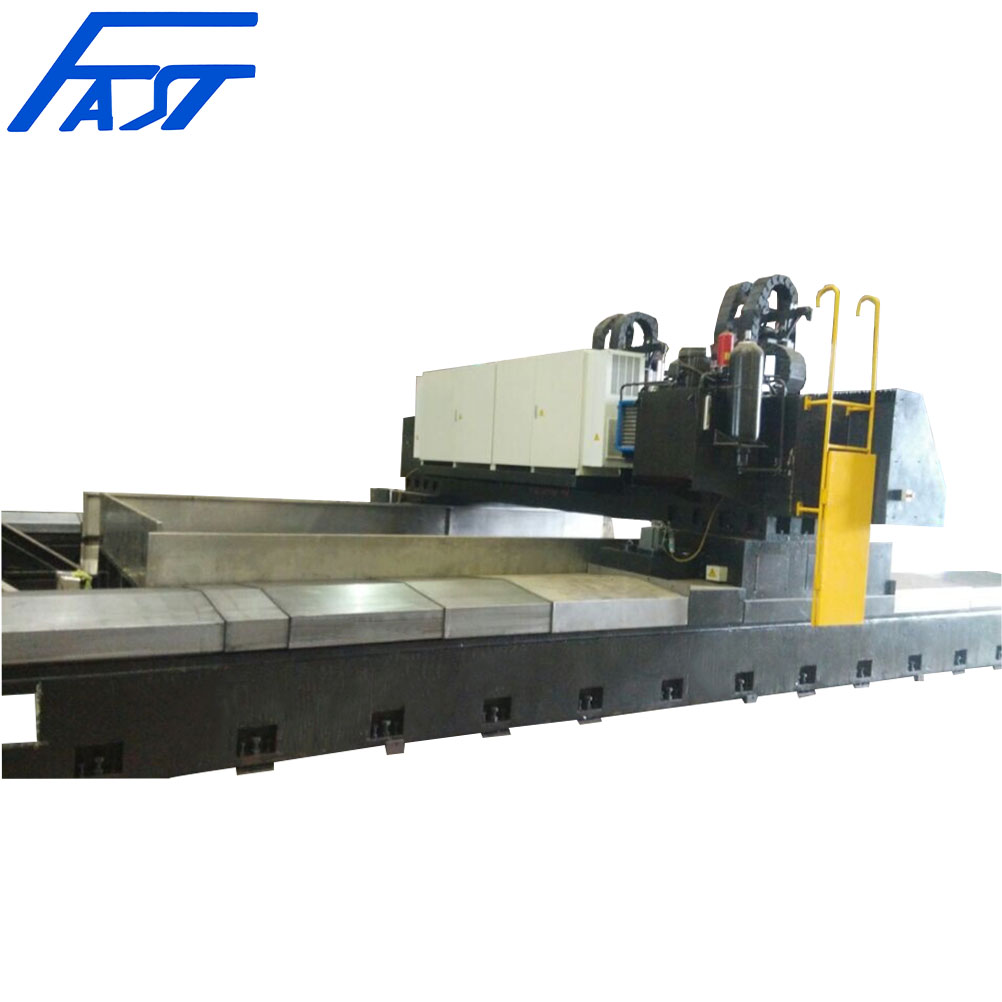

PZ7630G HIGH SPEED CNC DRILLILNG MACHINE FOR TUBESHEET/ FLANGE

Category:PLATE DRILLING MILLING MACHINE

Product specifications:

CNC drilling machine, High-speed drilling machine, High-speed plane drill machine, High speed plate drilling machine

  • HIGH SPEED CNC DRILLILNG MACHINE FOR TUBESHEET/ FLANGE PZ7630G



    APPLICATION:

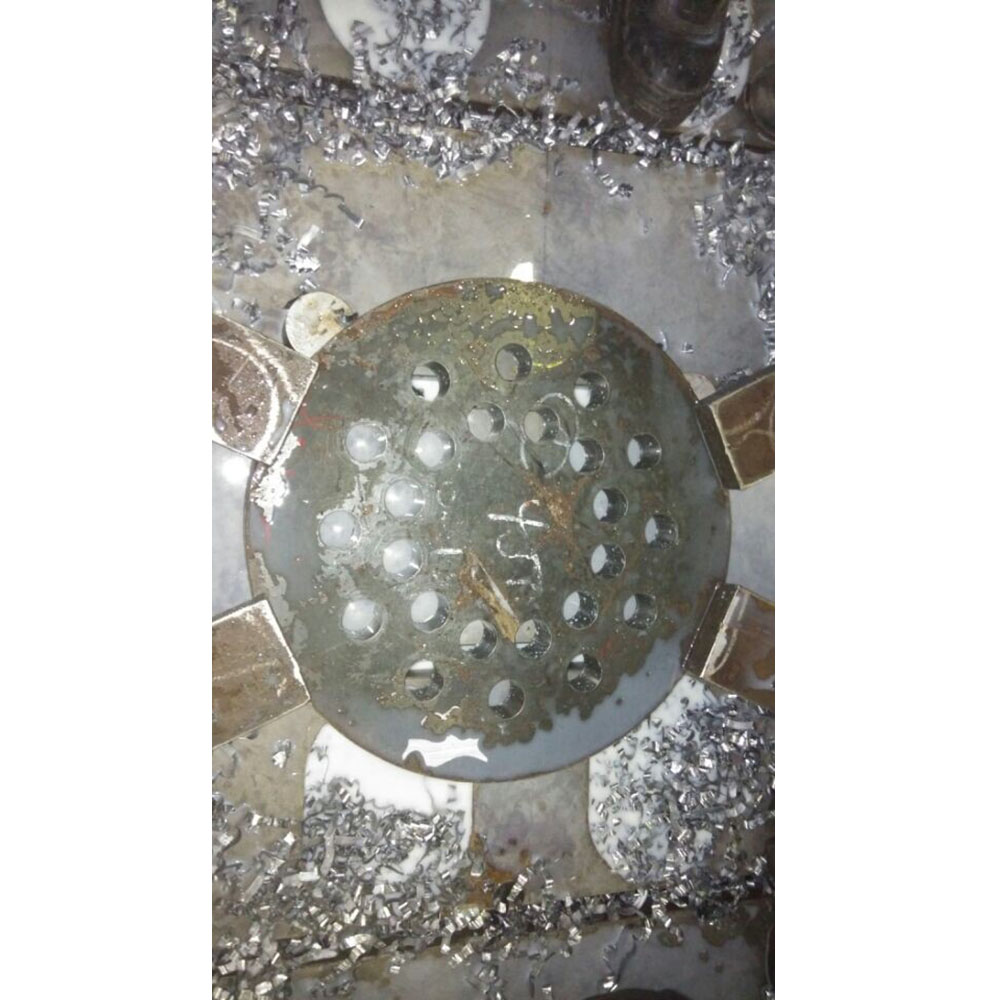

    This machine is used for the drillingtapping and milling for tube plate, clapboardflange and rings. It is used in petrochemical, boiler, and wind power flange industries, also for joint plates in building, bridge, iron tower, etc. It is suitable for carbon steel or composite materials. Carbide milling cutter or high speed steel twist drill bit are adopted. Digital control can realize automation, high precision, varieties, batch production.


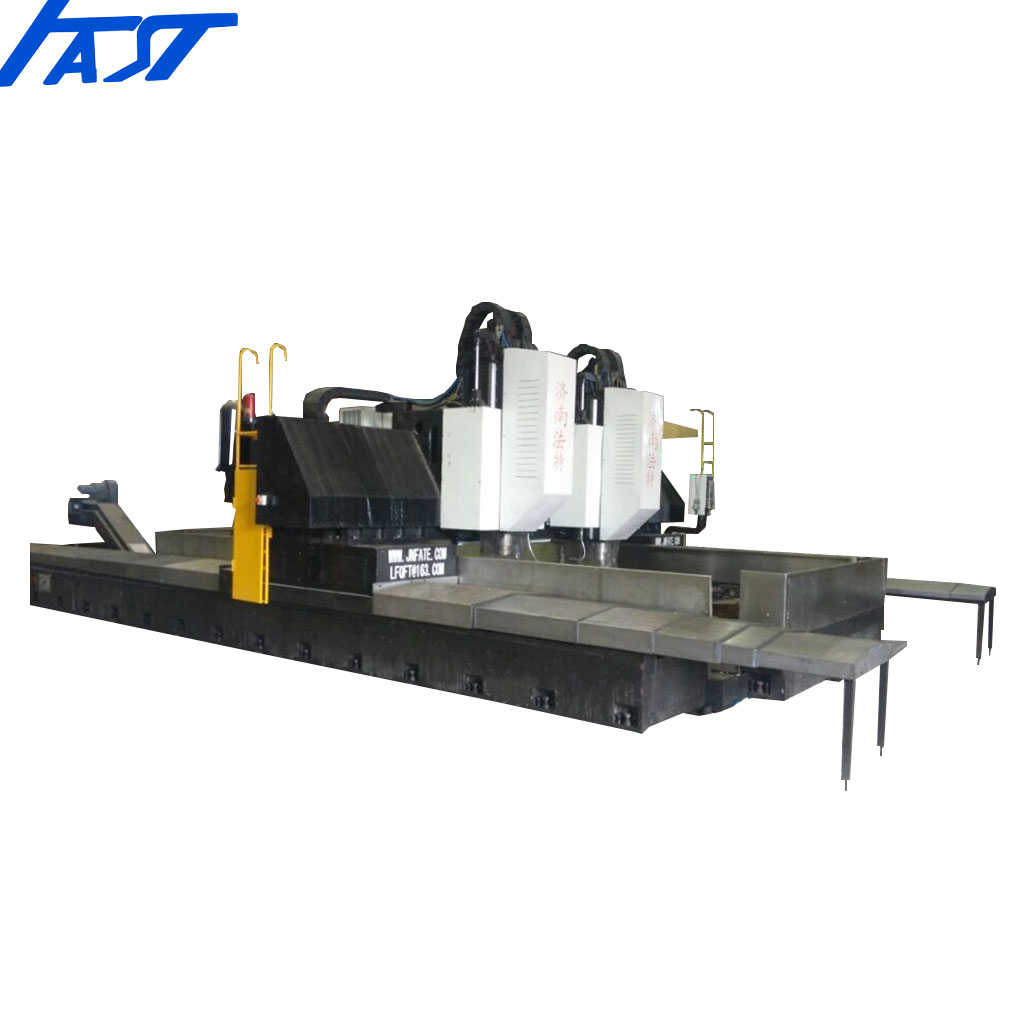

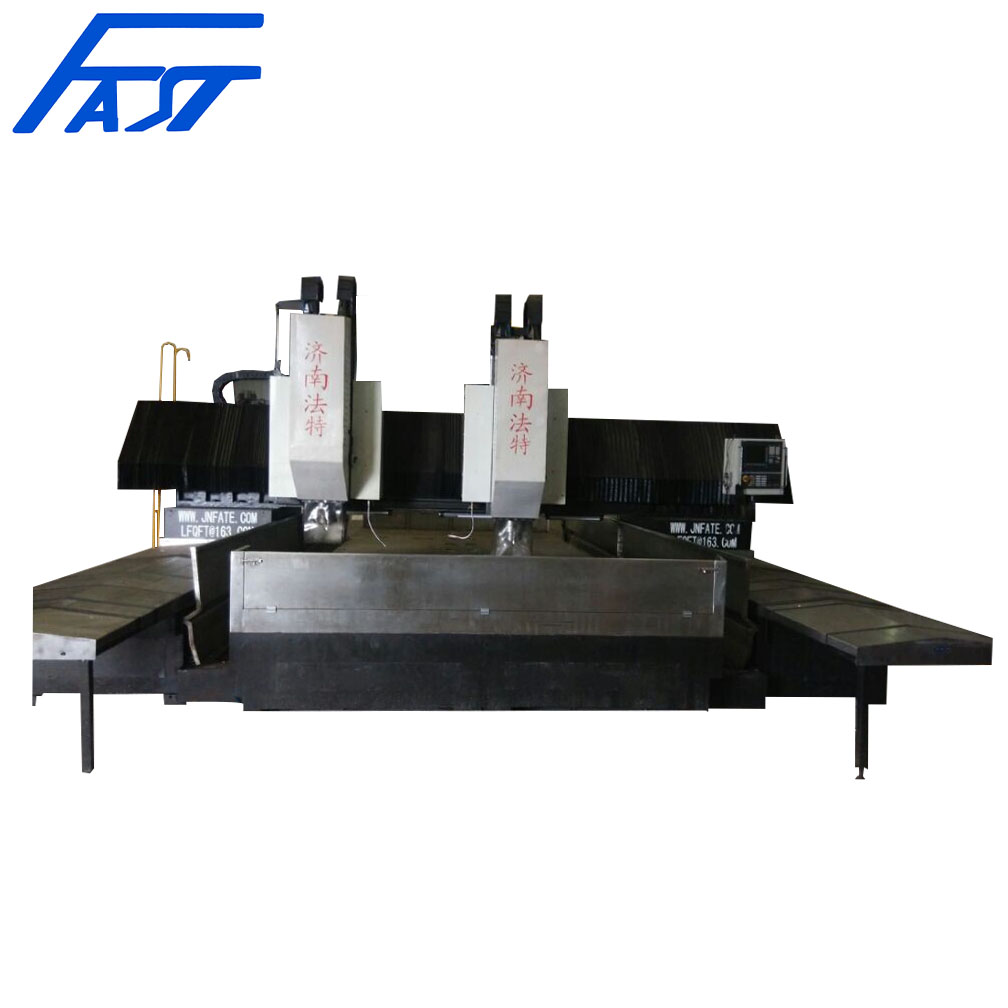

    COMPOSITION

    Left and right gantry base

    Worktable

    Longitudinal movable gantry

    Transverse movable saddle

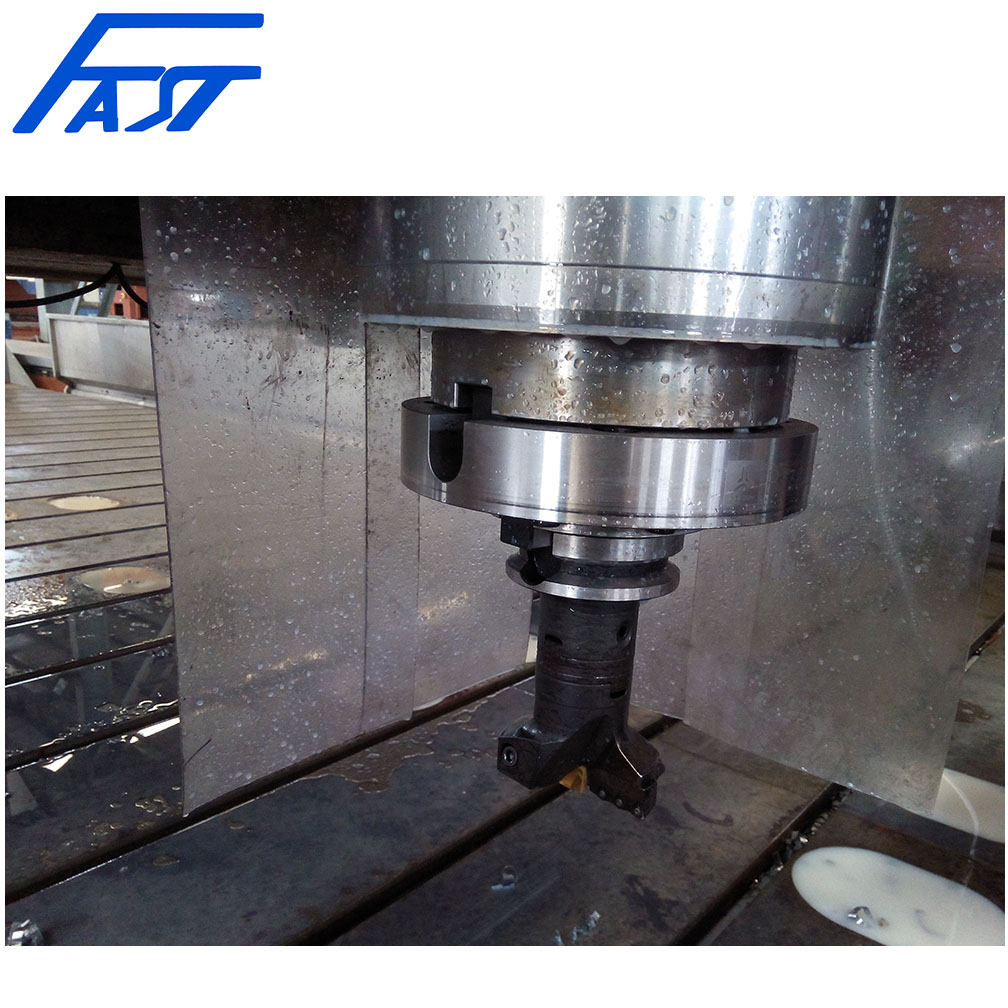

    Vertical sliding pillow drilling power head

    Automatic chip removal

    Circulating cooling unit

    Hydraulic system

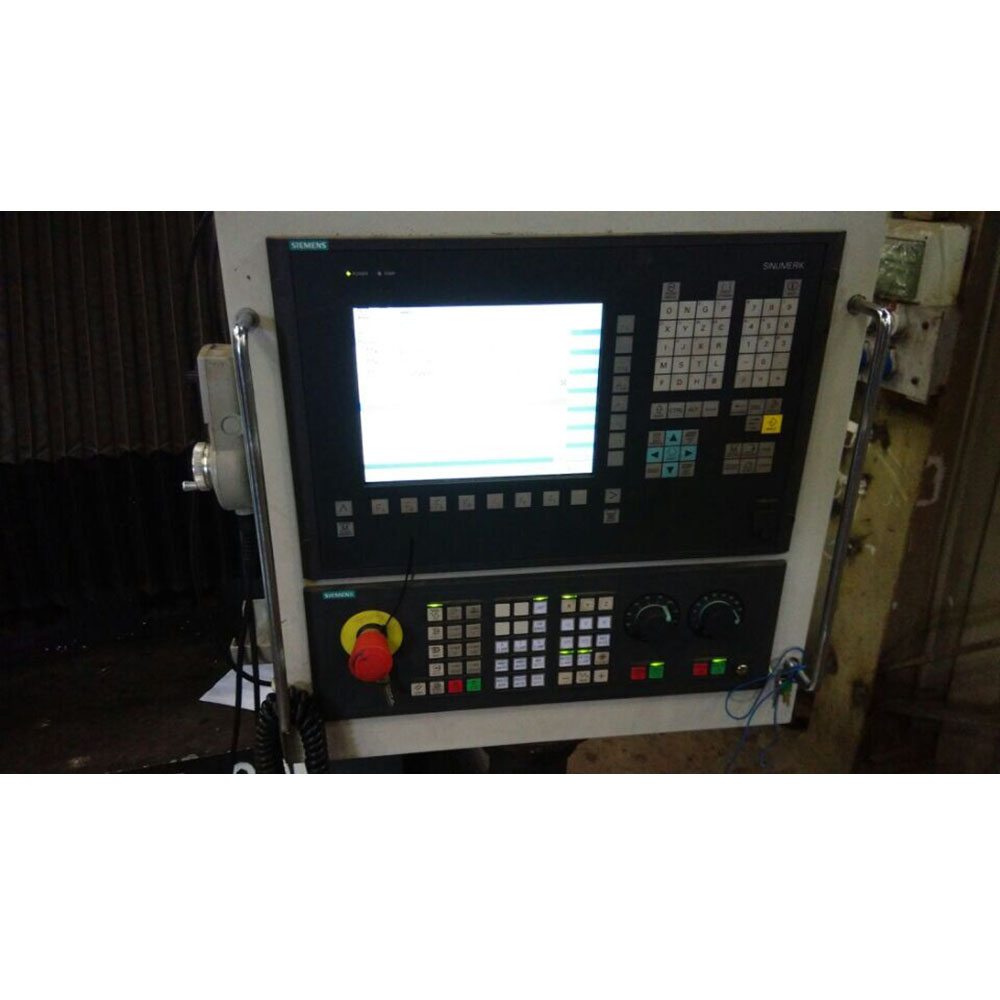

    Electric System


    TECHNICAL DATA

    Model

    PZ2020G

    PZ3030G

    PZ4040G

    PZ5050G

    PZ6060G

    Max. Size of Work piece(mm)

    Max.Hole Distance L×W (mm)

    2000*2000

    3000*3000

    4000*4000

    5000*5000

    6000*6000

    Max. Thickness (mm)

    250

    250

    250

    250

    250

    The Distance Between The Lower Part of The Axes and the Work

    Bench(mm)

    230~730

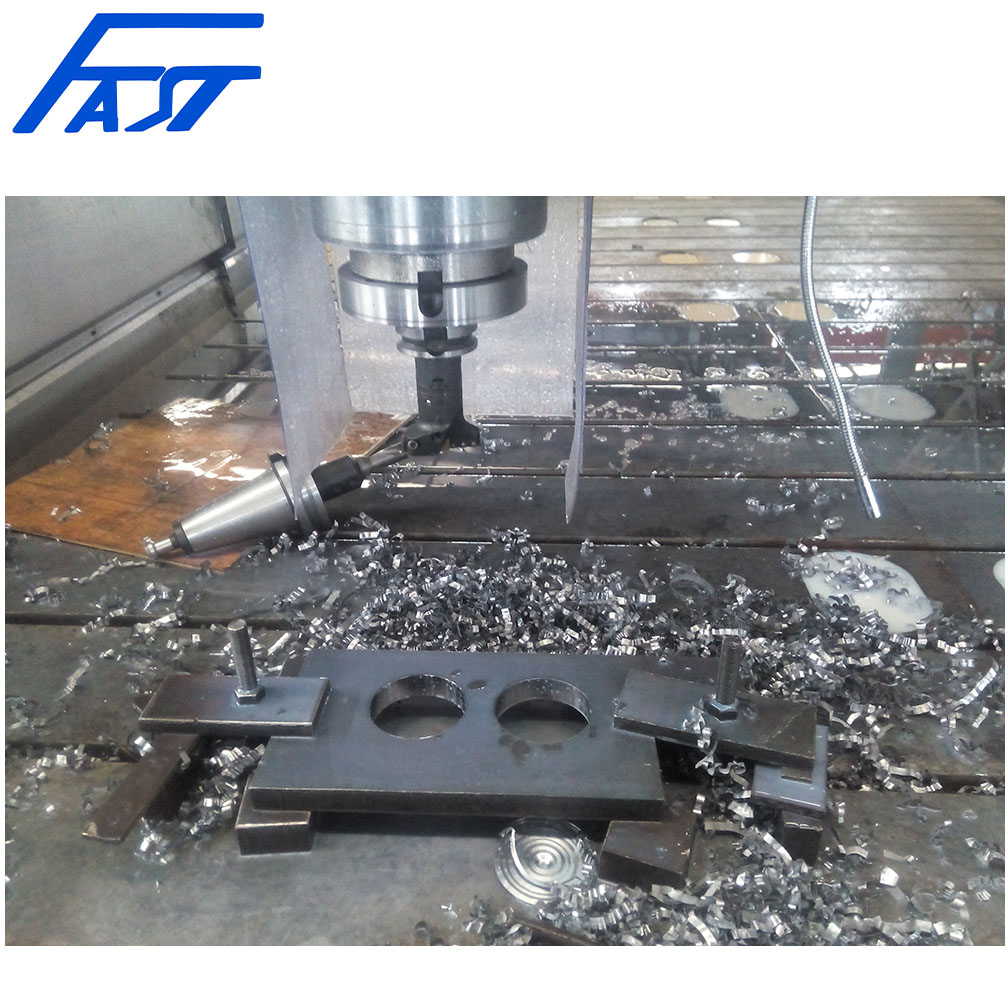

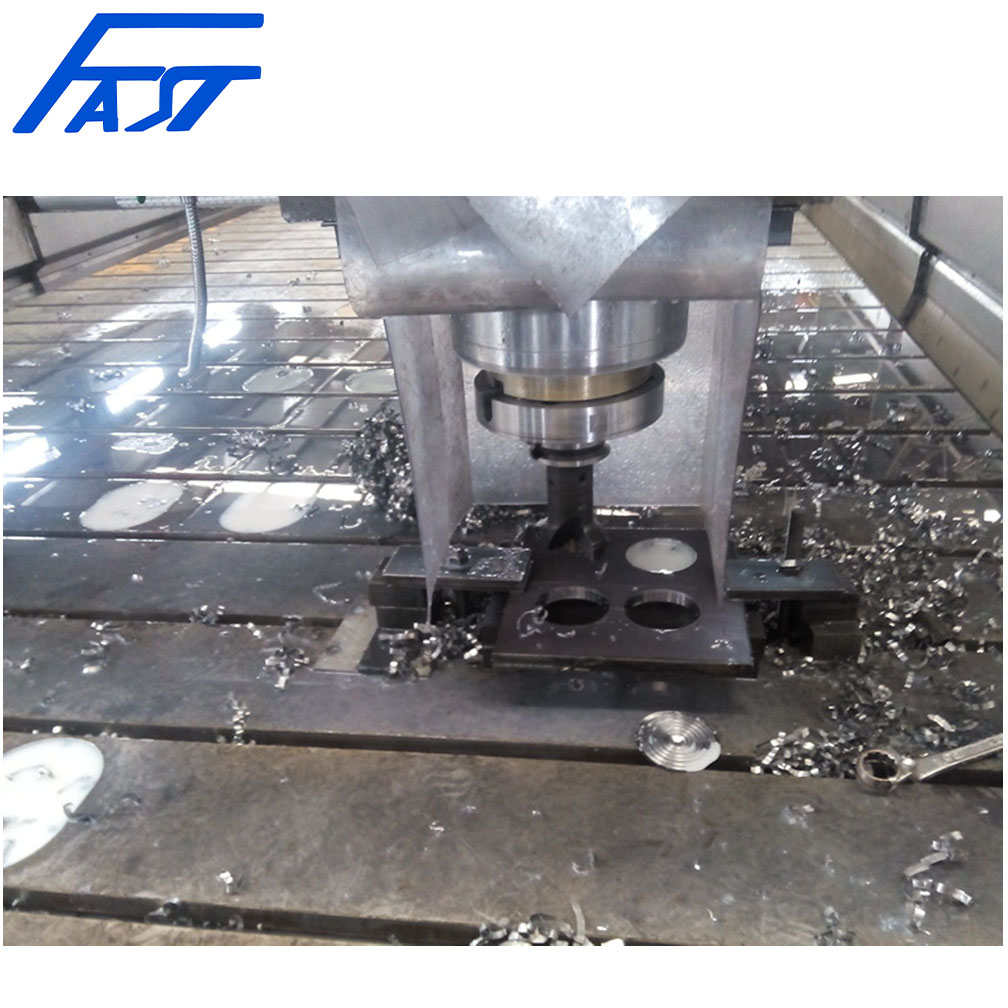

    Milling

    Φ100 Cutter Head, Depth 2mm (Material Q345)

    Max. Drilling Diameter (mm)

    Φ50

    Φ50

    Φ50

    Φ50

    Φ60

    Drilling power head Quantity

    1

    1 OR 2

    2

    2

    2

    Main Axes Taper Hole

    BT50

    Rotating Speed of Drilling Spindle (r/min)

    30~2500

    30~2500

    30~2500

    30~2500

    30~2500

    Motor Power of Drilling Spindle (kW)

    22

    22
    OR 22*2

    22*2

    22*2

    22*2

    Longitudinal Movement(X-axis) Max Stroke (mm)

    2000

    3000

    4000

    5000

    6000

    X-axis Movement Speed (m/min)

    0~8000

    Lateral Movement(Y axis) Max. Distance (mm)

    2000

    3000

    4000

    5000

    6000

    Y-axis Movement Speed (m/min)

    0~8000

    Vertical Max. Stroke of Z-axis

    500

    500

    500

    500

    500

    Feeding Speed of Z axis

    0~4000

    Positioning accuracy

    ≤0.04

    Repeat positioning accuracy

    ≤0.03

    Number of clip cleaner

    2

    Speed of Clip Removal (m/min)

    1

    Clip Removal Motor Power(kW)

    20.75

    Outline Dimension L*W*H(mm)

    4600*4200*3900

    5800*5520*3900

    7600*6540*3900

    9200*8500*4300

    9680*9520*6000

    Machine Weight(T)

    24

    35

    56

    70

    75

    All of these models can be customized according to customer requirements.
