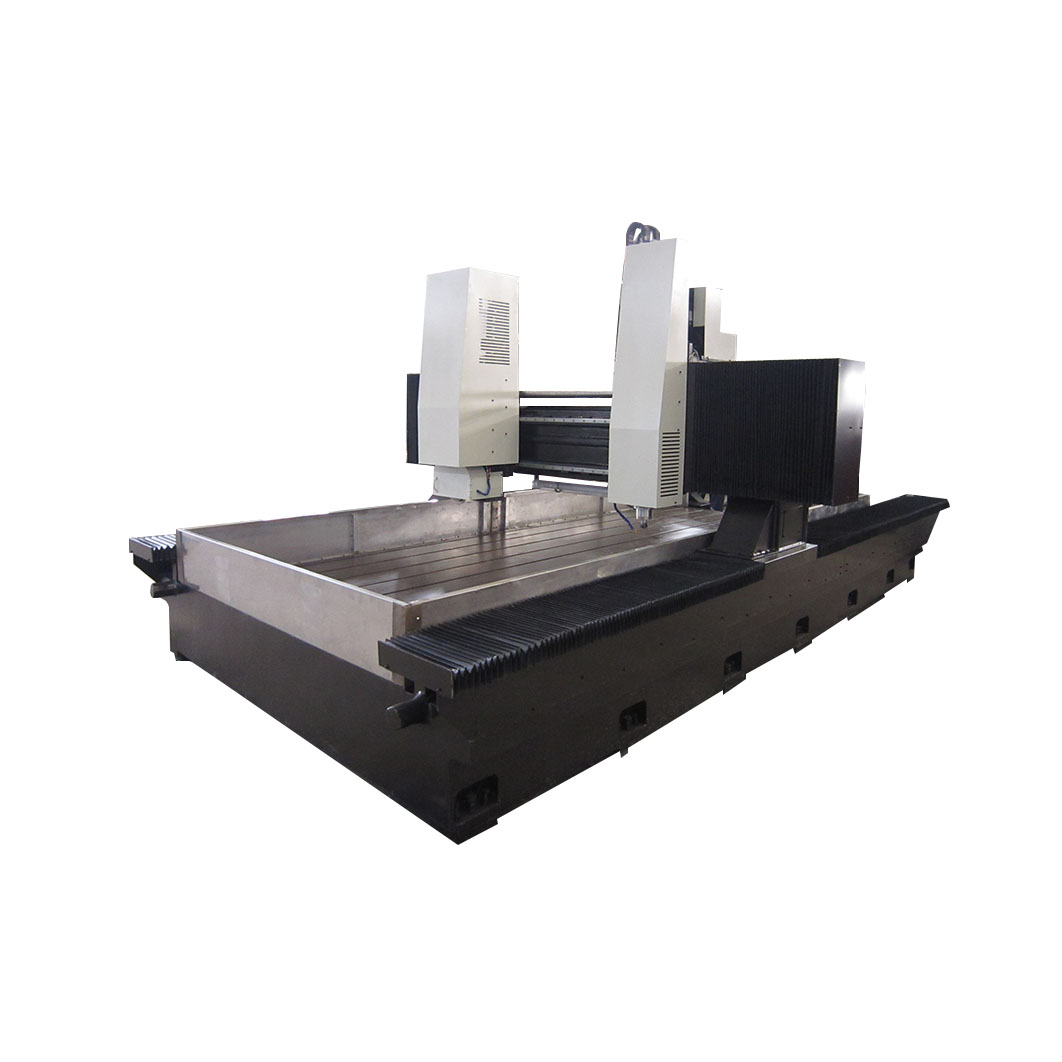

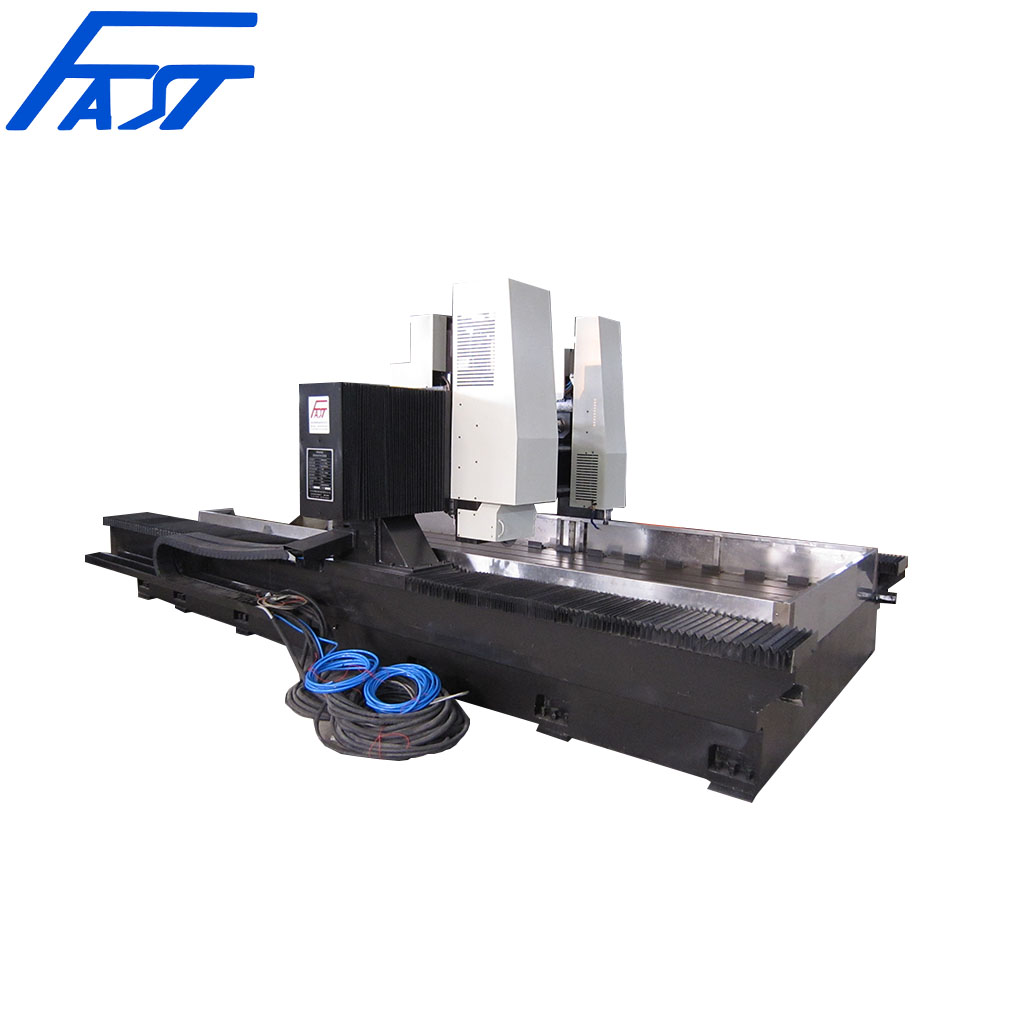

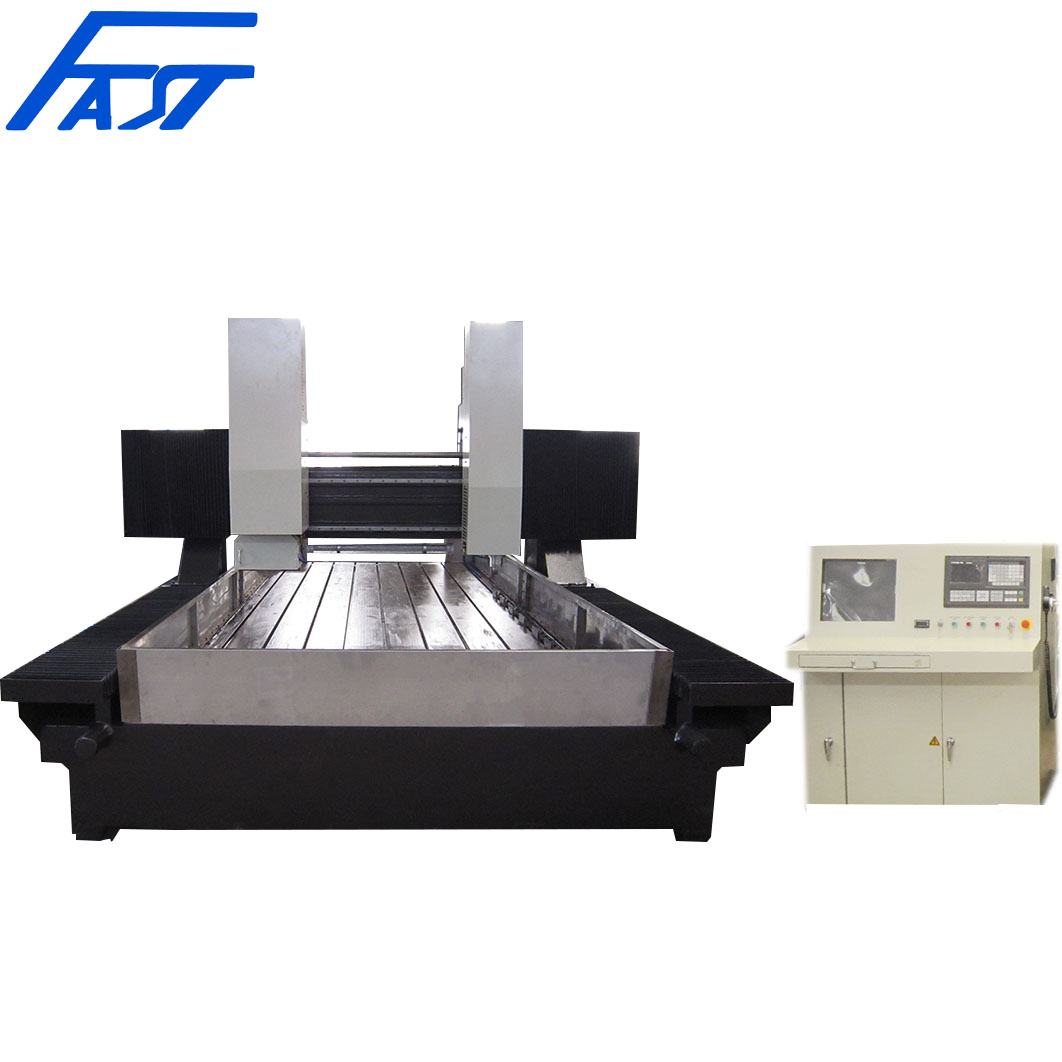

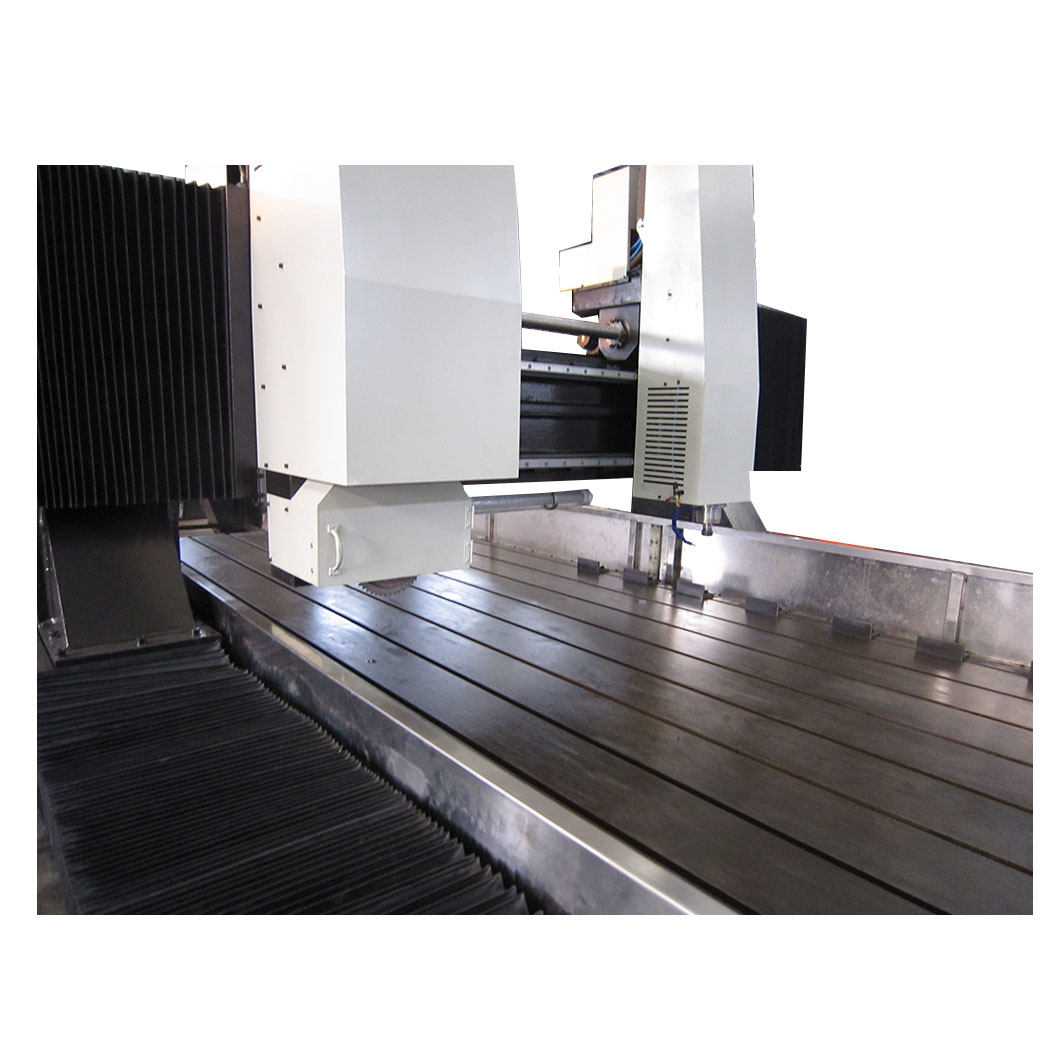

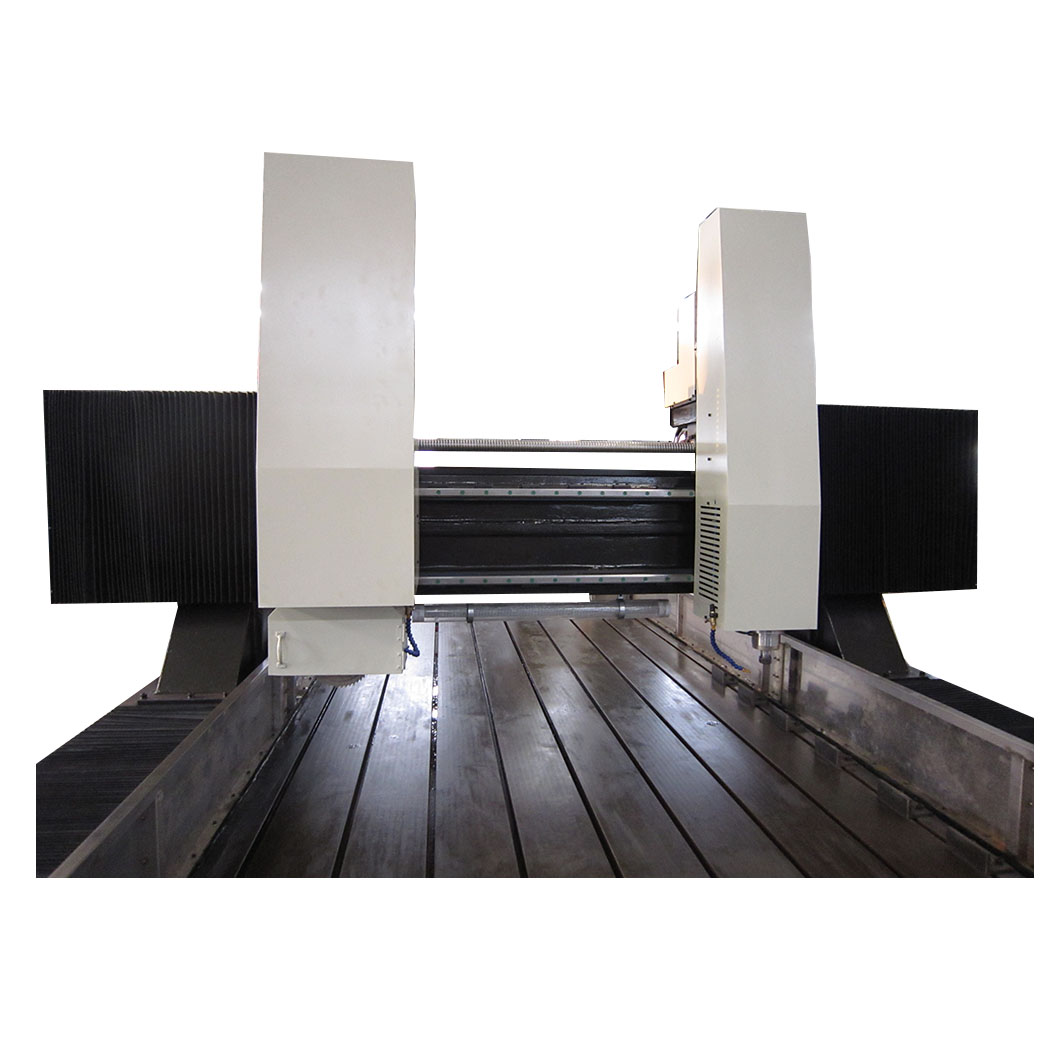

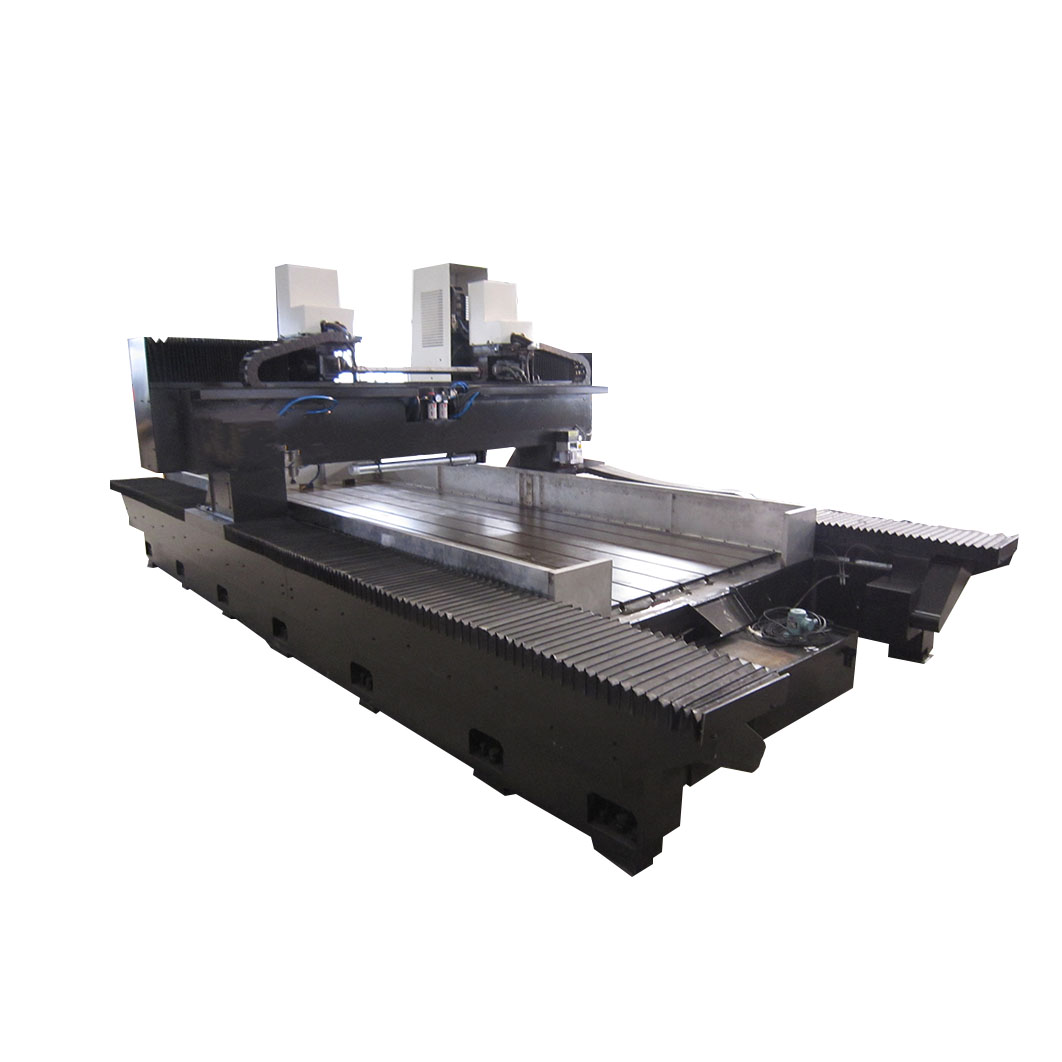

CNC DRILLILNG MILLING MACHINE FOR TUBESHEET/ FLANGE

Category:PLATE DRILLING MILLING MACHINE

Product specifications:

Drilling machine, CNC drilling milling machine , Gantry movable plate drill, Gantry movable cnc plane drilling milling machine for iron tower


  • CNC DRILLILNG MILLING MACHINE FOR TUBE SHEET/ FLANGE


    TECHNICAL DATA

    Model

    PZX1220

    PZX1630

    PZX1640

    PZX2020

    PZ2040

    PZX3030

    Processing capacity

    Work range

    1200×2000

    1600×3000

    1600×4000

    2000×2000

    2000×4000

    3000×3000

    Length×Width(mm)

    Distance between the bottom of the spindle to work table ( mm)

    150-550

    150-550

    150-550

    150-650

    150-650

    150-650

    Max drilling diameter (mm)

    Φ40

    Φ40

    Φ40

    Φ40 orΦ50

    Φ40 or Φ50

    Φ40 or Φ50

    Milling capacity (mm)

    Φ100×3

    Φ100×3

    Φ100×3

    Φ100×3 or

    Φ100× or

    Φ100×3 or

    Φ200×5

    Φ200×5

    Φ200×5

    Φ100×3 or

    Φ100×3 or

    Φ100×3 or

    Φ200×5

    Φ200×5

    Φ200×5

    Work table

    Width of T-slot(mm)

    22

    28

    28

    28

    28

    28

    Drilling and milling power head

    CNC axis

    4

    4

    4

    4

    4

    4

    Quantity

    1

    1

    1

    2

    2

    2

    Spindle taper hole

    BT40

    BT40

    BT40

    BT40 or BT50

    BT40 or BT50

    BT40 or BT50

    BT40 or BT50

    BT40 or BT50

    BT40 or BT50

    Rotating speed of spindle (r/min)

    30-1000

    30-1000

    30-1000

    30-1000

    30-1000

    30-1000

    Motor power of spindle(kw)

    11

    11

    11

    11 or 22

    11 or 22

    11 or 22

    Max stroke(mm)

    2000

    3000

    4000

    2000

    3000

    3000

    Longitudinal movement X axis

    Movement speed of X axis(mm/min)

    0—6000

    0—8000

    0—8000

    0—8000

    0—8000

    0—8000

    Servo motor power of X axis(kw)

    2×2

    2×2

    2×2

    3×2 or 5×2

    3×2 or 5×2

    3×2 or 5×2

    Transverse movement stroke Y axis mm

    Max stroke(mm)

    1200

    1600

    1600

    2000

    3000

    3000

    Movement speed of  Y axis(mm/min)

    0—8000

    0—8000

    0—8000

    0—8000

    0—8000

    0—8000

    Servo motor power of Y axis(kw)

    3

    3

    3

    3 or 5

    3 or 5

    3 or 5

    Vertical stroke of power head Z axis mm

    Max stroke(mm)

    400

    400

    400

    500

    500

    500

    Feed speed of Z axis(mm/min)

    0—4000

    0—4000

    0—4000

    0—4000

    0—4000

    0—4000

    Servo motor power of Z axis

    3

    3

    3

    3 or 5

    3 or 5

    3 or 5

    Positioning accuracy

    XYZ axis (mm)

    ≤0.05

    ≤0.05

    ≤0.05

    ≤0.05

    ≤0.05

    ≤0.05

    Re-positioning accuracy

    ≤0.03

    ≤0.03

    ≤0.03

    ≤0.03

    ≤0.03

    ≤0.03

    Optional item

    Right angle milling head or universal milling head can realize 5 face machining.




    FAQ

    · Are you a Manufacturer or a Trading company

    Manufacturer + trading company integration),focusing on CNC machines for 18 years. Integration with DesignMachining and Assembly.

    Exporting to RussiaUSAAustraliaVietnamBrazilEthiopiaTunisiaBulgariaIndiaIndonesiaJordanPakistanetc

    · Do you have stock product ready to delivery

    In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.

    · After an order is placedwhen to delivery

    General 30 working days. It depends on specific items and item quantities.

    Please check with sale manager for exact delivery time.

    · What is the Warranty with After-sale Services

    12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.

    After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.

    · What about the product quality

    Each machine must be carried out quality examination and test when shipping and delivery goods.
