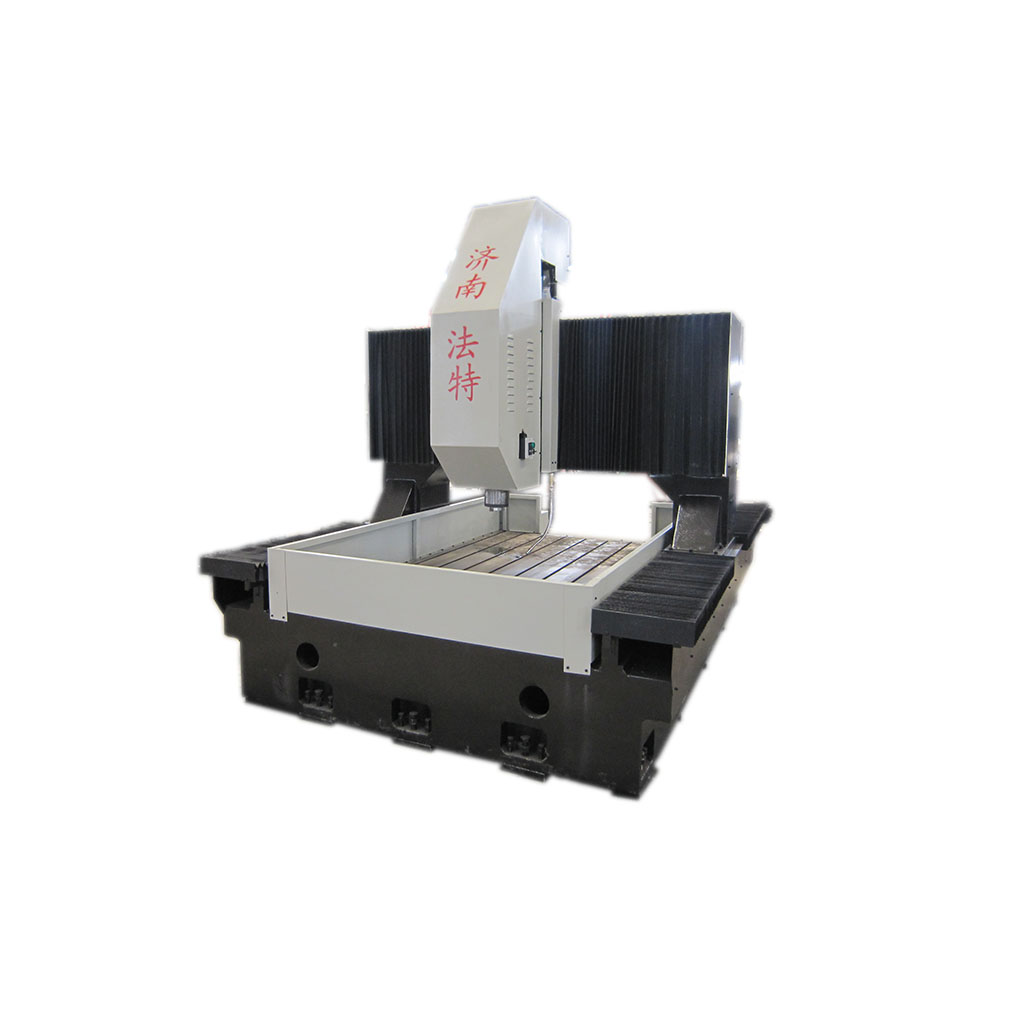

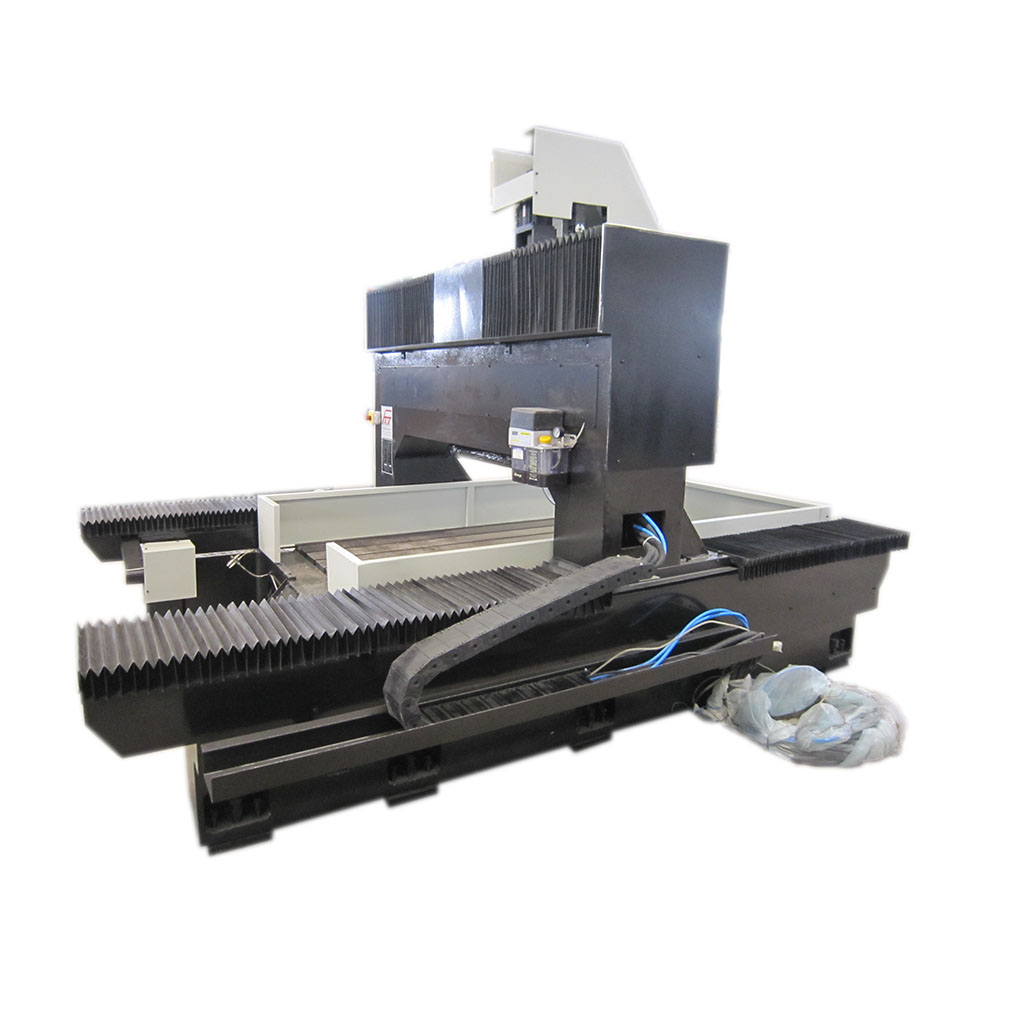

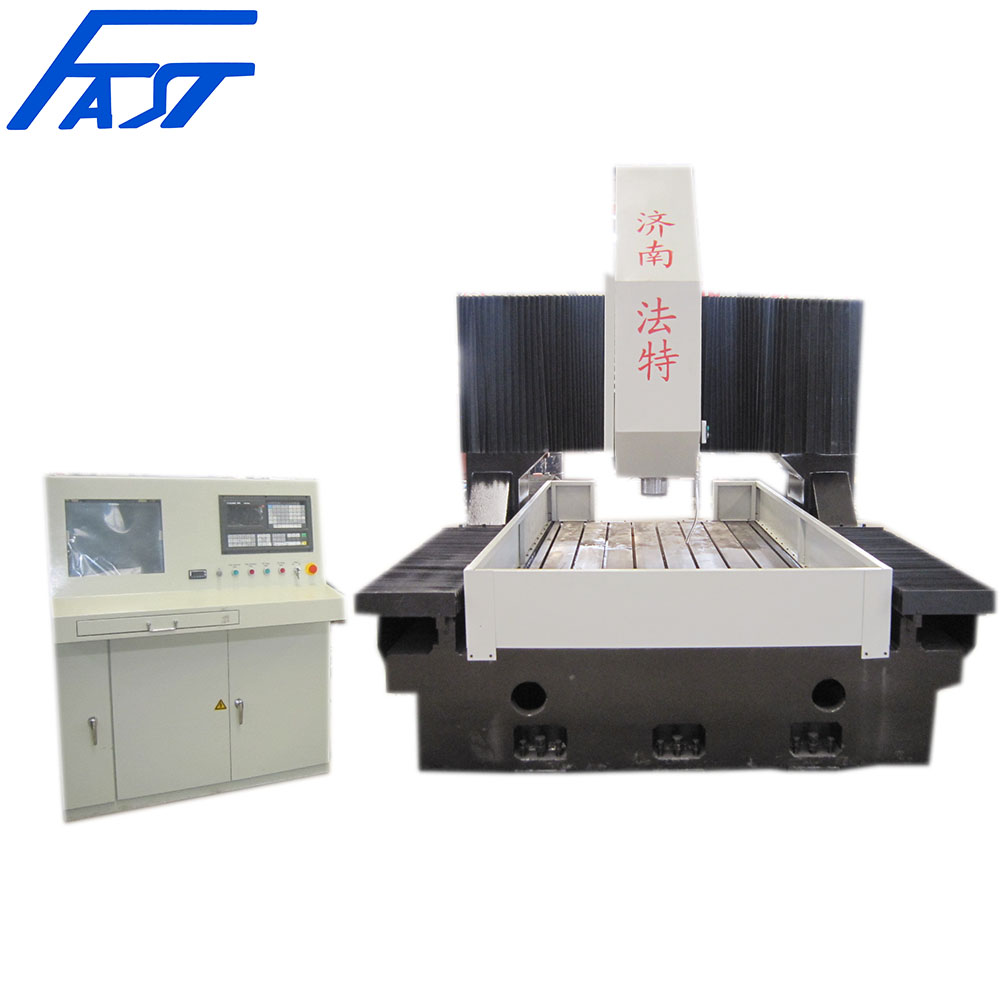

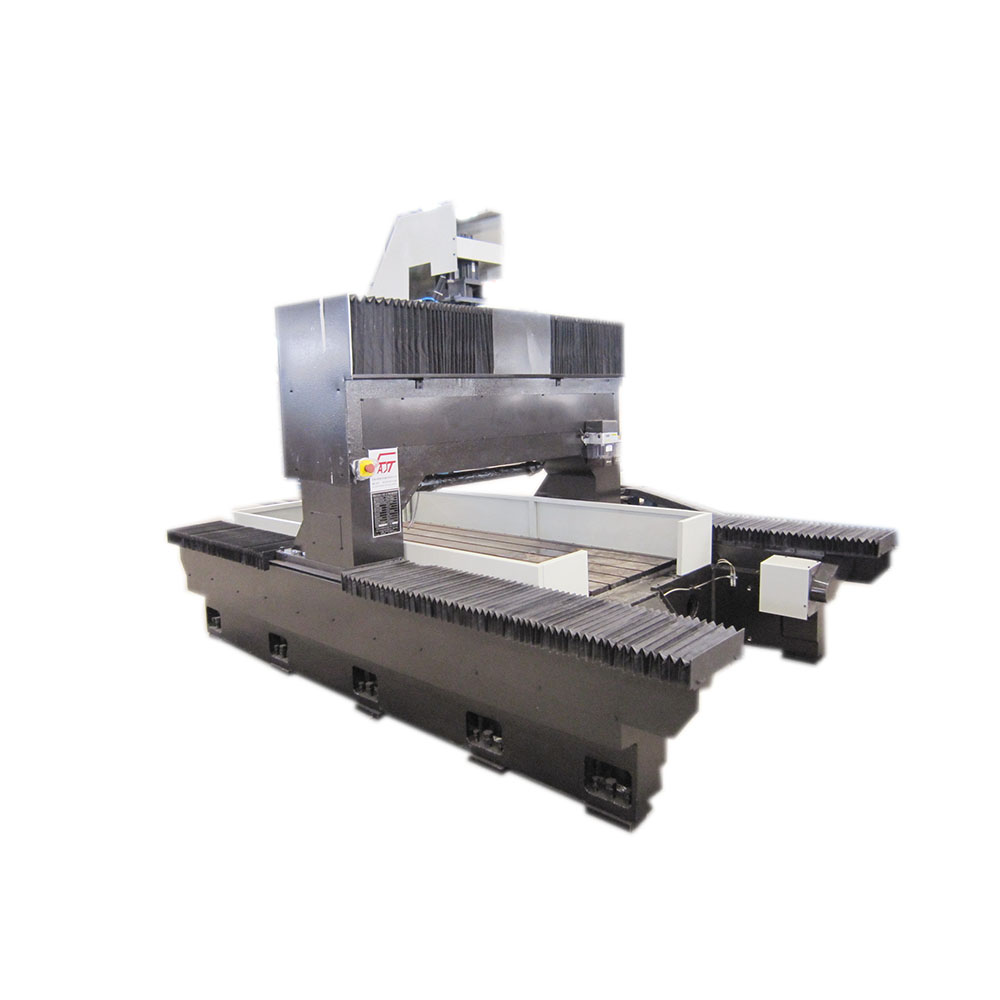

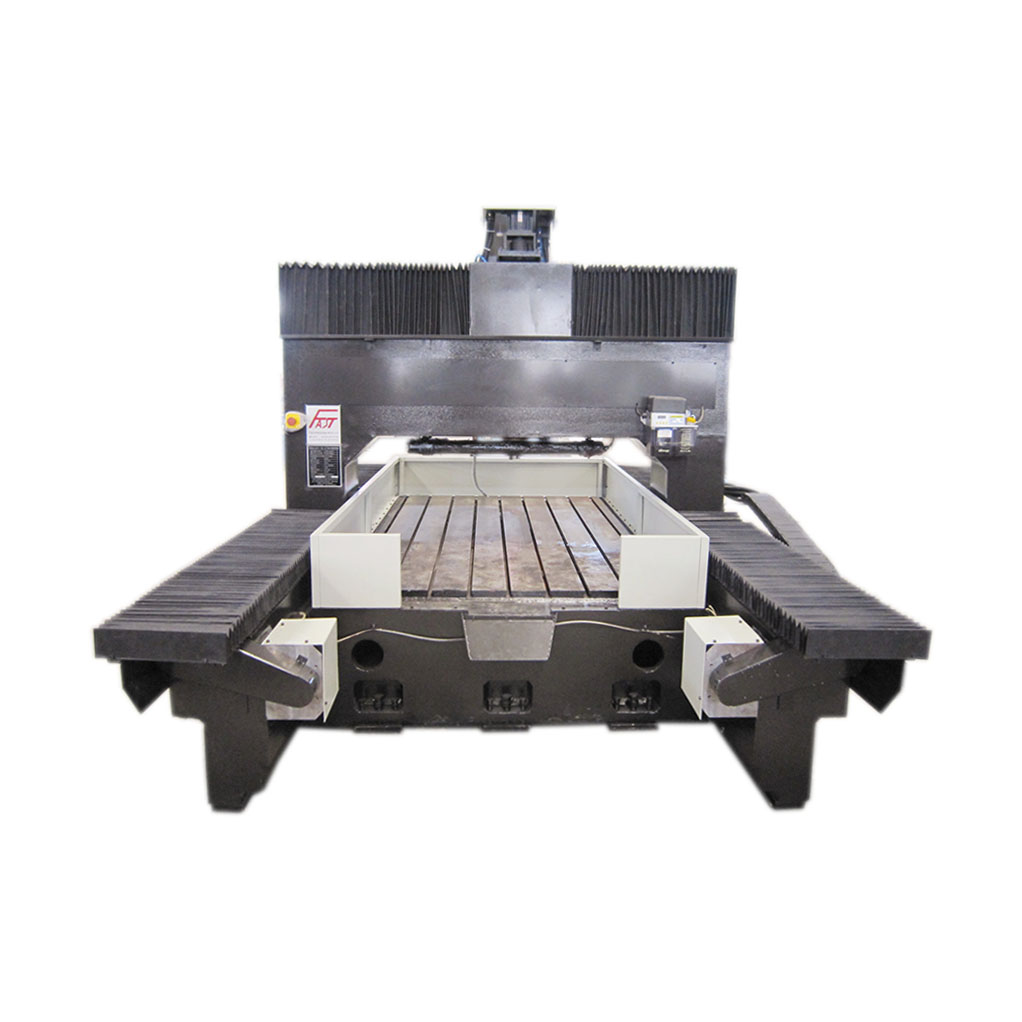

CNC plate Drilling and Milling Tapping Machine
  • CNC plate Drilling and Milling Tapping Machine
CNC plate Drilling and Milling Tapping Machine

Category: CNC DRILLING& MILLING

Product specifications:

  • Performance Parameter

    Machine Model

    Item

    PZG1220

    PZG1630

    PZG2040

    Processing Capability

    Maximum Workpiece Processing Range(mm)

    1200×2000

    1600×3000

    2000×4000

    Drilling Diameter(mm)

    Ф20

    Ф40

    Ф40

    Tapping Diameter(mm)

    M14

    M24

    M24

    Milling Capacity (mm)

    Ф80×3

    Ф100×3

    Ф100×3

    Drilling Power Head Form

    CNC Drilling and Milling Power Head

    Quantity of Drilling Power Head

    1

    1

    1

    Technical parameters of Spindle

    Spindle Taper

    BT40

    BT40

    BT40

    Rated Output Torque of Spindle (Nm)

    72

    140

    140

    Spindle Speed(r/min)

    30—1500

    30—1500

    30—1500

    Servo Motor Power of Spindle (Kw)

    5.5

    11

    11

    Gantry Longitudinal movement(X axes)

    Maximum Stroke (mm)

    2000

    3000

    4000

    X Axes Feed-in Speed(mm/min)

    0-8000

    0-8000

    0-8000

    Servo Motor Power of X Axes (kw)

    1.5×2

    1.5×2

    1.5×2

    Maximum Stroke (mm)

    1200

    1600

    2000

    Power Head Horizontal Movement

    Y Axes Feed-in Speed (mm/min)

    0-8000

    0-8000

    0-8000

    (Y axes)

    Servo Motor Power of Y Axes (kw)

    1.5

    2

    2

    Drilling Power Head(Z axes)

    Vertical Stroke (mm)

    300

    300

    300

    Z Axes Feed-in Speed(mm/min)

    0-4000

    0-4000

    0-4000

    Servo Motor Power of Z Axes (kw)

    2

    2

    2

    Quantity of CNC Spindle

    5

    5

    5

    Precision Of Machine

    Positioning Accuracy (mm)

    ≤0.05(Whole Course)

    ≤0.05(Whole Course)

    ≤0.05(Whole Course)

    Repeat Accuracy(mm)

    ≤0.05(Whole Course)

    ≤0.05(Whole Course)

    ≤0.05(Whole Course)

    Options

    Rectangular or universal Angle milling head, 5 surface processing.
